Gct (1 x USB Connector ) USB Connector, Micro USB Type B, USB 2.0

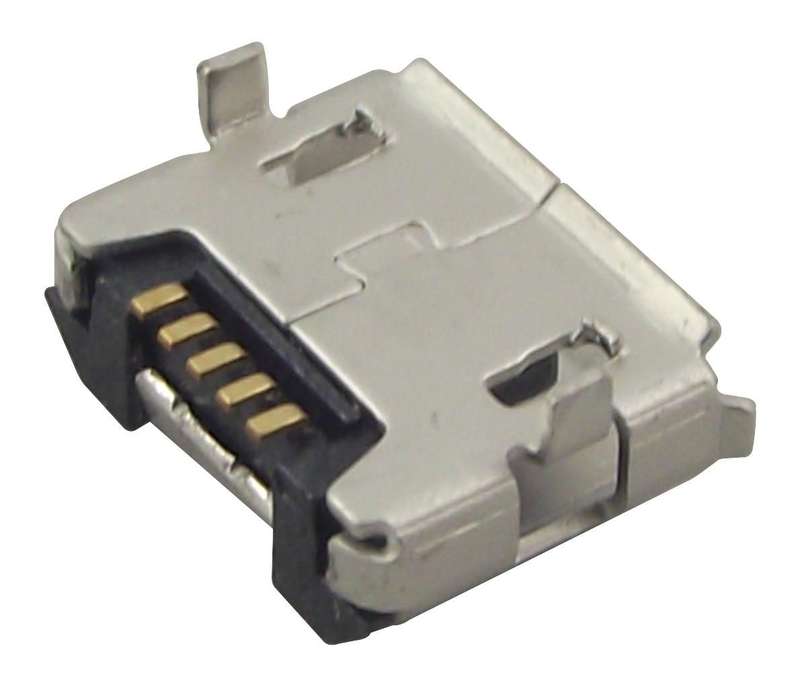

USB Connector, Micro USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount,Right AngleProduct OverviewThe USB3135-30-A is a 5-contact type B Micro USB 2.0 Horizontal Receptacle with30µinch gold plated copper alloy contact terminal, a black UL94V-0 LCP housingand stainless steel metallic shell. The USB3135 series connector has surfacetype PCB mount, side entry type, top mount position, mating face lead in andouter shell stake.No locating peg2.47mm Profile1.0A Signal (Pins 2, 3, 4), 1.8A power (Pins 1, 5) current rating100V Voltage rating30mR Maximum contact resistance1000MR Minimum insulation resistance500VAC for one minute Dielectric withstanding voltage10,000 cycles DurabilityApplicationsIndustrial, Consumer ElectronicsProduct InformationUSB Connector Type: Micro USB Type BUSB Standard: USB 2.0Gender: Receptacle (View Associated Connectors)No. of Positions: 5WaysConnector Mounting: Surface MountOrientation: Right AngleContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: -
