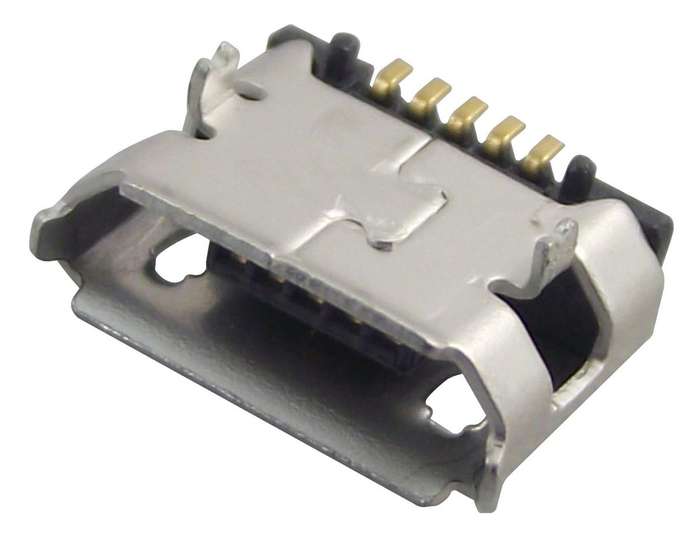

Gct (USB3080-30-01-A) USB Connector, Micro USB Type B, USB 2.0, Receptacle

USB Connector, Micro USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount,Right AngleProduct OverviewThe USB3080-30-01-A is a 5-contact type B Micro USB 2.0 Horizontal Receptaclewith 30µinch gold plated copper alloy contact terminal, a black UL94V-0 LCPhousing and stainless steel metallic shell. The USB3080 series connector hassurface type PCB mount, side entry type, bottom mount position and inner shellstake.With locating peg2.35mm Profile1.0A Signal (Pins 2, 3, 4), 1.8A power (Pins 1, 5) current rating100V Voltage rating30mR Maximum contact resistance1000MR Minimum insulation resistance250VAC/minute Dielectric withstanding voltage10,000 cycles DurabilityApplicationsIndustrial, Consumer ElectronicsProduct InformationUSB Connector Type: Micro USB Type BUSB Standard: USB 2.0Gender: Receptacle (View Associated Connectors)No. of Positions: 5WaysConnector Mounting: Surface MountOrientation: Right AngleContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: -
