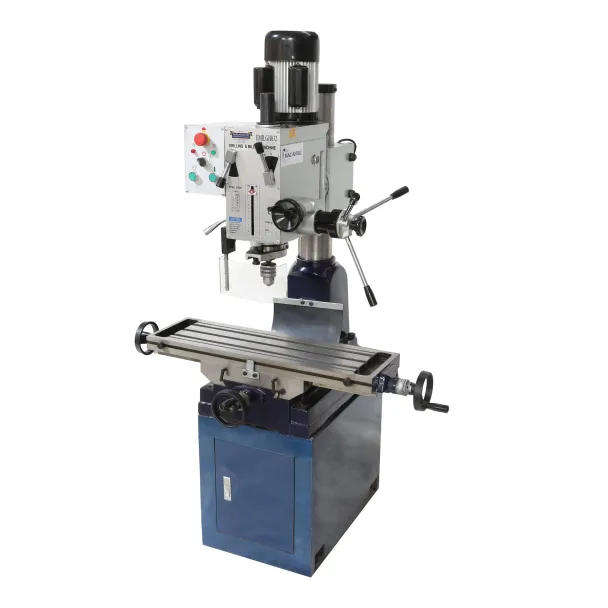

Geared Head Milling Machine with Round Column 32 mm Capacity

Geared Head Milling Machine with Round Column 32 mm Capacity

Designed for small engineering workshops, this geared head milling machine offers precision milling, drilling, surface cutting, and tapping capabilities. Powered by a 0.75 KW (1 HP) motor, it features a bi-directional tapping function and a heat-treated head table for durability. The worm gear and hand-feed system provide precise control, and the swivel head uses precision ground gears for smooth operation. Compatible with MT3 or R8 spindle tapers, it includes extensive table travel for versatile machining tasks.

Note: Stand sold separately as an optional accessory.

Features

• 0.75 KW (1 HP) motor ideal for precise milling and drilling

• Bi-directional tapping for efficient threading

• Heat-treated head table for increased longevity

• Worm gear with hand-feed for accurate adjustments

• Swivel head with precision ground gears for smooth movement

• MT3 or R8 spindle taper compatibility

• Large 700 x 240 mm table with 175 mm forward/backward and 400 mm left/right travel

• Multiple spindle speeds suited for various materials

• Standard accessories included for immediate use

Specifications

• Power Output: 0.75 KW (1 HP)

• Max Drilling Capacity: 32 mm

• Max Face Mill Capacity: 80 mm

• Max End Mill Capacity: 28 mm

• Max Tapping Capacity: M12

• Max Spindle Stroke: 130 mm

• Distance Spindle Axis to Column: 260 mm (±90° swivel)

• Distance Spindle Nose to Table: 450 mm

• Spindle Taper: MT3 or R8

• Table Working Area: 700 x 240 mm

• Table Travel: Forward/Backward 175 mm, Left/Right 400 mm

• Spindle Speeds (4-pole motor):
  50 Hz: 80, 145, 260, 375, 710, 1250 RPM
  60 Hz: 95, 175, 310, 450, 850, 1500 RPM

• Motor Type: ZAY7032FG

• Height without Stand: 1020 mm

Standard Accessories

• Double End Wrench

• Allen Wrenches (3, 4, 5, 6 mm)

• 6" Flat Screwdriver

• Drill Stock

• Wedge

• Drawbar and Drawbar Washer

Optional Accessories

• 16 mm Drill Chuck

• 76 mm Face Milling Cutter

• 90/125 mm Parallel Vice

• Mill Chuck

• Machine Stand

• End Milling Cutters (2 - 20 mm)

• Twist Drills (1 - 31.5 mm)

• XTRA Auto Feed (XY axis)
