GEDORE - DMSE 200 Dremaster 2641461

DMSE 200 Dremaster

DMSE

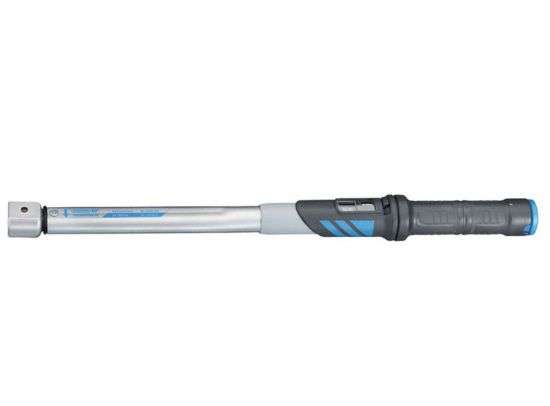

TORQUE WRENCH DREMASTER®
20-400Nm / 15-300lbf·ft
Code No. : Nm lbf·ft 9 Scale ring y 0
2641445 DMSE 100 9x12 20-100 15-75 5 N·m 0,5 N·m 398.5 1.00
2641453 DMSE 150 9x12 30-150 22-110 10 N·m 1 N·m 489.5 1.16
2641461 DMSE 200 14x18 40-200 30-150 10 N·m 1 N·m 499.5 1.25
2641488 DMSE 300 14x18 60-300 45-220 10 N·m 1 N·m 590.4 1.40
2641496 DMSE 400 14x18 80-400 60-300 10 N·m 1 N·m 677.2 2.00
Use:
For use in all areas of industrial manufacturing.
For controlled nut and bolt tightening.
Features:
Adjustable torque wrench with a spigot end.
For controlled bi-directional tightening.
Interchangeable mushroom head square drive with ball-locking mechanism as per DIN 3120.
In accordance with DIN EN ISO 6789, traceable to national norms.
Lever breaking mechanism with a castor guarantee tactile impulse and audible actuation signals.
Actuation accuracy: +/- 3% tolerance of the scale set to torque.
Sturdy, satin-chrome plated tubular steel construction, with chrome plated ratchet
head and top grade plastic parts.
Ergonomically shaped, two-component plastic grip with calibration aid.
Double scale Nm and lbf.ft behind window with magnifying effect.
Additional micrometer scale with a Nm graduation of 0.1, 0.25, 0.5 or 1Nm.
Supplied with a calibration certificate.
Unique serial number for traceability
