DVI 28Z Dremoplus
DVI-20L/Z & DVI-28L/Z

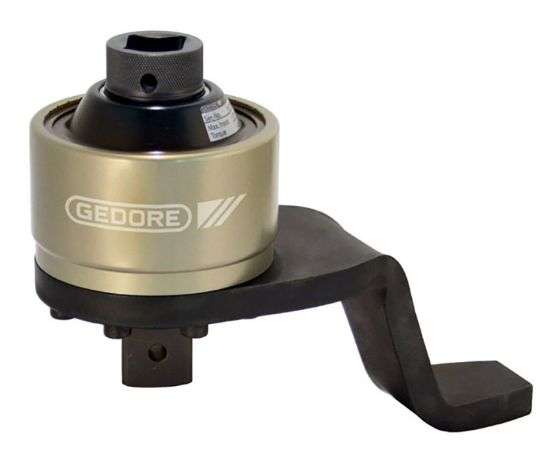

TORQUE MULTIPLIER DREMOPLUS ALU
2000-2800Nm / 1500-2050lbf·ft
Particularly suitable for:
Industry, construction sites, car and truck garages, agricultural technology, construction machinery.
Bridge, aircraft and railway construction, ship building, refineries.
Machinery and plant engineering, maintenance.
Features:
Mechanical hand torque multiplier for controlled screw tightening
and unloosening screw connections.
With a single-stage planet gear.
High-performance aluminium housing.
Multiplication at the ratio of 1:4, 1:5.5.
Guaranteed accuracy: Better than +/- 3% tolerance.
For operation in combination with a torque wrench.
2 models for maximum load in the range between maximum 2000Nm and 2800Nm.
Z model: with Z-form, offset reaction arm of Chrome Vanadium steel.
L model: with L-form straight reaction arm - with adjustable reaction square - of lightweight metal.
Output square with drill hole for impact sockets with safety pin and ring.
Scope of delivery:
Torque Multiplier DREMOPLUS ALU.
With firmly integrated reaction arm of an Z- or L-form depending on model.
Delivery in sturdy shipping case with foam insert.
Factory test certificate and setting table.
Detailed technical information
is available on request.
