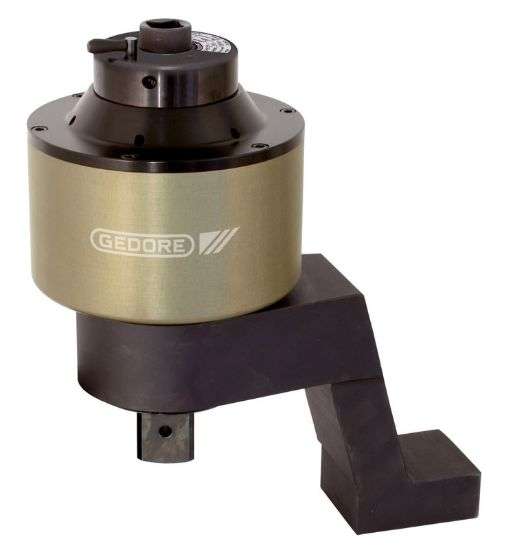

GEDORE -DVV - 130ZRS Dremoplus 2653141

DVV 130ZRS Dremoplus

DVV-60ZRS - DVV-130ZRS
TORQUE MULTIPLIER DREMOPLUS ALU
6000-13000Nm / 4400-9530lbf·ft
Particularly suitable for:
Machinery and plant engineering.
Cable cars, lifts and masts.
Heavy industry, construction sites.
Bridge construction.
Ship building, aircraft and railway construction.
Refineries, plastics industry.
Power plants of all kinds.
Features:
Mechanical hand torque multiplier for controlled screw
tightening and unloosening screw connections.
With a two-stage planet gear.
High-performance aluminium housing.
Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39.
All models with anti-wind-up ratchet (RS).
With non-destructive Slipper overload safety mechanism
for gear protection - clockwise and anticlockwise.
Z-form, offset reaction arm depending on model made of Chrome Vanadium steel.
Can be optionally retrofitted with L-form straight reaction arm
- with adjustable reaction arm - of lightweight metal.
Guaranteed accuracy: Better than +/- 3% tolerance.
For operation in combination with a torque wrench.
4 models for maximum load in the range between maximum 6000Nm and maximum 13000Nm.
Output square drive with a drill hole for sockets or
impact sockets with safety pin and ring.
Scope of delivery:
Torque Multiplier DREMOPLUS ALU
With Z-form offset reaction arm
Delivery in sturdy shipping case with foam insert
Factory test certificate and setting table
Detailed technical information is available on request
