GEDORE -DVV - 13Z Dremoplus 2653370

DVV 13Z Dremoplus

DVV-13ZG
DVV-13Z
DVV-13Z

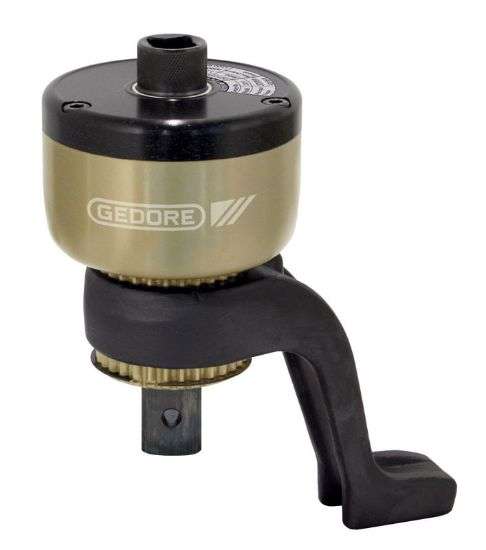

TORQUE MULTIPLIER DREMOPLUS ALU
1300Nm / 950lbf·ft
Particularly suitable for:
Industry, construction sites, car and truck garages, agricultural technology.
Bridge, aircraft and railway construction, ship building, refineries.
Machinery and plant engineering, maintenance.
Features:
Mechanical hand torque multiplier for controlled screw tightening
and unloosening screw connections.
With a single-stage planet gear.
High-performance aluminium housing.
With Z-form offset reaction arm of Chrome Vanadium steel.
Can be optionally retrofitted with L-form straight reaction arm with adjustable reaction arm
of lightweight metal.
Multiplication at the ratio of 1:5.
Guaranteed accuracy: Better than +/- 3% tolerance.
For operation in combination with a torque wrench.
1 model for a maximum load of around a maximum 1300Nm.
Also available as set (No. DVV-13ZG) with three different impact sockets sizes 27, 30, 32mm.
Output square with drill hole for impact sockets with safety pin and ring.
Scope of delivery:
Torque Multiplier DREMOPLUS ALU.
With Z-form offset reaction arm.
Delivery in sturdy shipping case with foam insert.
Factory test certificate and setting table.
Detailed technical information is available on request.
