Geekcreit 0.96 Inch 7Pin HD Color IPS Screen TFT LCD Display SPI ST7735 Module

New

20 available

R314.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3903

92.56 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651229147

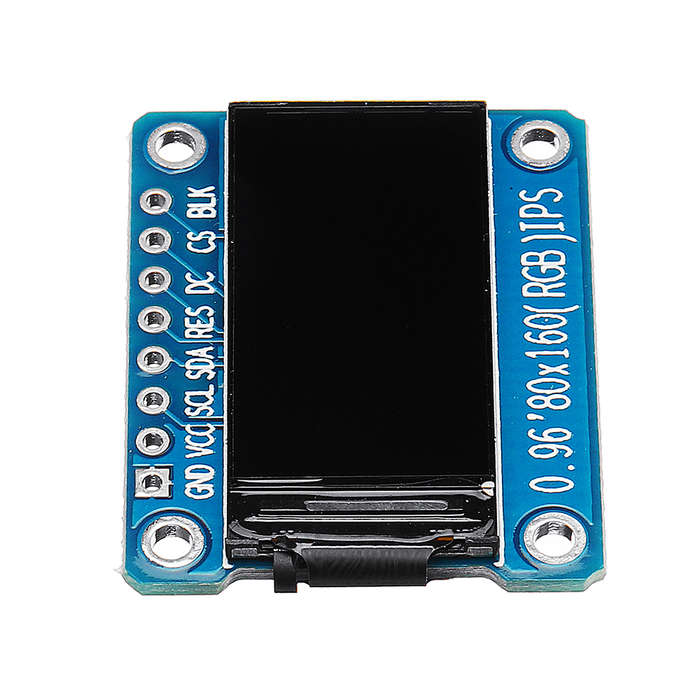

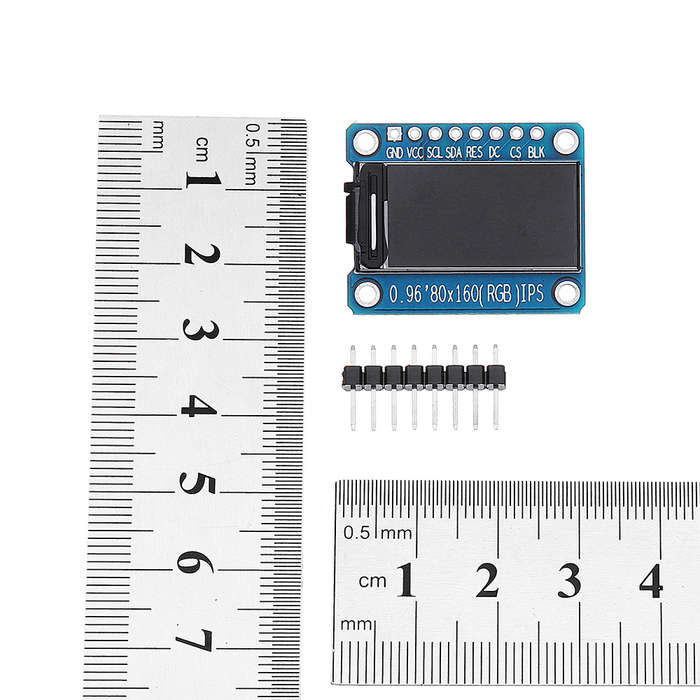

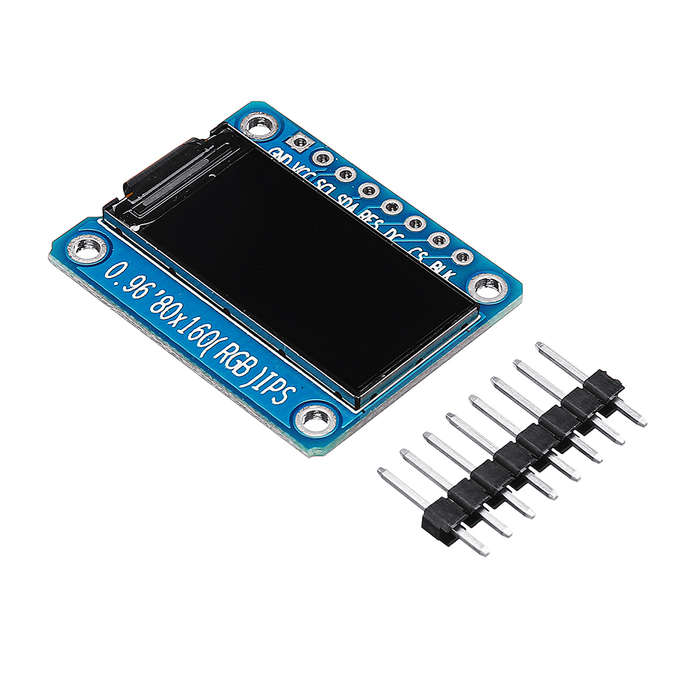

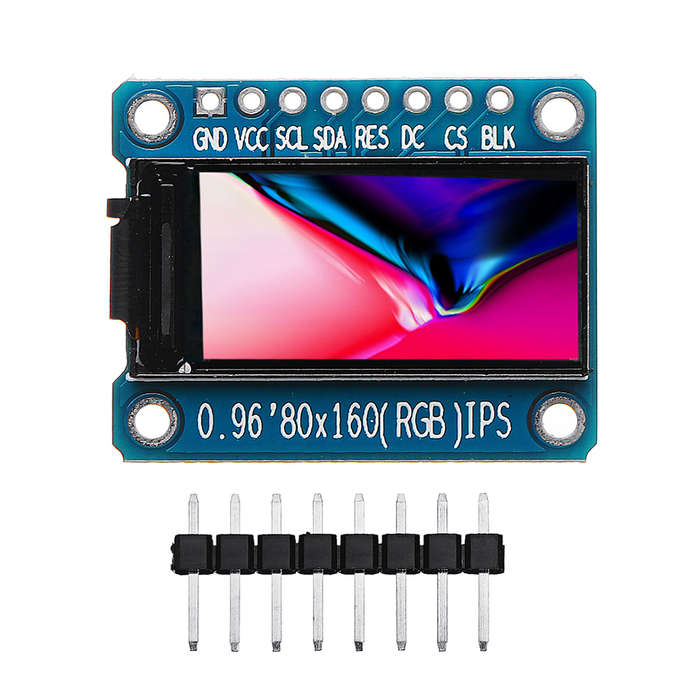

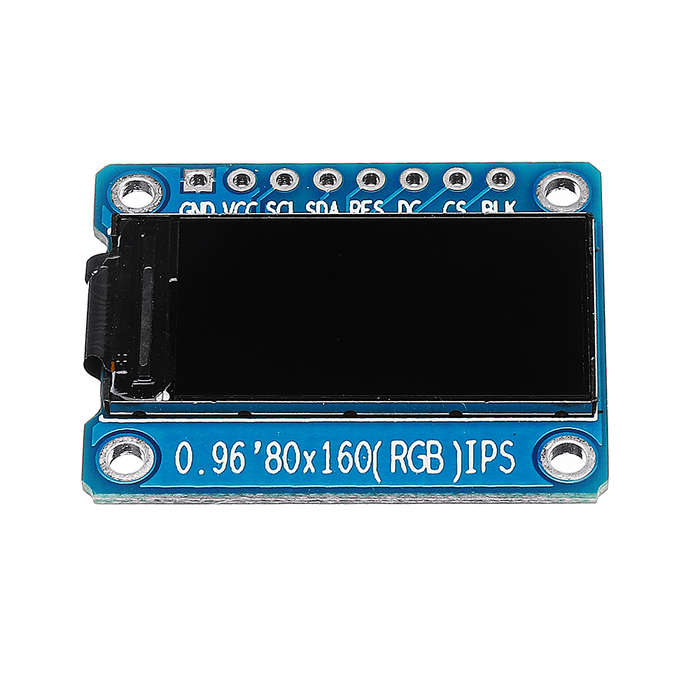

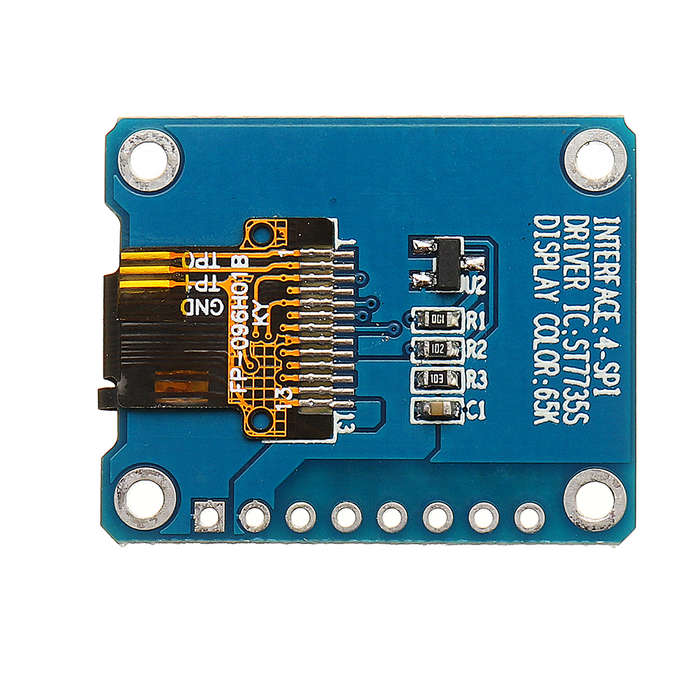

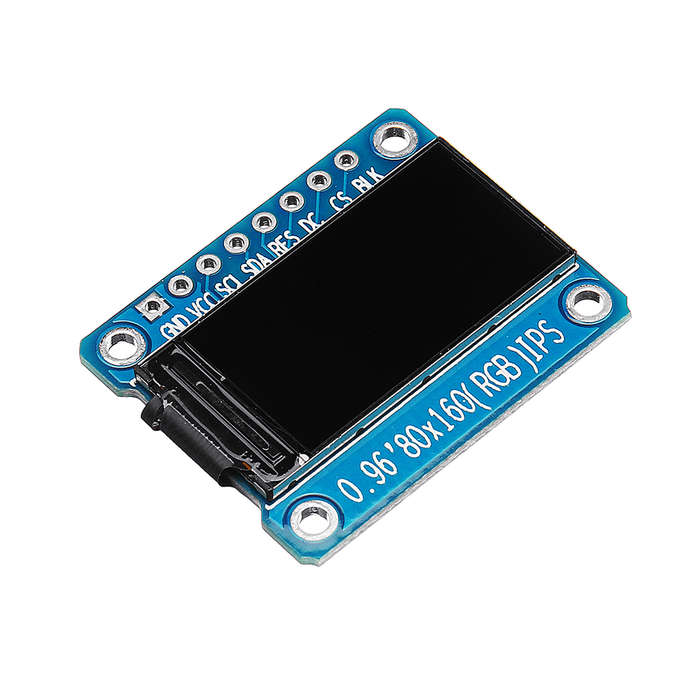

Feature: Size: 0.96 Inch Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen Resolution: 80*160 display, direction can adjust horizontal screen vertical screen Control chip: ST7735 Display area: 10.8 x 21.696mm Physical size: 24 x 30mm Interface type: SPI interface Number of pins: 7 Display color: 65K full color Working temperature: -20~70ﾣC Working voltage: 3.3V Net weight: 5g Interface definition: 1> GND (Power ground) 2> VCC (Power +3.3) 3> SCL (SPI clock line) 4> SDA (SPI data line) 5> RES (LCD reset, LCD needs to be reset once after power-on) 6> DC (SPI data/command selection pin) 7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight) Package includes: 1 x 0.96 Inch HD Color IPS Screen Module
