Manual:

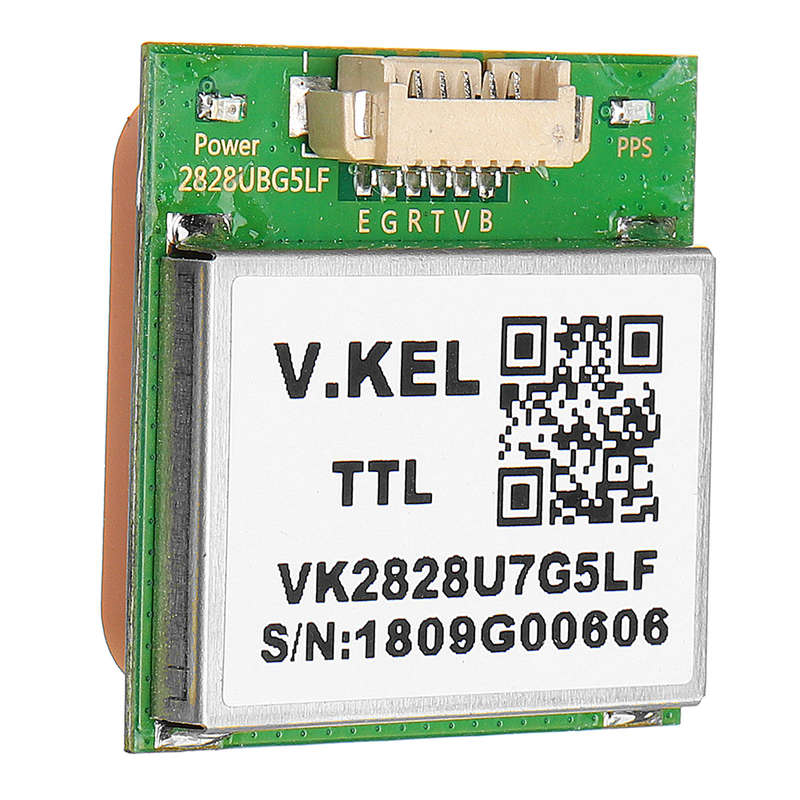

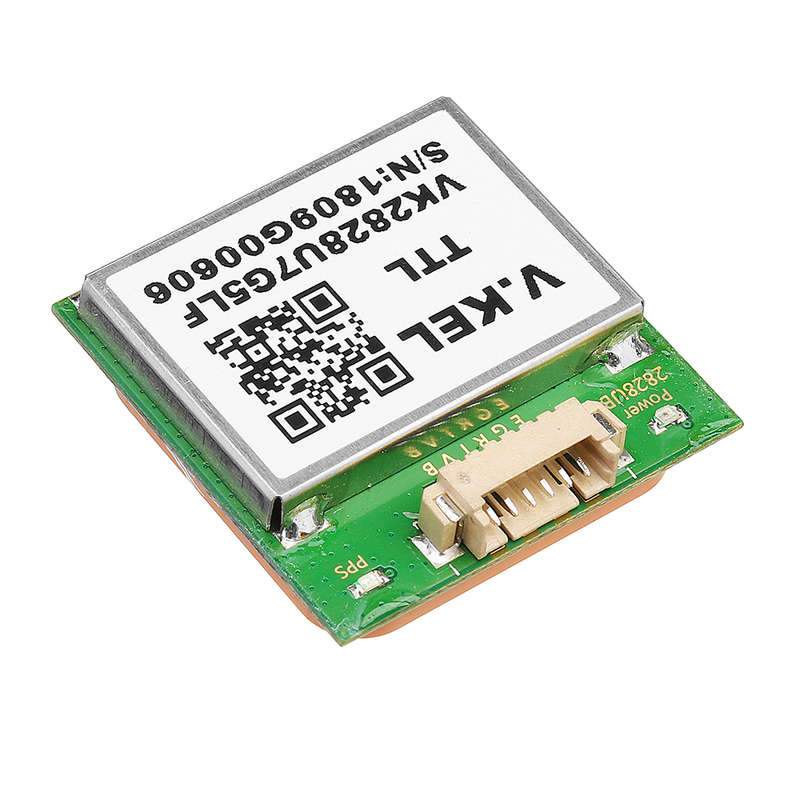

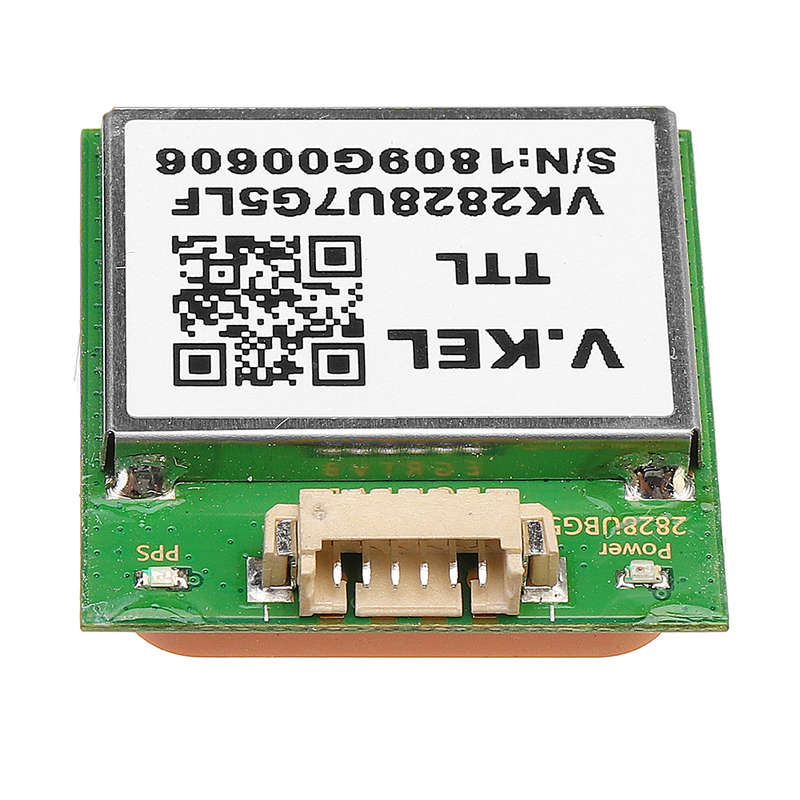

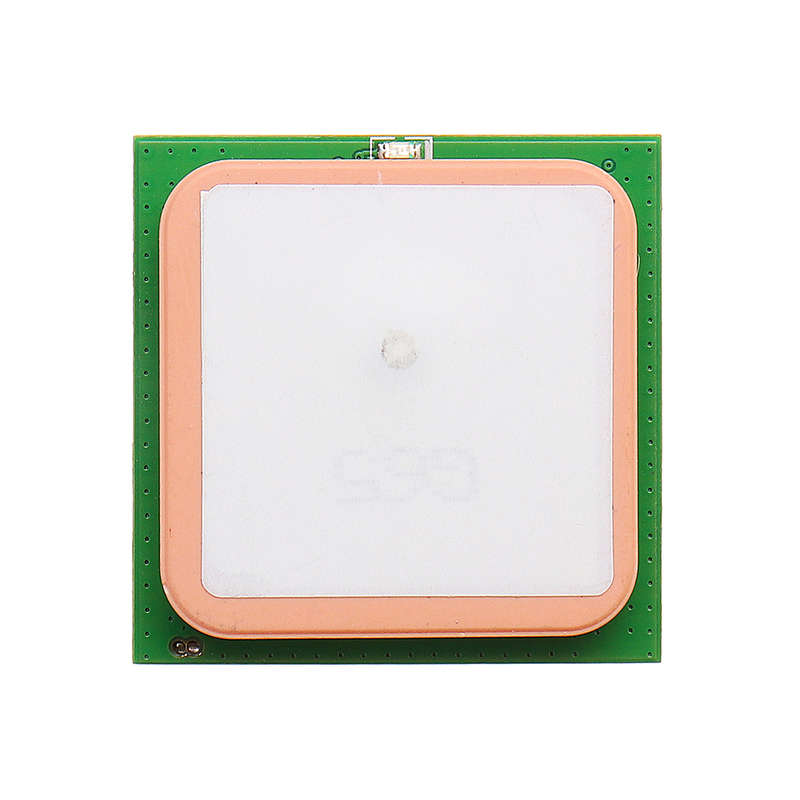

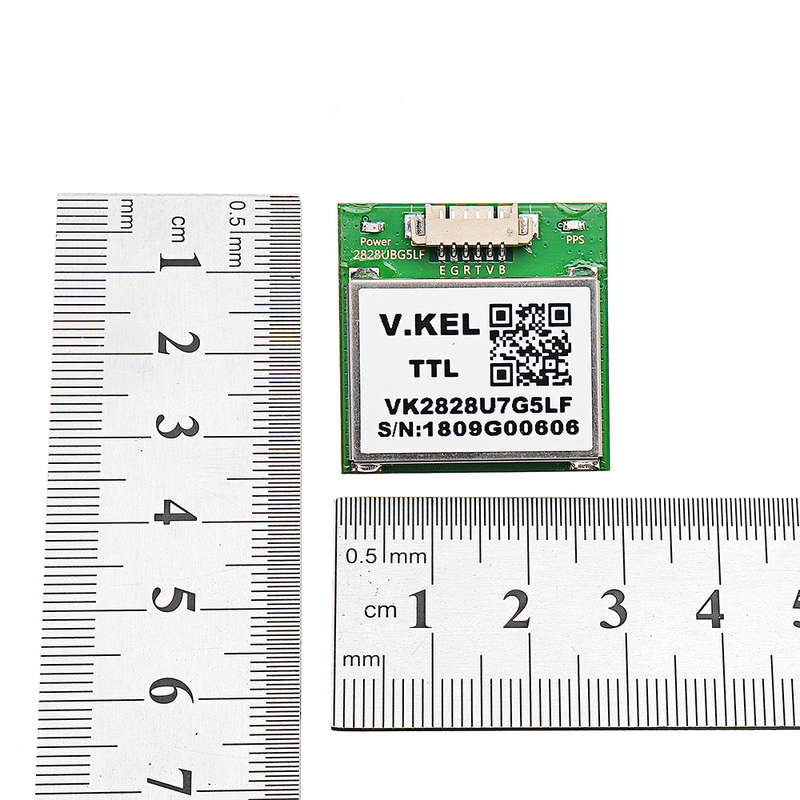

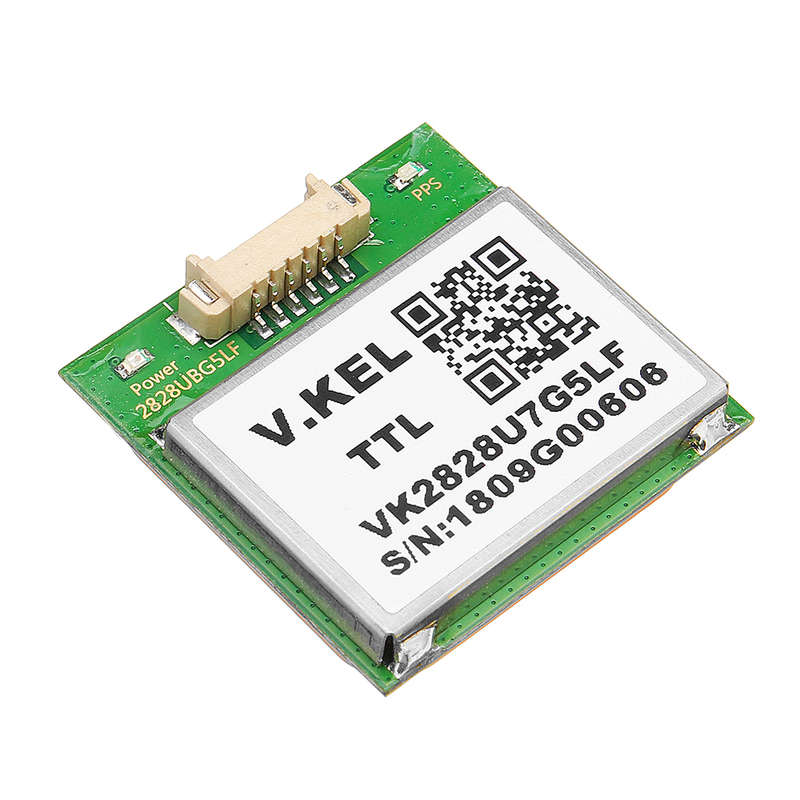

Description: VK2828U7G5LFweight is about 14g, in the same with the specifications of the products is the smallest, performance is strongest, the most exquisite GPS module. Built-in fast 50 satellite positioning and tracking ability chip, the built-in battery backup, built-in high gain LNA, the double road, PCB zedoary process, large area radiation GPS signal, not the locator. Signal is better and more stable. With optional baud rate, 4800, 9600, 19200, 384,00, 5700, 115200 and so on rate and RMC, GSV, GSA, GGA, vacations, GLL statements, such as free combination, let you use this product more easily. Default output of 9600 standard.
The user can be set free: 1. Data rate: 9600 BPS (default) [optional: 1200 2400 4800 19200 38400 57600 115200 230400 460800 921600]
2. The output statements: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, vacations, GLL) protocol data, can be arbitrary set match
3. The data refresh rate: 1 hz - 5 hz refresh rate
4. PPS indicator light: before positioning normally on or off; After positioning flashing
5. AGPS: support independent auxiliary positioning system
6. Can make control: supports external IO switch state trigger control module
7. The satellite quality control: rich set of satellite quality control and prevent the elegant software Settings
8. Application scenarios: from walking - car - static mode - portable mode - airborne model and 2 d & 3 d positioning user can be set free
Feature: The KDS 0.5 PPM high-pre cision TCXO
Built-in RTC crystal and capacitance faster warm start of skin
Block built-in EEPROM, free rich configuration parameters
5 hz location update rate
Support AssistNow Online and AssistNow Offline, such as A - GPS service
GPS,GALILEO,SBAS (WAAS,EGNOS,MSAS,GAGAN) hybri engine
Model: VK2828U7G5LF
C/A code, 1.023 MHz stream
Receiving frequency band: L1 (1575.42 MHz)
Tracking channels: 50
Support the DGPS [WAAS and EGNOS and MSAS]
Positioning performance 2D plane: 5M (for A V G)
2D plane: 3.5m (for A V G) ,DGPS assist
Drift: < 0.02 m/s
Timing accuracy: 30 us
Reference coordinate system: WGS - 84
Maximum height: 18000 meters
Maximum speed: 500 m/s
Acceleration: < 4 g
Electrical Performance Tracking sensitivity: - 162 DBM
Capture sensitivity: - 146 DBM
Cold start time: 32 s
Warm start time: 32 s
Warm start time: 1 s
To capture time: 0.1 s
Operating temperature: - 30 a to + 80 a
OUTPUT Output data baud rate 4800 BPS to 9600 BPS or customized according to customer requirements
Output NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, vacations) protocol data

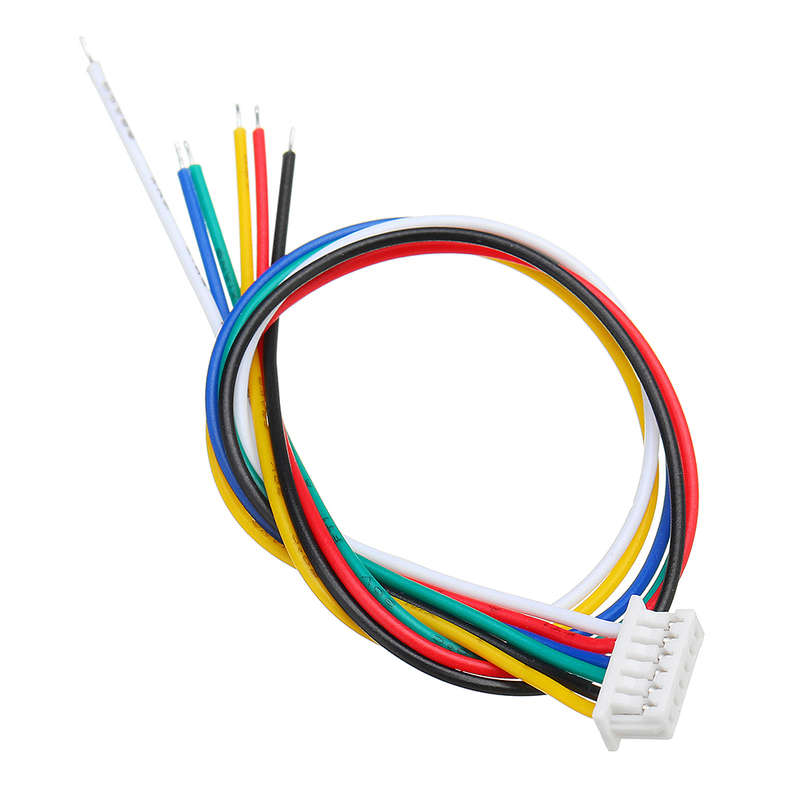

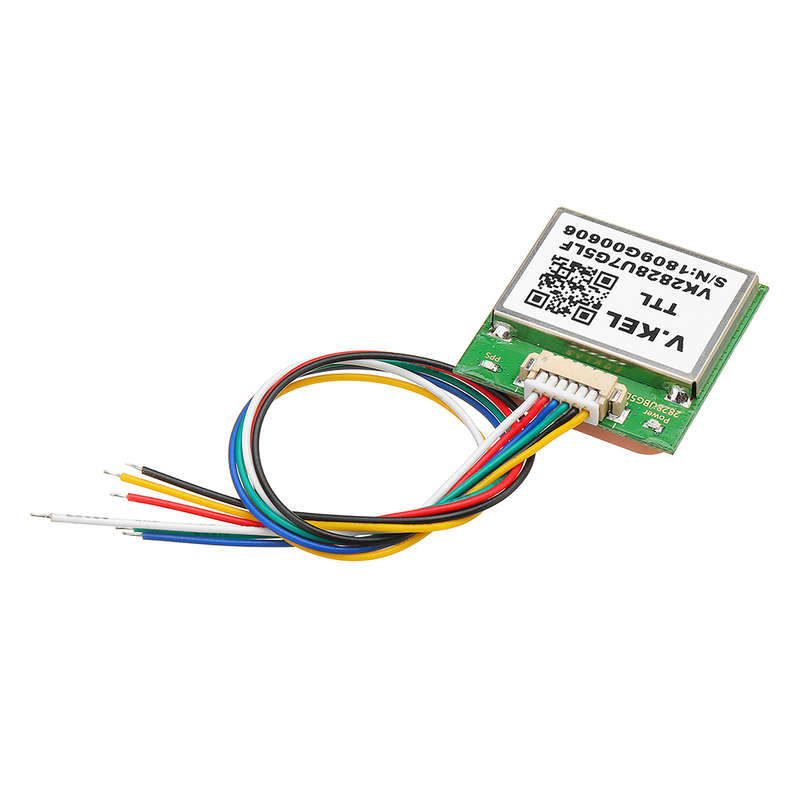

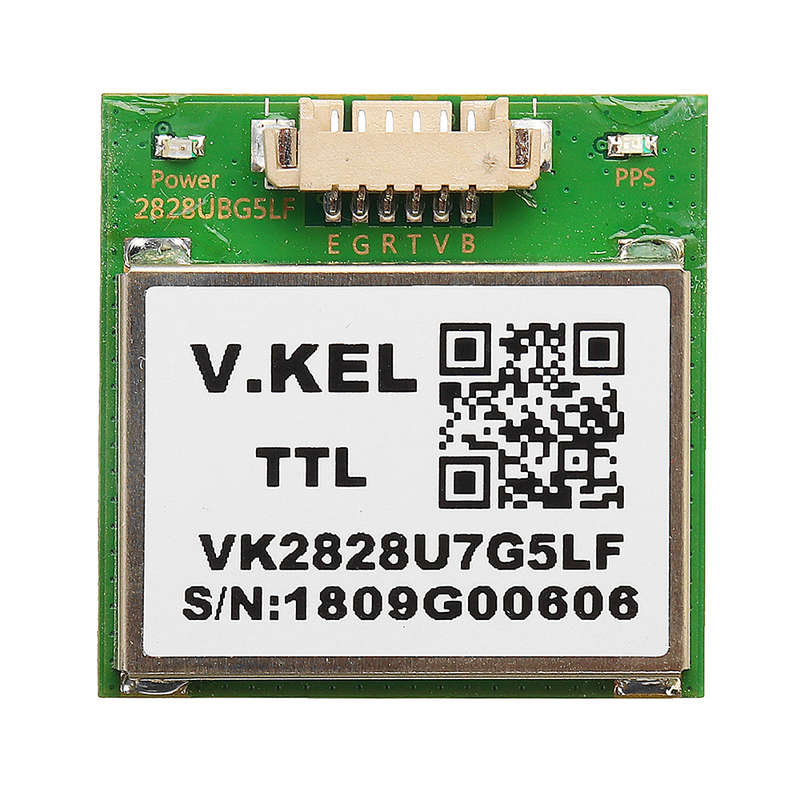

Package included: 1 xVK2828U7G5LFTTL GPS Module With Antenna 1 x Cable
