Name: Geekcreit 3.3V 5V XTW ST-LINK V2 STM8 / STM32 Simulator Programmer Downloader Debugger 500MA Fuse Sh
SKU: POA6019310
Price: 265.71 ZAR
Availability: SoldOut

Geekcreit 3.3V 5V XTW ST-LINK V2 STM8 / STM32 Simulator Programmer Downloader Debugger 500MA Fuse Sh

100 were available / new

R265.71

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

ReliableStore(Blacklisted)

100.00 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement 90 days

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

POA6019310

Bob Shop ID

598849277

Description:

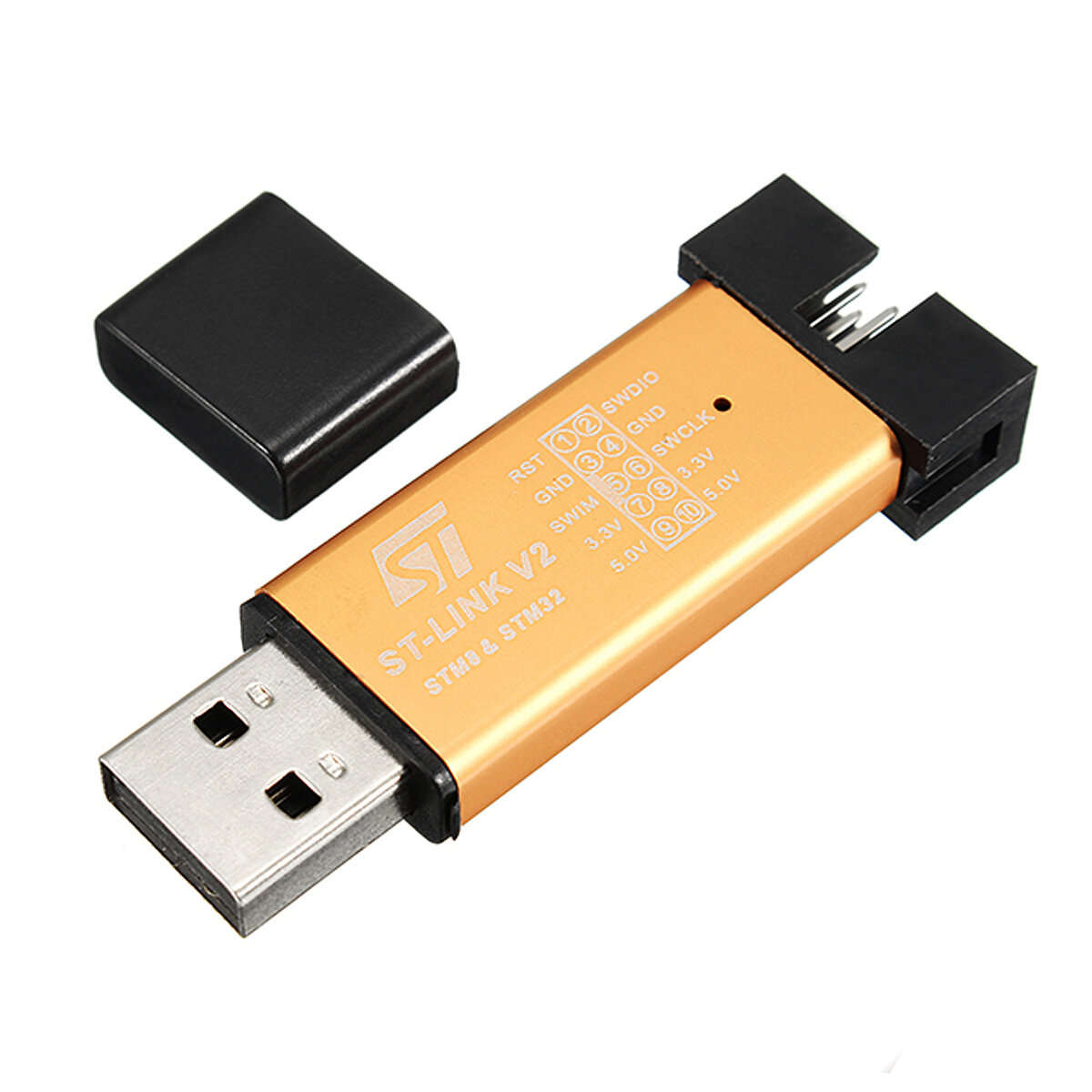

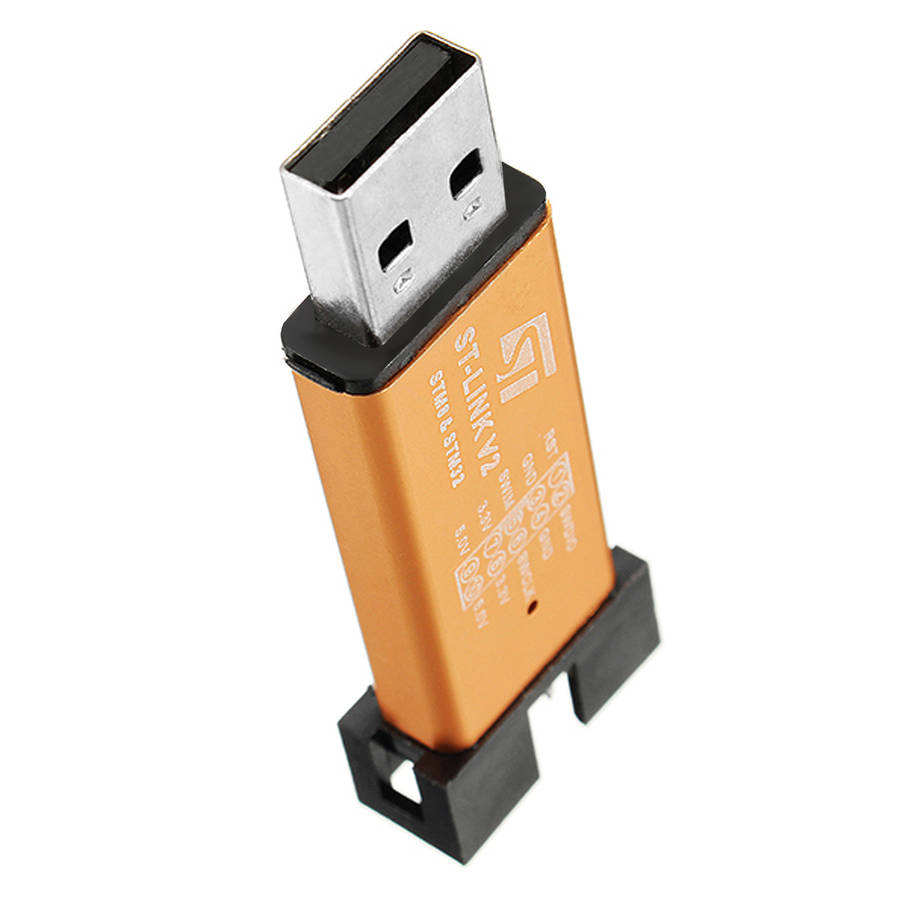

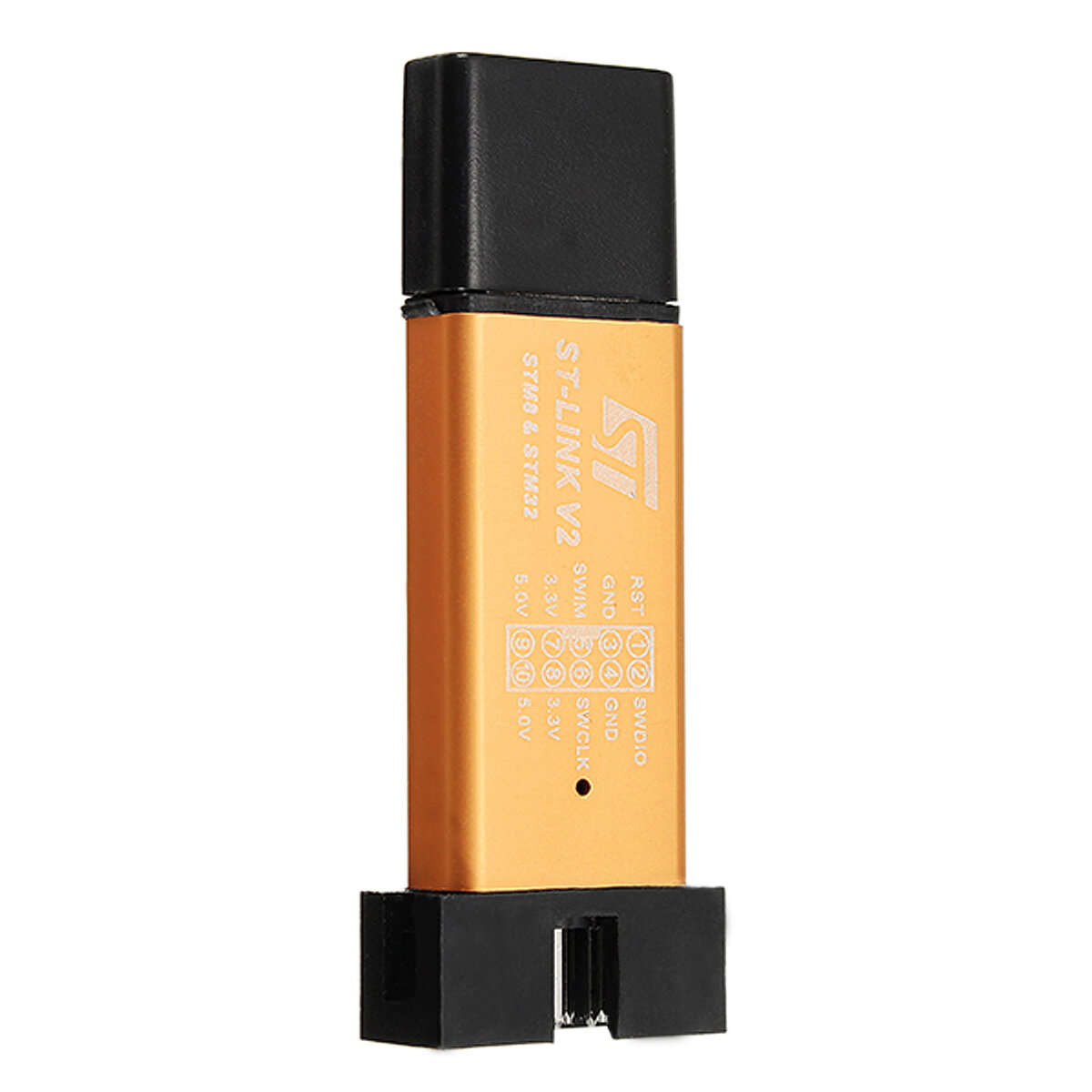

1. Use aluminum alloy U disk shell to install internal motherboard.

2. The interface definition is directly marked on the enclosure.

3. 5V, 3.3V at the same time to provide external use, convenient for you to connect 5V and 3.3V target board.

4. The shell characters use laser engraving, never fade off and permanent clarity.

5. The internal motherboard with 500MA self recovery fuse, completely protect your expensive computer motherboards.

6. Red and blue double color LED indicator lamp, it is convenient for you to observe the working state of ST-LINK V2 at all times.

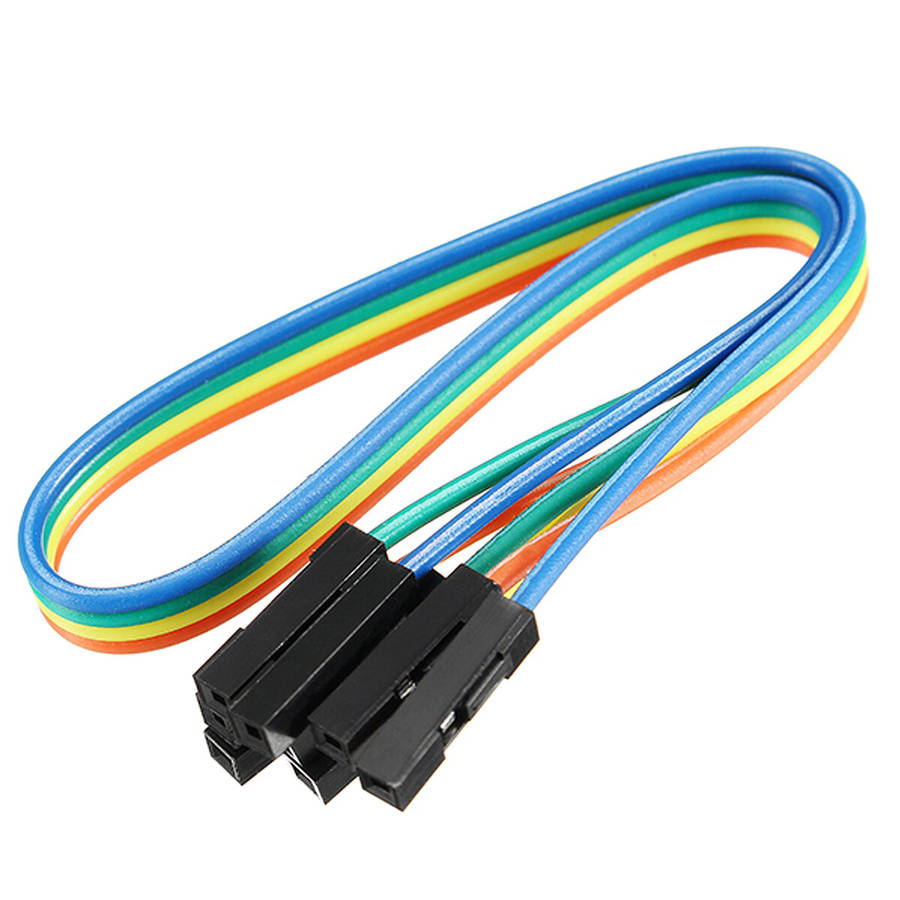

7. Distribution dupont wire, so that you can easily deal with the wire sequenc of different target board.

8. The outer packing is made of anti-static bag and sealed pack by automatic sealing machine. It is safe and reliable and not afraid of static electricity or water.
9. Note: red, black, gold, green, grey, white, blue, pink color random delivery

Features:

1. Support a full range of STM32 SWD interface debugging, 4 wire interface simple (including power), fast speed, work stability; interface definition shell is directly marked.

2. Support a full range of STM8 SWIM download debugging (common development environment such as IAR, STVD and so on are supported); support software version is as follows:

1) XTW LINK ST Utility 2.0 and above
2) STVD 4.2.1 and above

3) STVP 3.2.3 and above
4) IAR EWARM V6.20 and above

5) IAR EWSTM8 V1.30 and above
6) KEIL RVMDK V4.21 and above 6 and above

3. Support firmware automatic upgrade, factory firmware has been upgraded to the latest V2.J17.S4.

4. Increase the 5V power output, output I / O port are protected, not afraid of operating mistakes caused by LINK, ST, V2 damage.

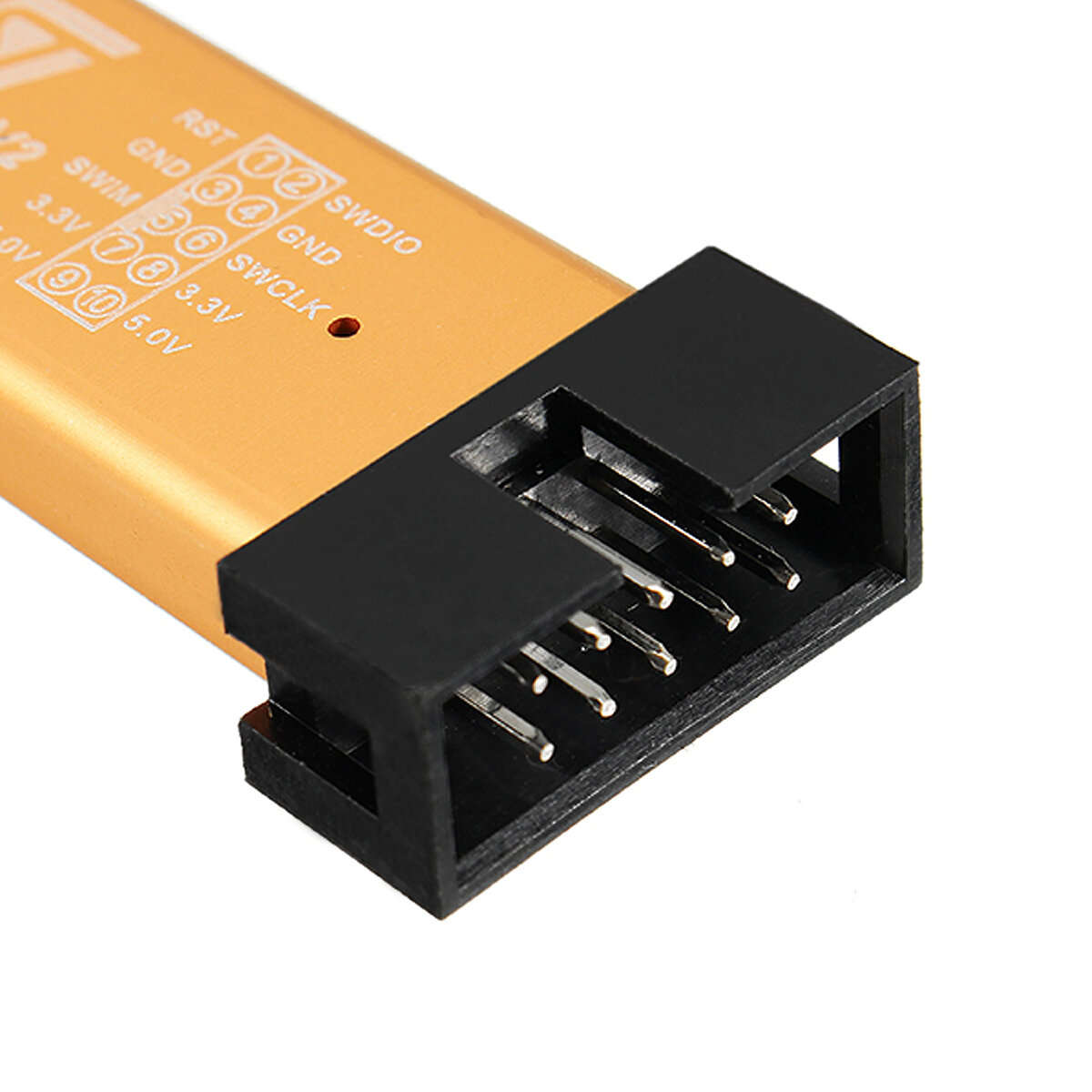

5. The interface uses pure copper gold-plated 2.54 space simple ox horn socket with 20CM Dupont wire

6. Using U aluminum alloy shell to protect the motherboard

7. With data package, data contains:

1) XTW, LINK, ST, V2 driver;

2) KEIL, MDK (4.60) development environment (and other common development environment)

3) IAR, STM8 (1401) development environment (and other common development environment)

4) STVD STM8 development environment (and other common development environment)

5) A number of classic STM32 data (including a large number of examples of source code and video tutorials)

6) A number of classic STM8 data (including a large number of examples of source code and learning experience)

Package included:

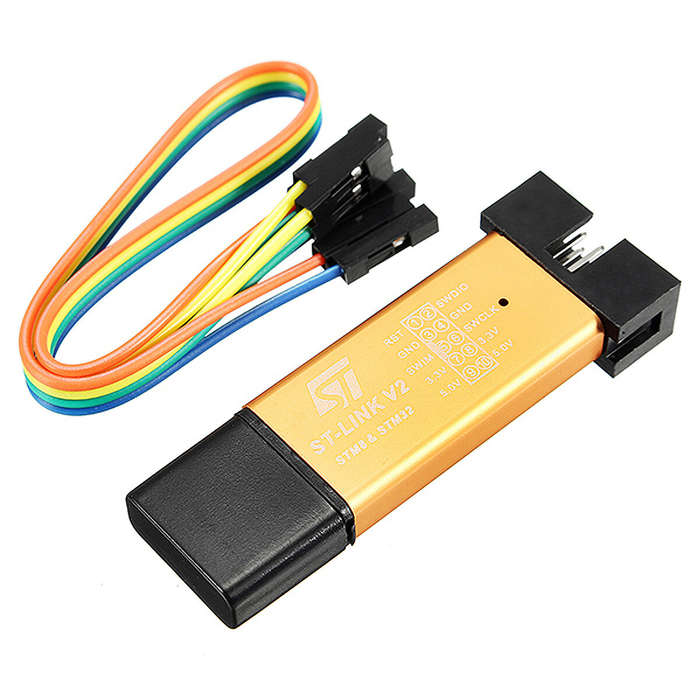

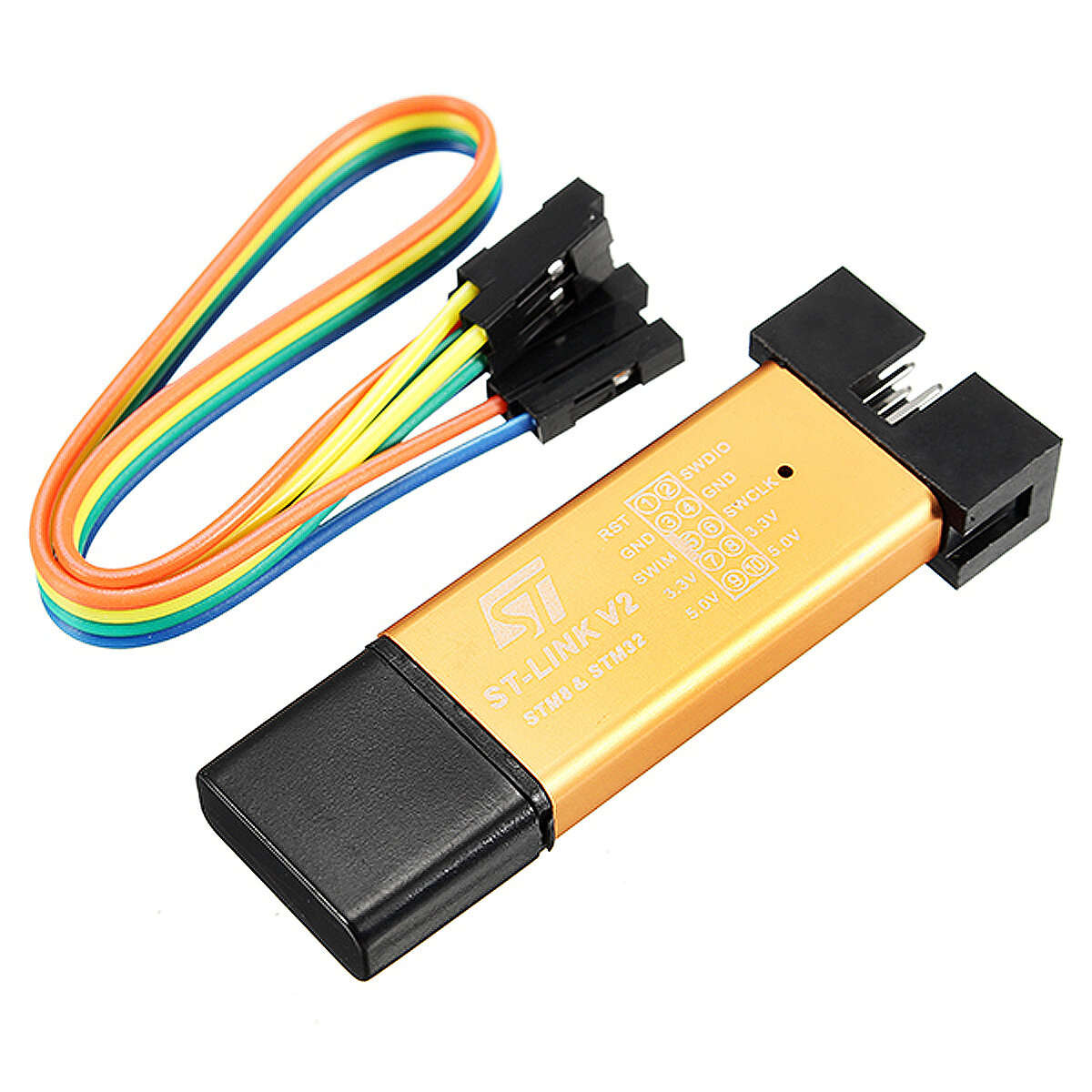

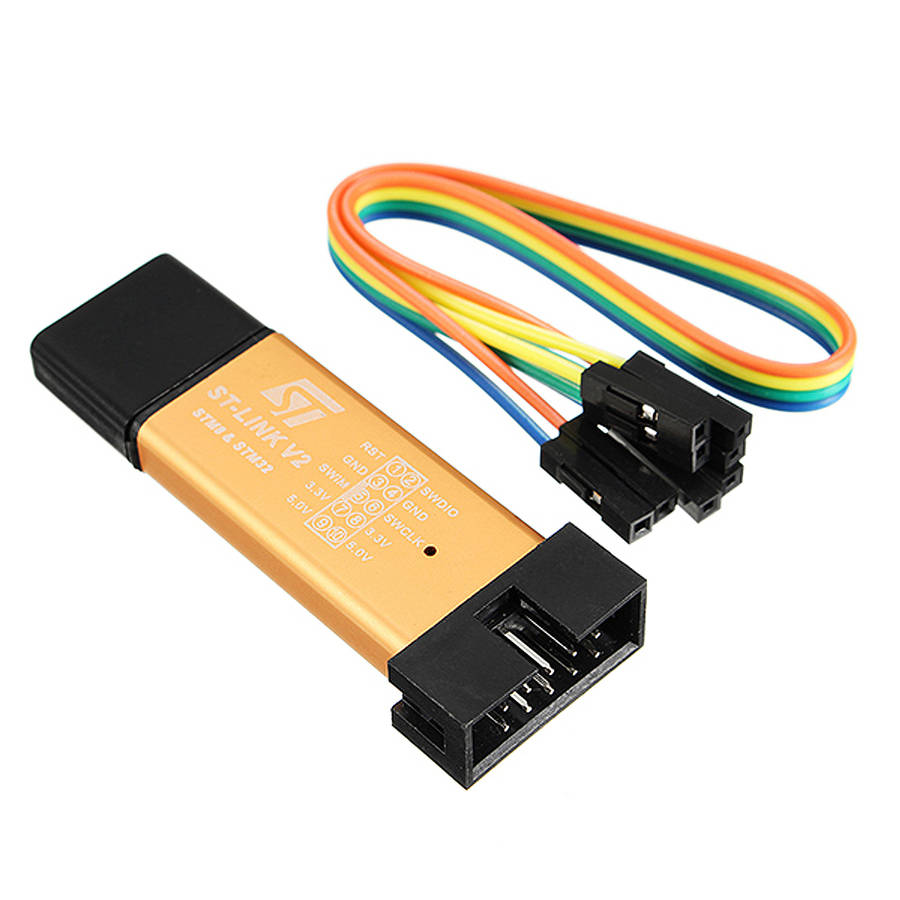

1 x 3.3V 5V XTW ST-LINK V2 STM8 / STM32 programmer with 20cm dupont wire
