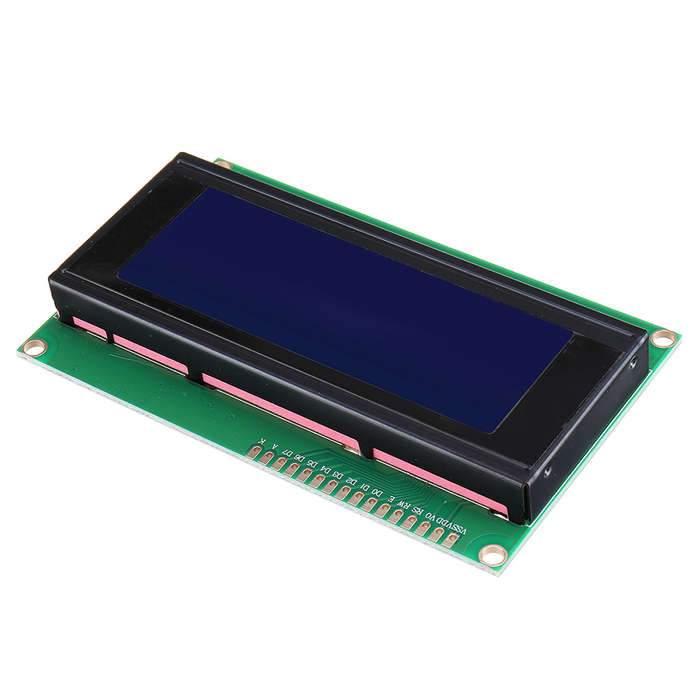

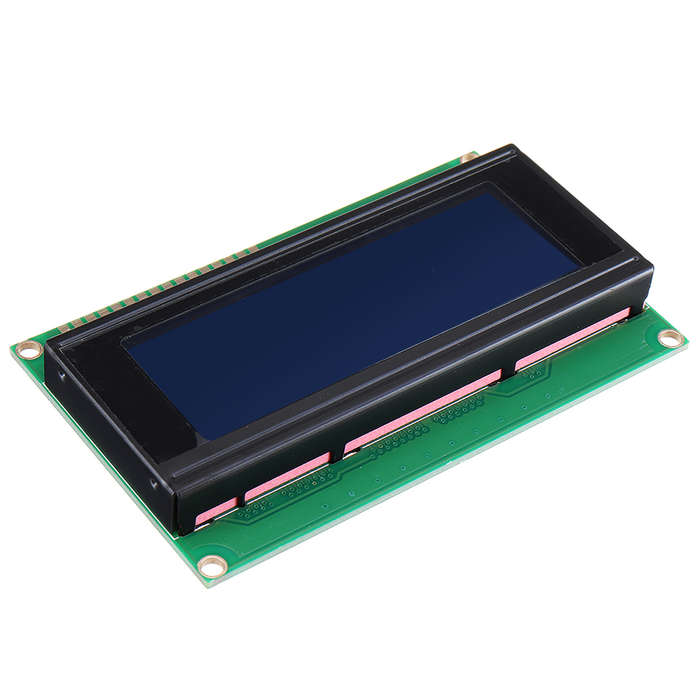

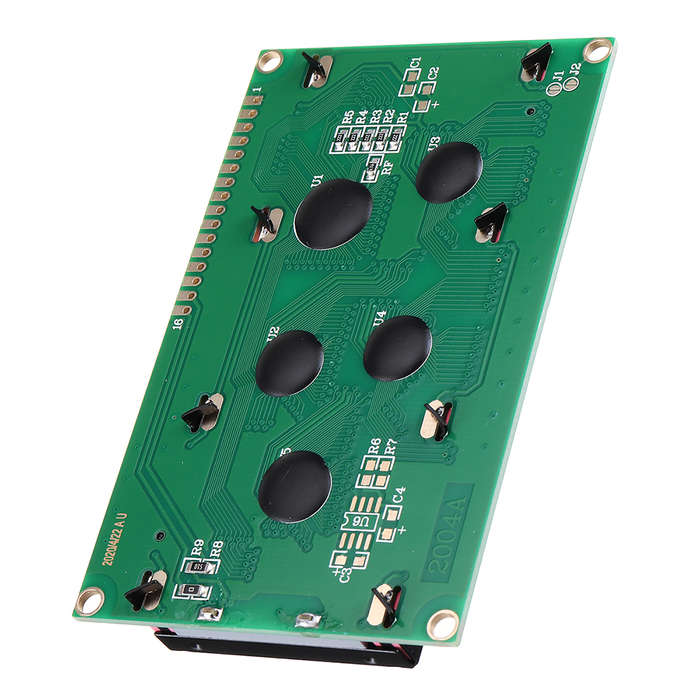

Geekcreit 5V 2004 20X4 204 2004A LCD Display Module Blue Screen

New

20 available

R410.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651229200

Description:

The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.

Specification:

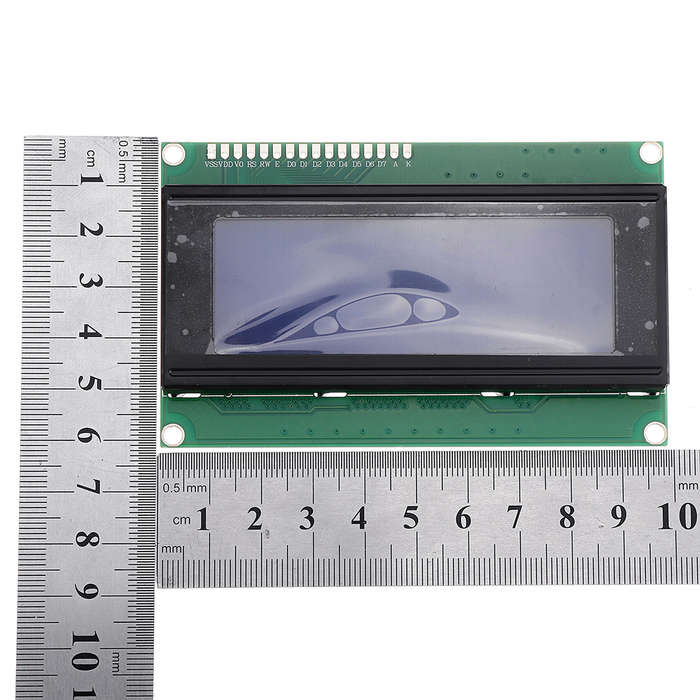

Module size(W x H x T): 98.0 x 60.0 x 14.0mm
Viewing area(W x H): 76.0 x 26.0mm
Character size(W x H): 2.94 x 4.74mm
Dot size:(W x H): 0.54 x 0.54mm
LCD type & color: STN(Blue), FSTN
View angle: 6 o`clock
Display type: positive / negative type
Control IC & package: KS0073 or EQV, COB
Operating temperature: -20ﾣC - +70ﾣC
Storage temperature: -30ﾣC - 80ﾣC

Package included:

1 x 5V 2004A LCD display module
