Product introduction: The TTL-WiFi transparent transmission firmware is based on ESP-M2 wireless module, realizing the real-time transparent transmission of the module serial port and WiFi data. its firmware functionality and stability have met the industrial level transparent transmission requirements. This firmware has greatly optimized the performance of serial port receiving and sending. In particular, the reconnection mechanism under the WiFi STA mode and the reconnection mechanism under the TCP Client mode have been designed to ensure the stable connection and transmission of data links. The R&D transparent transmission firmware has optimized the webpage configuration interface, support AP, STA, AP+STA configuration, supported serial baud rate from 300bps~3686400bps, supports TCP Server/Client, UDP Server/Client, UDP LAN broadcast, etc. Features. At the same time compatible AT_command configuration is the most cost-effective WiFi transparent transmission products on the market.

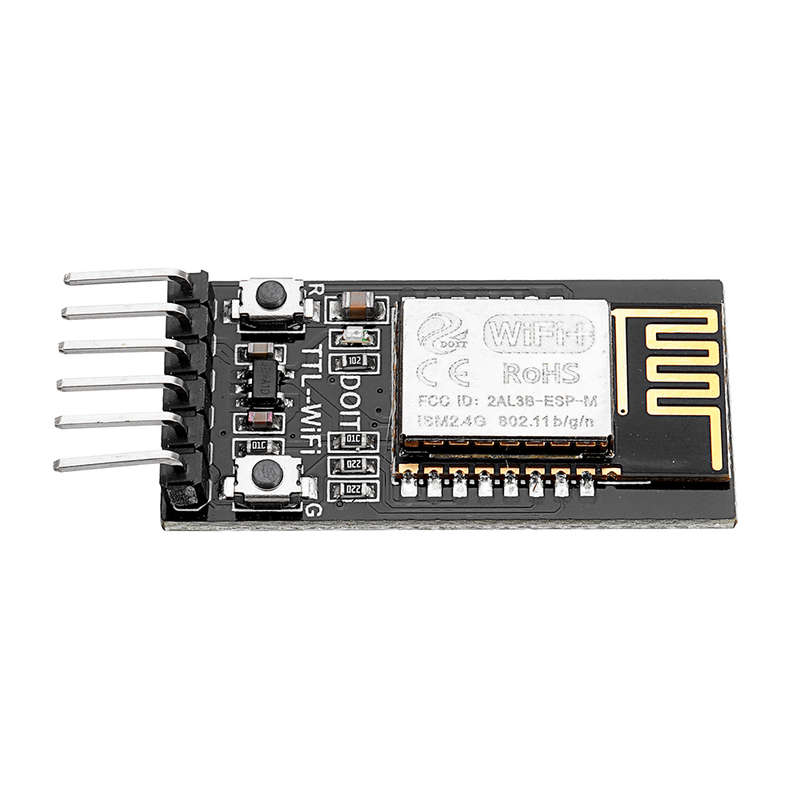

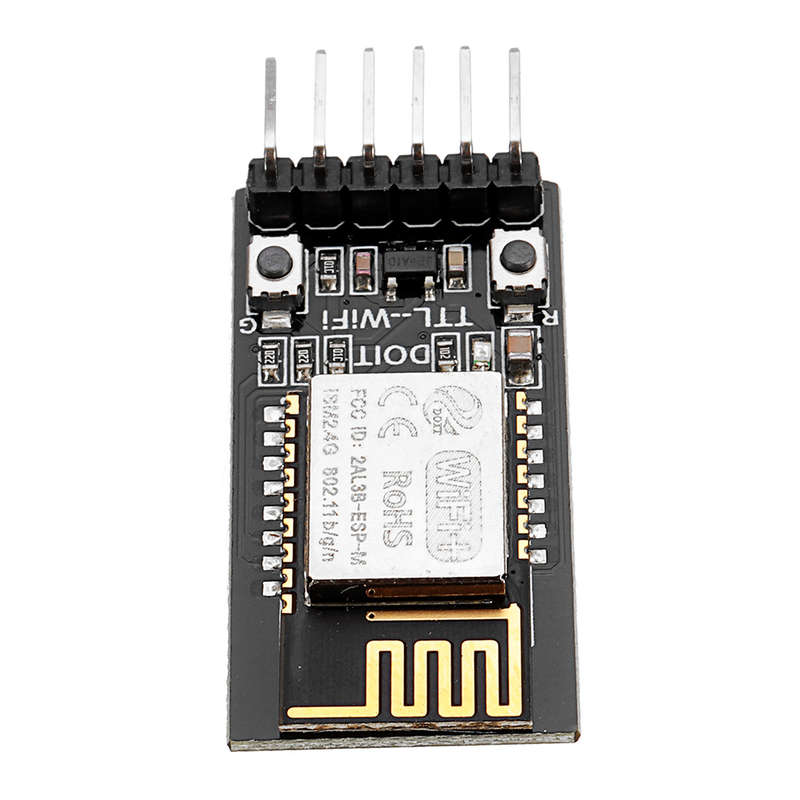

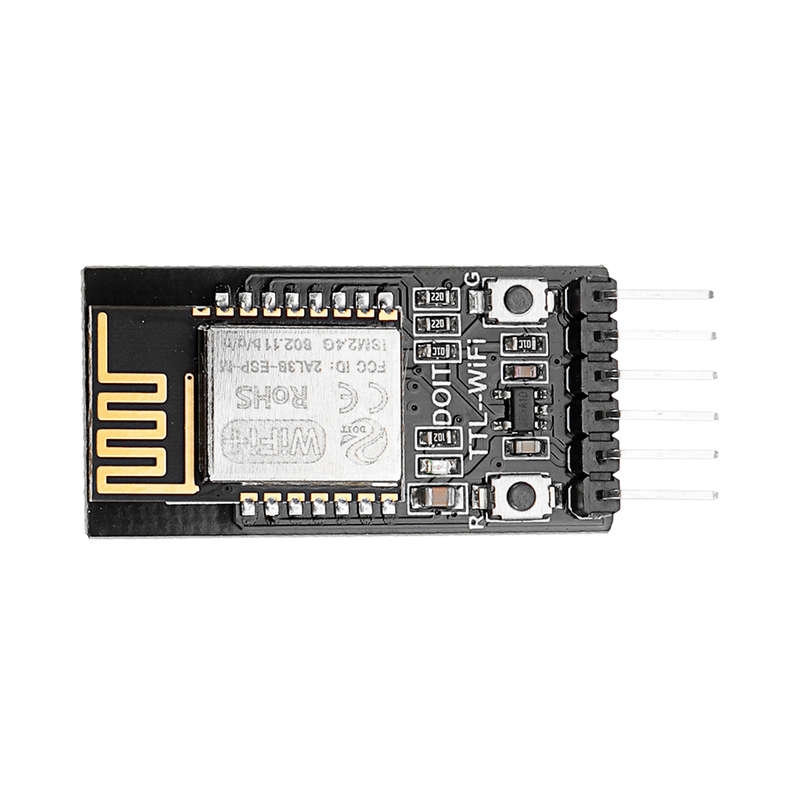

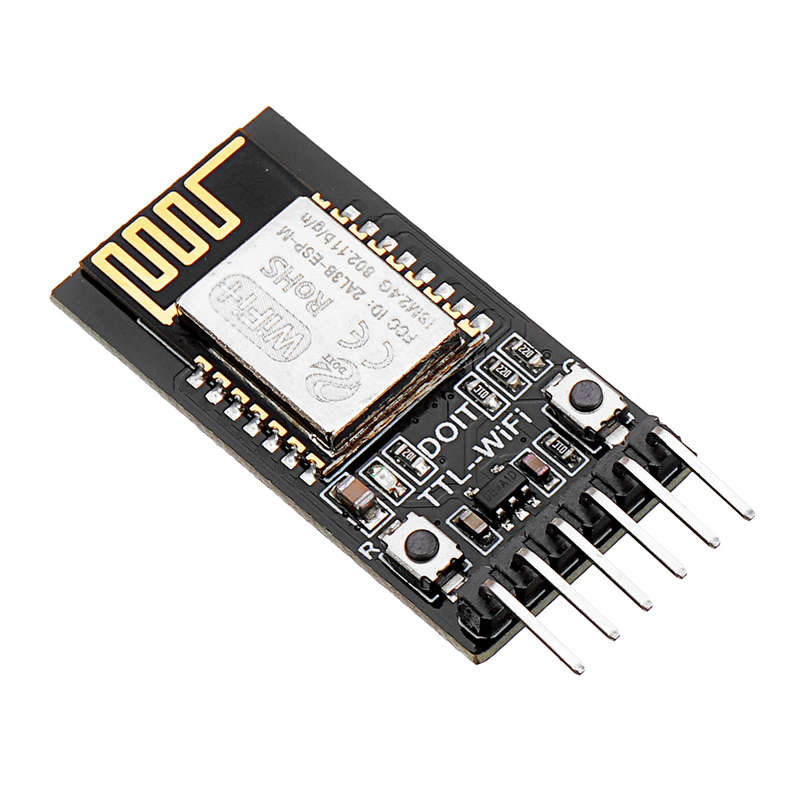

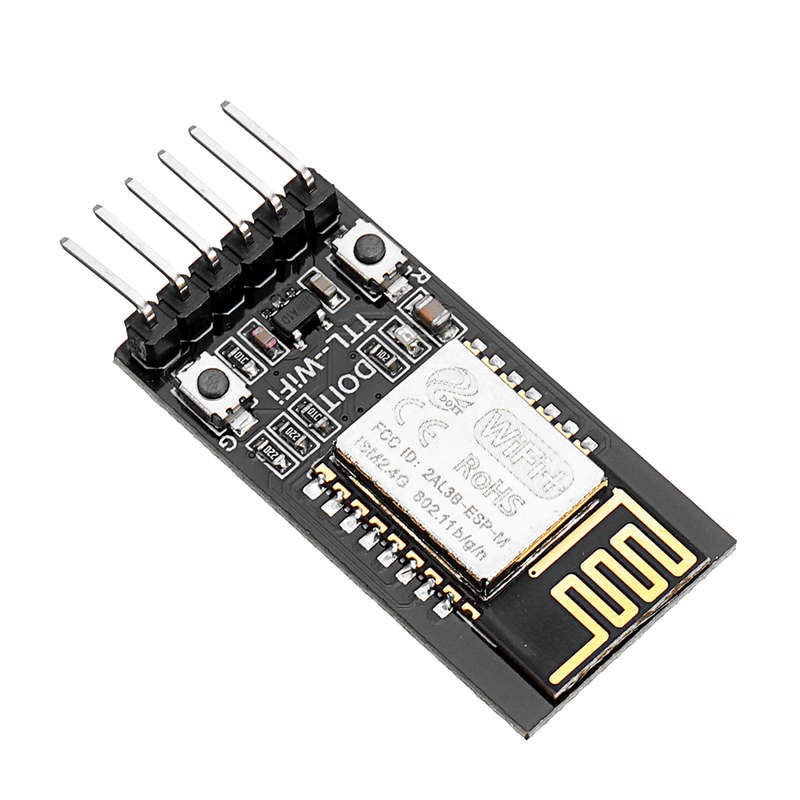

Features: The TTL-WiFi module is based on the development of our ESP-M2 WiFi module, which leads out the serial TTL, EN, STATE and other pins. The built-in serial transparent transmission firmware of our company's latest version can achieve real-time transparent transmission of TTL port to WiFi/cloud data of the device, with low power consumption control, status indication and other functions. This module can directly replace the original wired serial port to realize data acquisition and control of embedded devices.

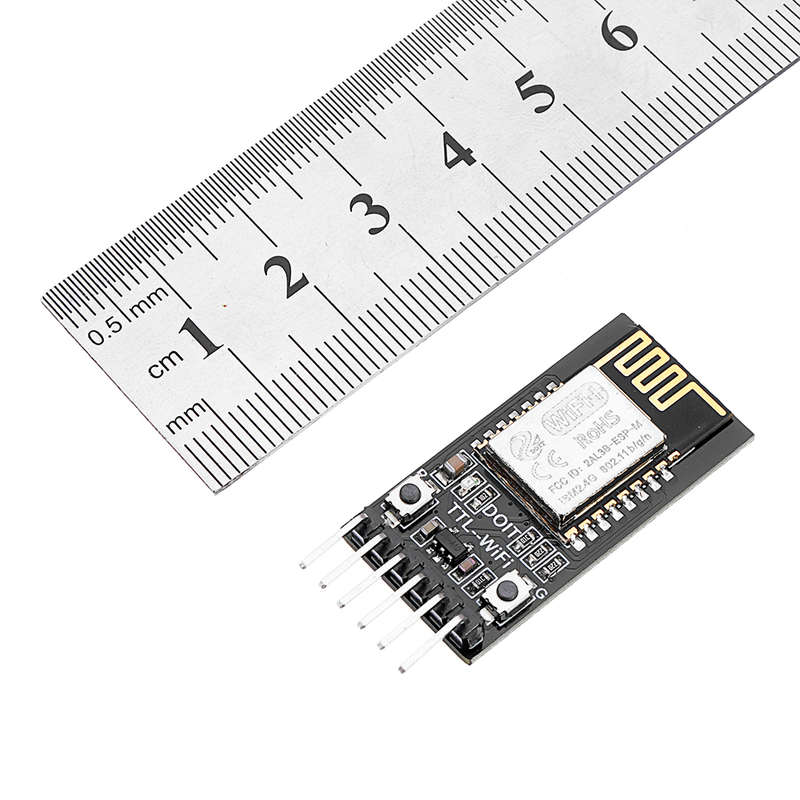

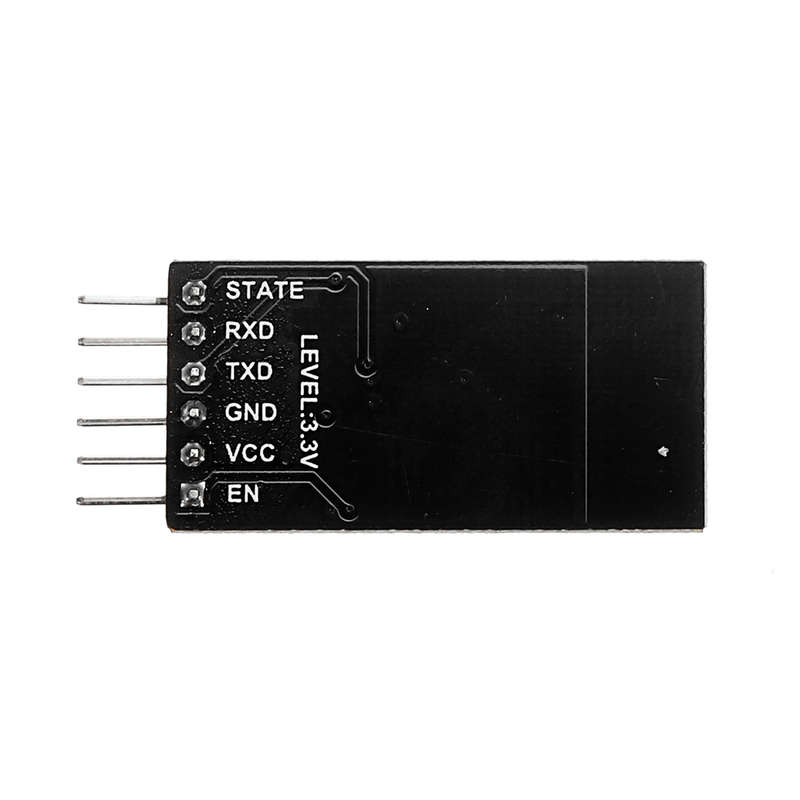

The characteristics of the TTL-WiFi module are as follows: Fully compatible with the original bluetooth transparent transmission module electrical interface and physical interface; Built-in industrial-grade transparent firmware V3.0, reliable and stable, WEB interface configuration; Based on ESP-M2 high-performance WiFi module, the overall size: 34mm 17mm 4mm; Supply voltage: 4.5V~6.0V, TTL voltage: 3.3V (compatible with 5.0V); Lead pins: STATE, TXD, RXD, EN; Average current: 80mA; 170mA for WiFi data transmission; 20A for deep sleep mode; Support serial AT_command; Supports reprogrammable, OTA firmware upgrades; Serial and WiFi data are seamlessly transparently transmitted in real time; Built-in HTTP Web Server to support web configuration parameters; WiFi supports AP, STA, AP+STA three modes; Supports automatic reconnection in WiFi STA mode, automatic reconnection in TCP Client mode; The serial port supports setting the baud rate, data bits, parity, stop bits, and packet time; Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400; Supports AP enablement, custom SSID/password, custom IP, and network segment; Automatic scanning of hot spots around the site, support for STA enablement, DHCP, custom IP, and network segments; Support TCP Server, TCP Client, UDP Server, UDP Client, and UDP LAN broadcast; The remote server address supports automatic DNS domain name resolution. Support viewing status via AT_command; Leading out IO4 characterizes WiFi status. Operating temperature range: -40 C -125 C; Application scenario: smart home, wireless data collection and transmission, smart car control, wireless serial printer, outdoor LED lamp, industrial control, etc.
Package included: 1 x DT-06 Wireless WiFi Serial Transparent Module
