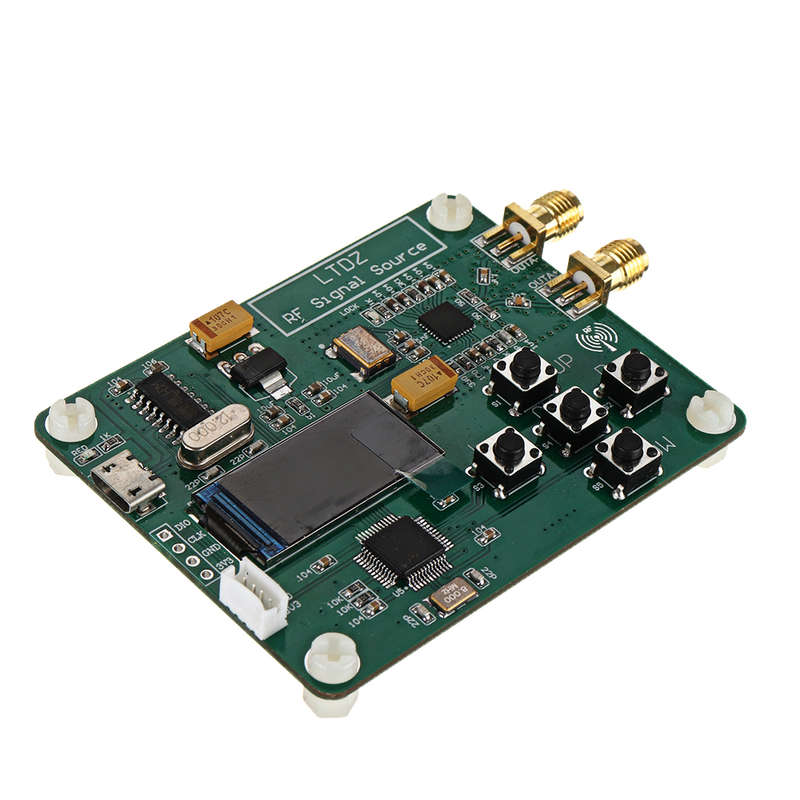

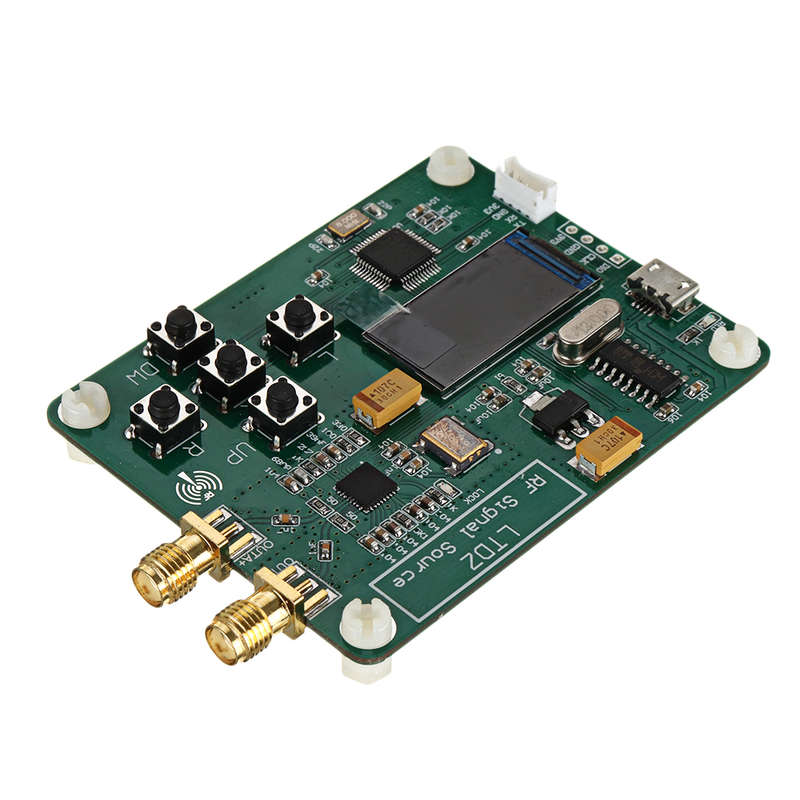

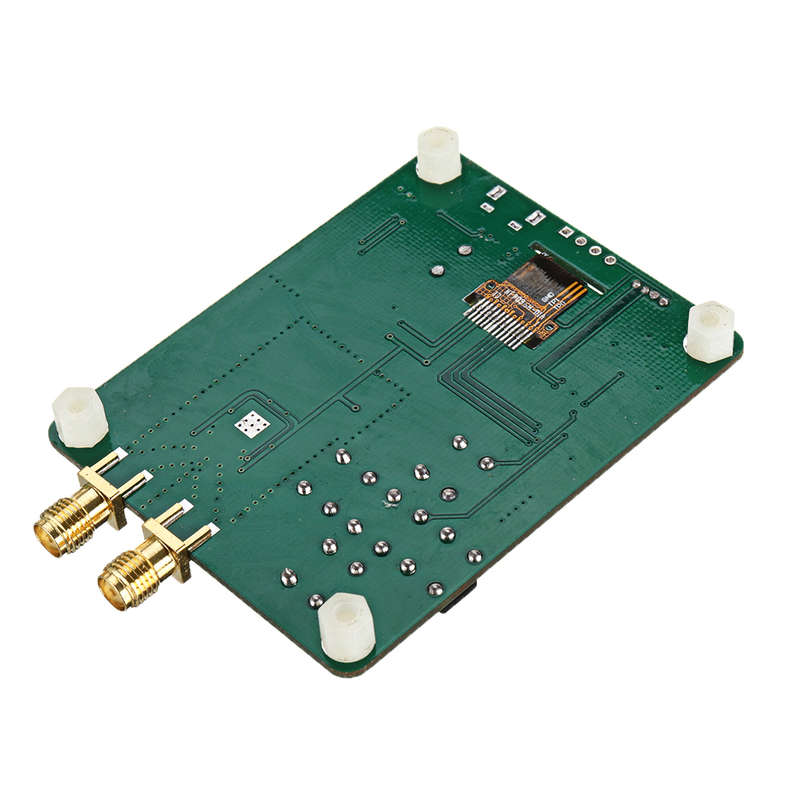

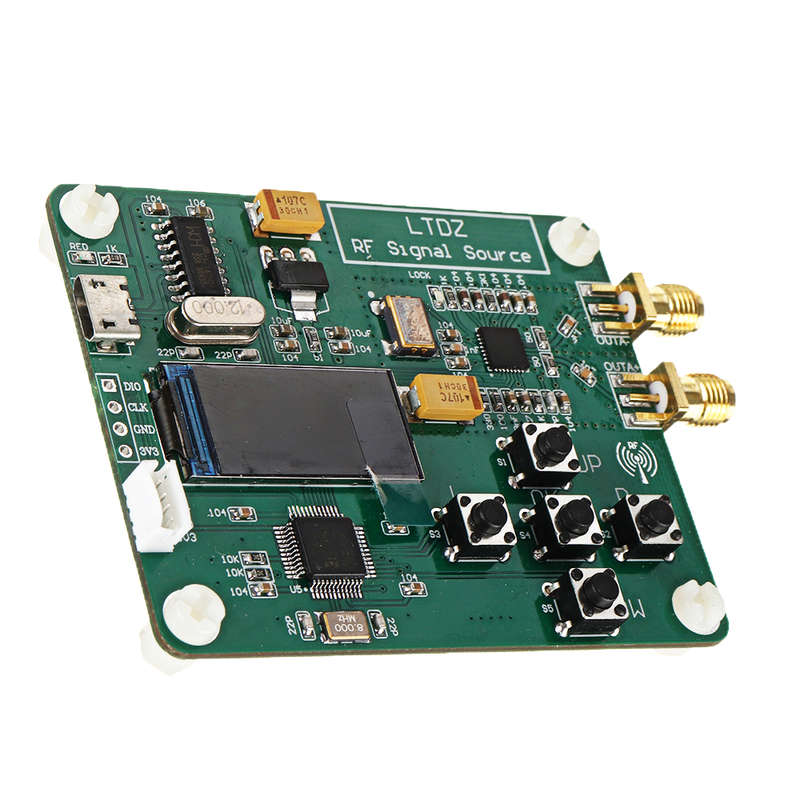

Geekcreit LTDZ MAX2870 STM32 23.5-6000Mhz Signal Source Module USB 5V Power Frequency and Sweep Mo

20 available / new

R927.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641124904

Product Parameters:
Frequency output range: 23.5-6000Mhz. Two modes: frequency and sweep Minimum control accuracy: 0.001Mhz Amplitude control: -4dB -1dB +2dB +5dB Power supply mode: USB 5V power supply Size: 80mm*53mm*8mm 100g
Control Method:
1. Adjust the frequency output via the 5 onboard buttons. 2. Serial port control mode 1: Onboard USB to serial port chip, the computer can be directly controlled, and no control software is provided. 3. Serial port control mode 2: It is controlled by other hardware devices through the serial port interface of the board. (Provide serial control communication protocol)
Package Includes:
1 x LTDZ_MAX2870_STM32_23.5-6000Mhz signal source 1 x USB cable 1 x serial cable
