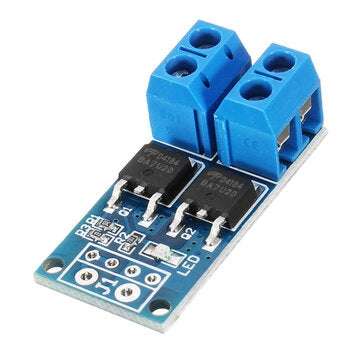

Geekcreit MOS Trigger Switch Driver Module FET PWM Regulator High Power Electronic Switch Control

20 available / new

R355.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3514

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643380182

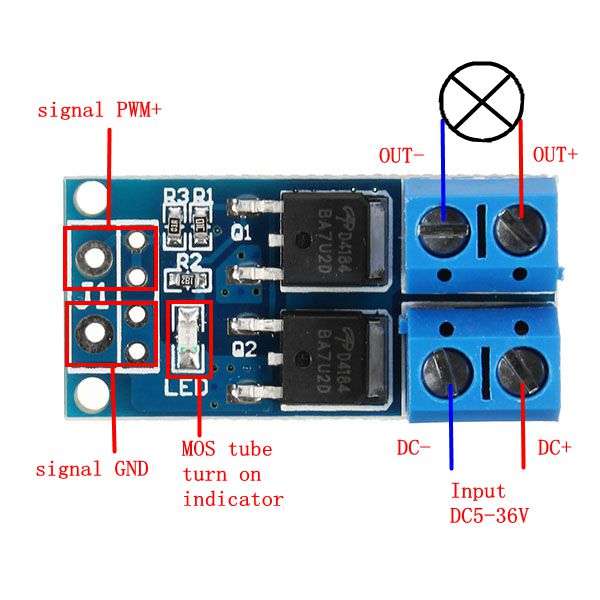

Feature: Working voltage: DC5V-36V Trigger signal source: digital high level (DC3.3V-20V), can be connected to the microcontroller IO port, PLC interface, DC power supply, etc., can connect PWM signal, support signal frequency 0-20khz Output: DC5V-36V, continuous current at room temperature 15A, power 400W, assisted cooling conditions, the maximum current up to 30A. Applications: Output can control high power equipment, motors, light bulbs, LED lights, DC motors, mini pumps, solenoid valves, etc., you can enter the PWM, control the motor speed, lamp brightness and so on. Operating temperature: -40 to 85 ﾣ C Size: 3.4 x 1.7 x 1.2cm Package includes: 1 x MOS Trigger Switch Driver Module
