Geekcreit Portable Mini Automatic Spot Welding Machine Control Board 12V/5.6V Portable Lithium Bat

20 available / new

R752.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643380188

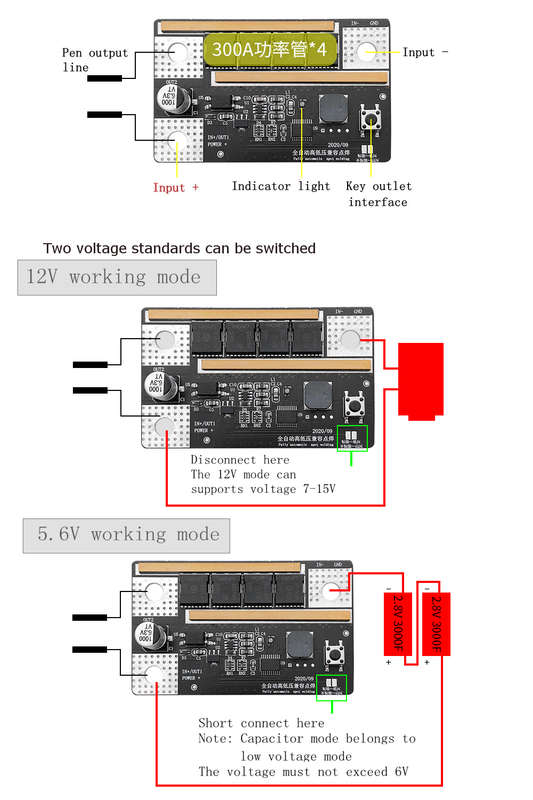

Instructions for use of automatic spot welding control board:
1. Power requirements: In 12V mode, voltage input is 7-15V (12V recommended), in 5.6V capacitor mode, voltage supports 3.7-6V (recommended 5.6V), current requirements: can output actual current 120-360A 2. Button function: switch between 1 power level-2 power level-3 power level-4 power level after long press for 3 seconds 3. The red light is always on (automatic spot welding with 1 power level, press for about 1 second to spot welding) Red light is flashing (automatic spot welding with 2 power levels, pressing for about 1 second spot welding) The blue light is always on (automatic spot welding with 3 power levels, pressing for about 1 second spot welding) Blue light flashes (automatic spot welding with 4 levels of power, pressing for about 1 second spot welding) Green light is always on (waiting for spot welding) 4. Buzzer prompt, output once for each spot welding, buzzer buzzes once 5. The MOS is damaged, the indicator light flashes red and green alternately, and the buzzer sounds piercing (at this time, note that the spot welding pen cannot be spot welded, and the two needles cannot touch each other)
Package includes:

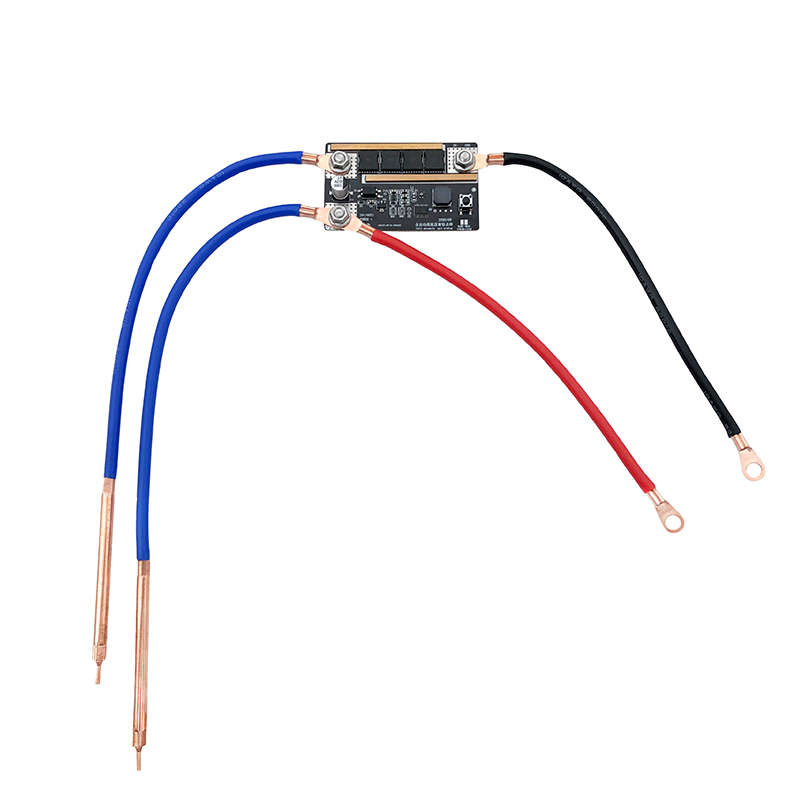

1 x spot welding control board with pen
