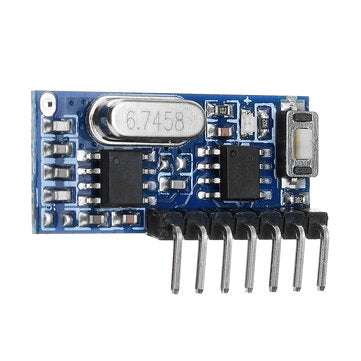

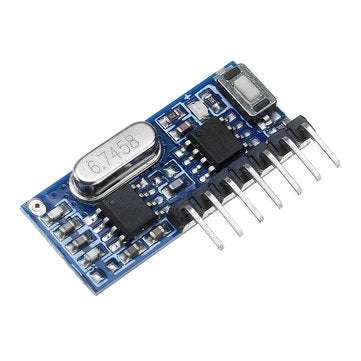

Geekcreit RX480E-4 433MHz Wireless RF Receiver Learning Code Decoder Module 4 Channel Output

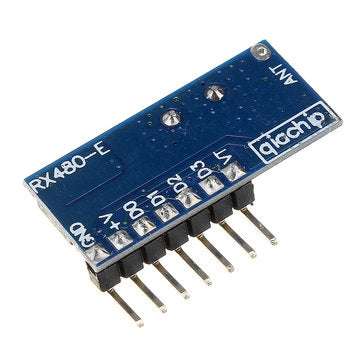

Instructions: 1. Clear: Press and hold the learning button for about 3 seconds, the LED will go out, flash 3 times after a while, clear OK. 2, learning the code: press the learning button, the LED lights up, release the learning button, enter the learning mode, press any button of the remote control at this time, transmit the signal, when you see the LED on the receiving module flashes 3 times, that is Indicates that the learning pair code is OK. 3. The remote control after learning can be controlled. Specifications: Working Temperature : -25~75C Frequency band: +-0.2MHz ReceiveDistance: 20-100M ( open space) Receive Sensitivity: -108dB Working Frequency: 433MHz( Others can be customized ) Quiescent Current : <=5mA Working Voltage : DC3.3~5V Working mode:Point move, self-locking, interlock Pin:

GND : groud or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output

Precautions: 1. Do not operate with power. Turn off the power and operate it. After the test is confirmed, the power is turned on. 2. When using wireless electronic products, care should be taken to avoid strong interference sources such as metal masks, large electronic devices, and electromagnetic fields to prevent the modules from working properly. 3. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard. Package Included: 1 x RX480E-4 433MHz Wireless RF Receiver
