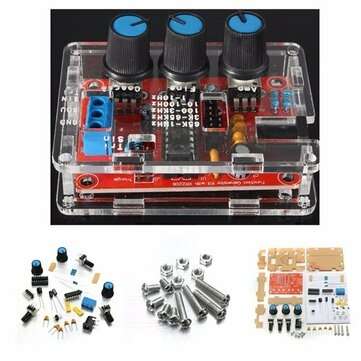

Geekcreit XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ

20 available / new

R328.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3503

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643380228

Specifications:

Voltage supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz

SINE wave:

Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz

SQUARE wave:

Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)

TRIANGLE wave:

Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

Package included:

1 x XR2206 Function Signal Generator DIY Kit
