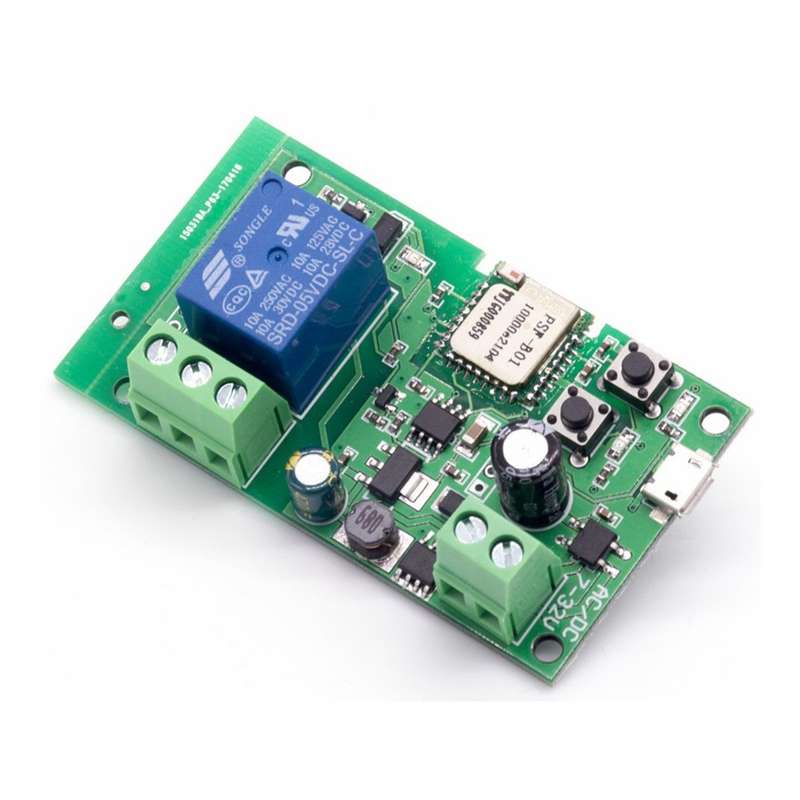

PRODUCT DESCRIPTION

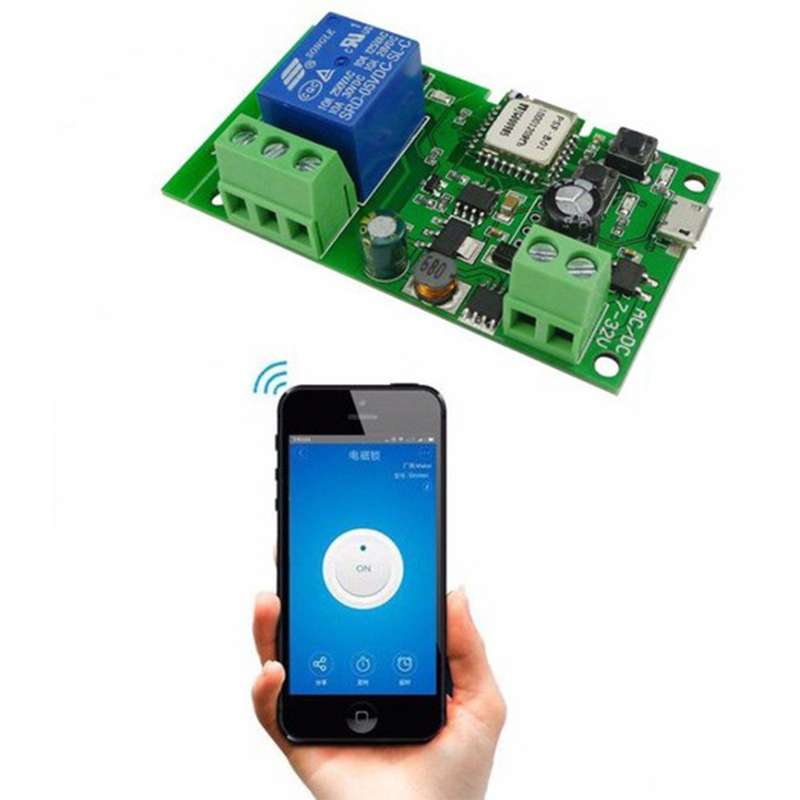

Enables remote control of home appliances through the mobile application Tuya/Smartlife, available on both Android and iOS. Supported functions include:
- Remote turn on/off
- Timing Schedules
- Device Sharing
- Group Management
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Nest
- Works with IFTTT

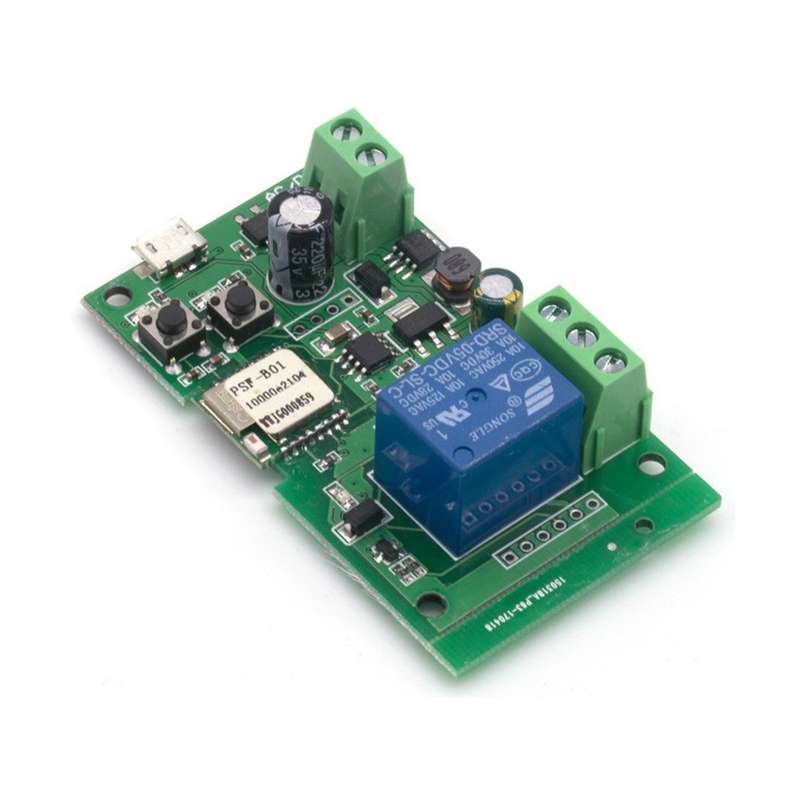

Note: we have change the WiFi module from PSA to PSF recently. PSF is more powerful.

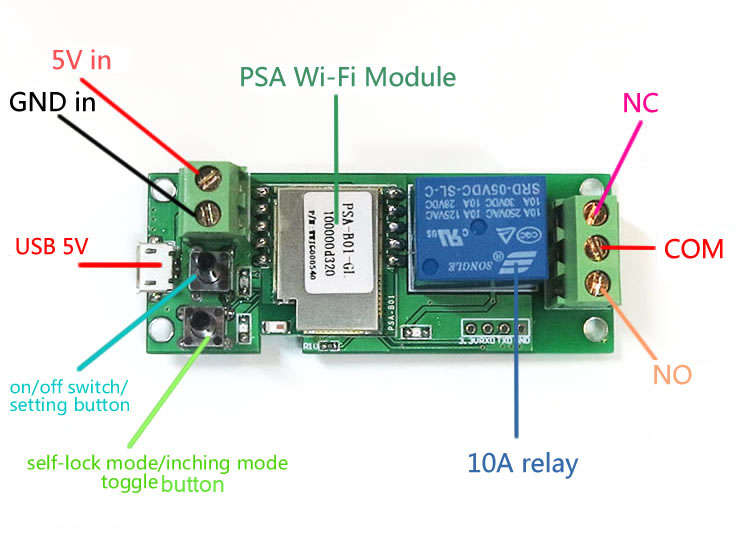

5V self-lock/inching mode wireless switch

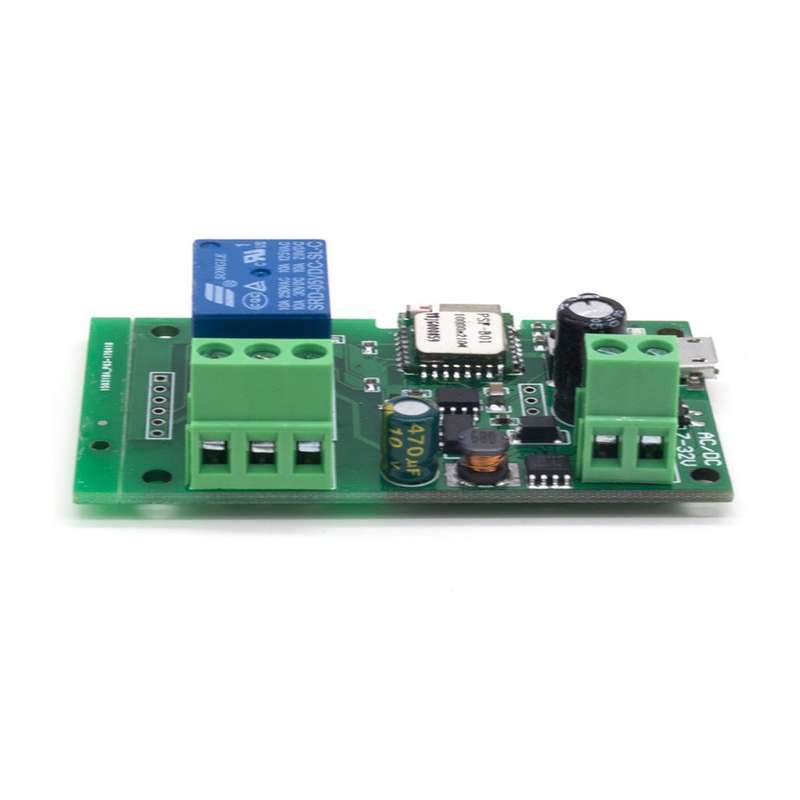

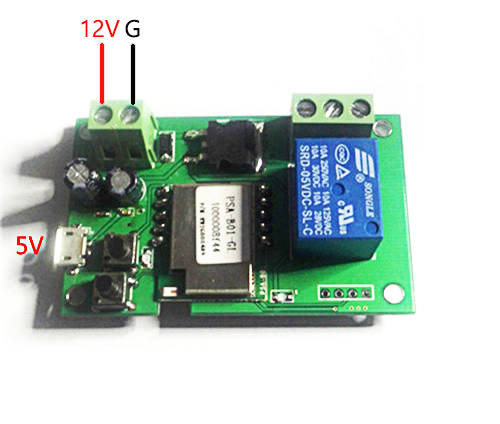

5V/12V self-lock/inching mode wireless switch
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.

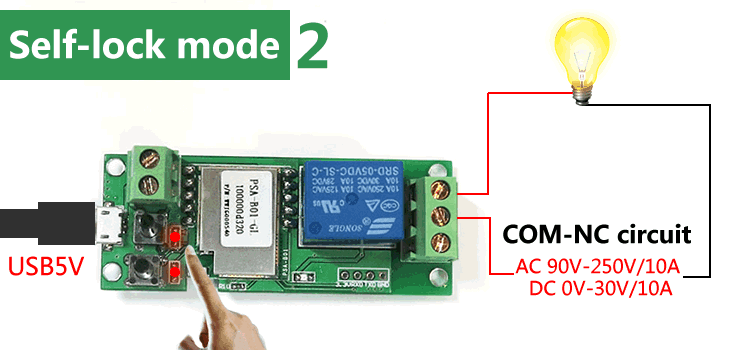

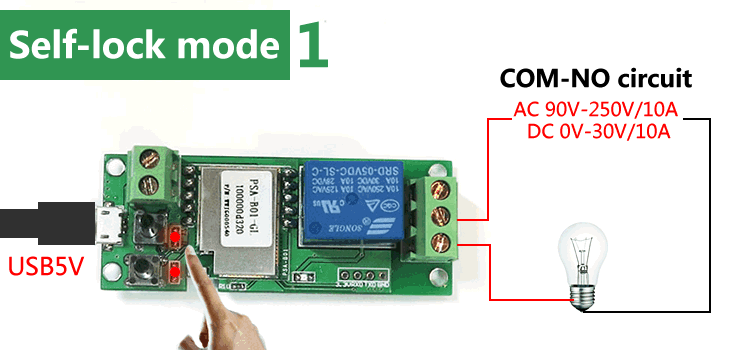

When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.

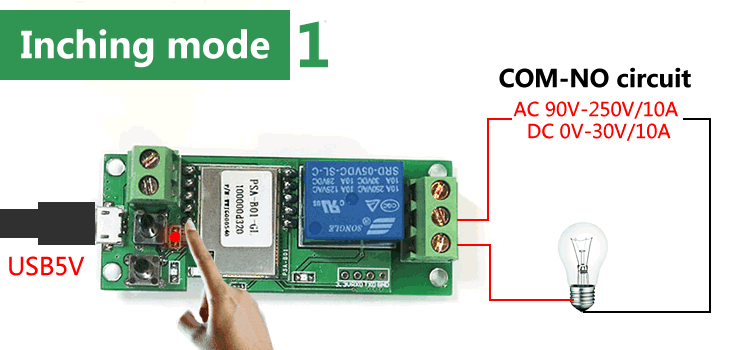

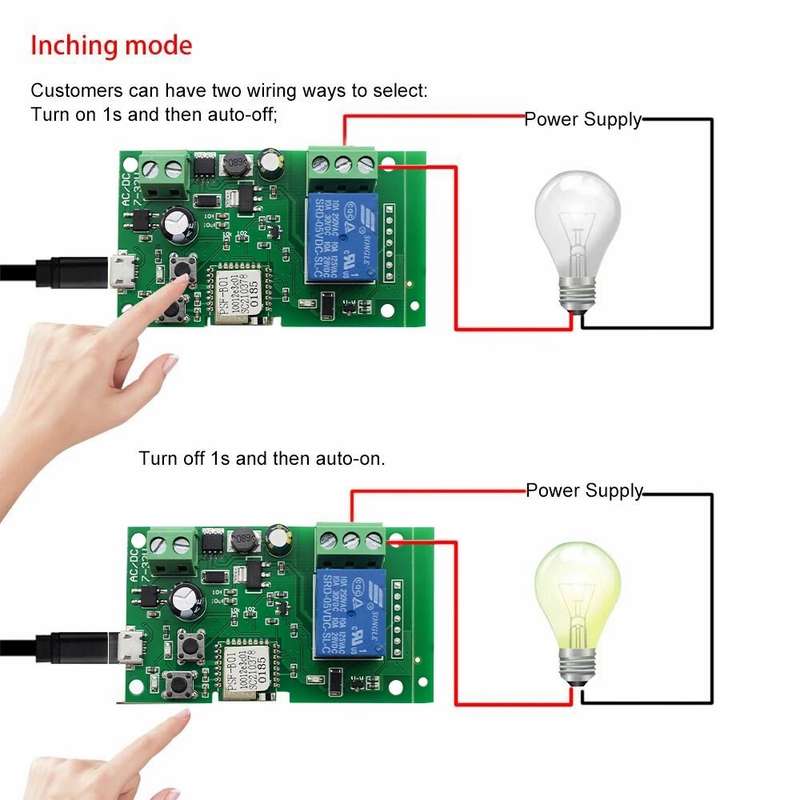

When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.
The first wiring option is to connect COM and NO with an appliance. In this case, when users press the setting button or use the APP to switch on, all connected appliance will be switched on for 1s and then automatically turned off.

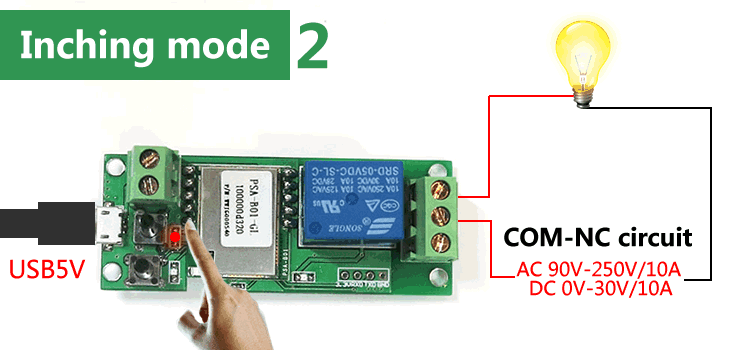

The second wiring method is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to switch off, all connected appliance will be turned off for 1s and then automatically turned on.
LED Indicator:
There are 3 LED indicators. The LED next to the self-lock/inching mode button indicates the working mode (on: self-locking mode, off: inching mode).
The LED next to the on/off setting button indicates WIFI status(enter pairing status: long press the setting button until LED blinks fast).
And the one below the relay indicates relay on or off status (on: turn on the connected device, off: turn off the connected device).
Note: the two models are not hackable.

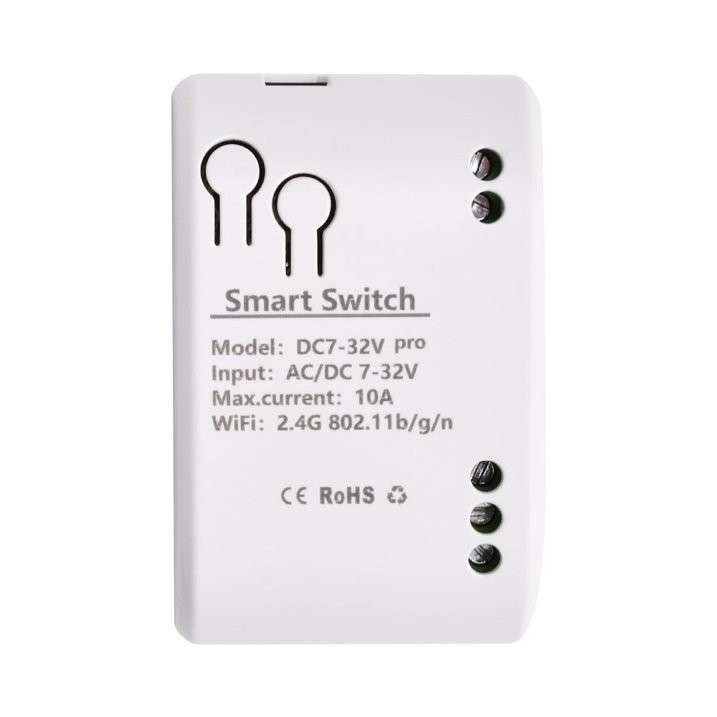

Specification

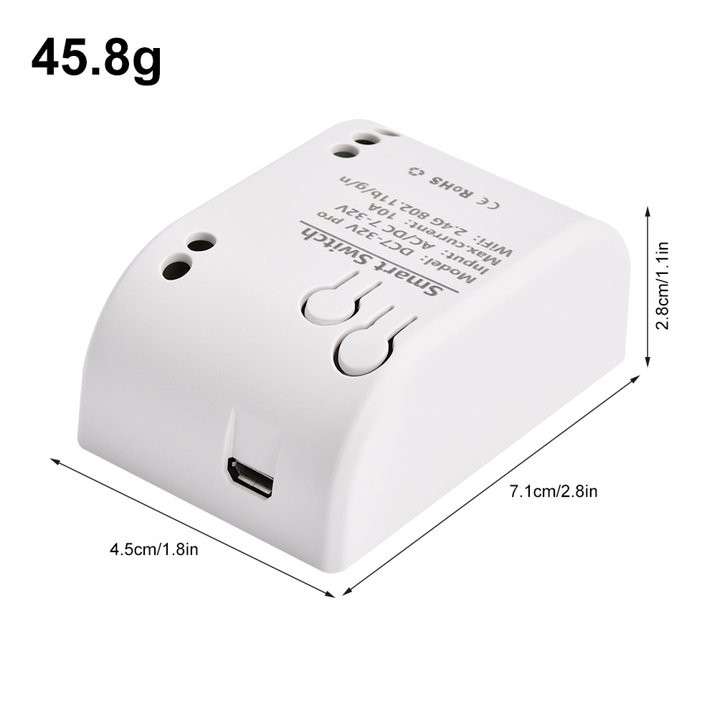

- Dimensions:70.5 x 27.4 x 23mm
- Power supply: 5V/12V (7-32V) DC
- LEDs: 3 LEDs which indicates working mode, wifi status, relay on/off status respectively.
- Two input interfaces
- Board consumption: <1W
- Standby current: 80mA
- Max input current: 10A
- Supports to control different voltage ranges
- Relay lifespan: more than one million times
- 100M electrical insulation resistance
- Electric shock voltage: 1000V
- Relay maximum pull time: 15ms
- Relay maximum release time: 5ms
- Operating temperature: 0ºC-40ºC(32°F-104°F)
- Operating Humidity 40% ~ 80% RH
- Works with Wifi 2.4GHz or RF 433MHz
