* Please note that the cable length may vary between 50cm and 100cm
Please note:

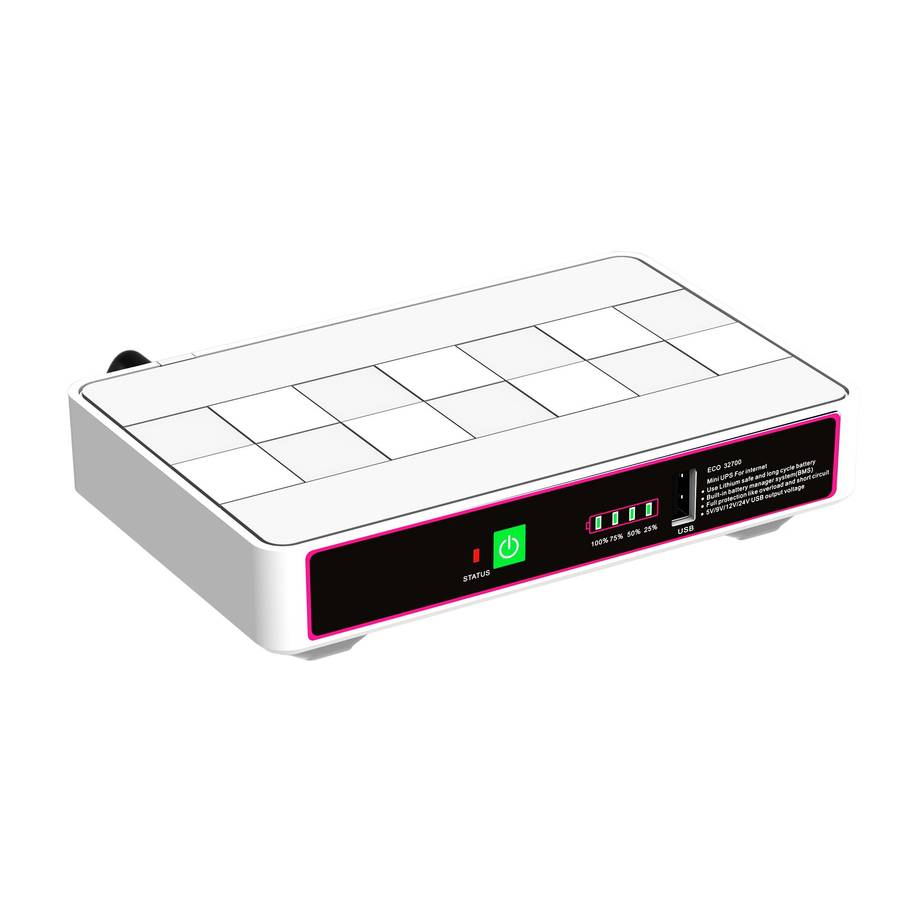

The 4 LED charge light indicators operate based on voltage, not the actual state of charge.
When the battery is fully charged (3.6V), all 4 lights will shine.
During use, the indicator will immediately decrease by 1 bar (from 3.2-3.3V).
When the battery is almost depleted, the indicator will quickly drop from 3 to 1 bar.
It's important to note that the LED lights are reading the voltage, not the actual state of charge.
Features
Wide range of AVR(Automatic voltage regulation)
- In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
Automatic self-detection when UPS on(LED)
- Before the UPS is on, red, yellow, blue LED will light up two times by cycle turns, after self-detection, the UPS switch to AC mode/battery mode or working mode.
Overload protection
- In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of the load is lower than the rated power then the output voltage will revert to the rated value, it ensures the UPS will not shut down by abrupt overload which is caused by surging current during the computer is working and other equipment is added.
Short circuit protection
- The UPS will shut down automatically for protection when there is a short circuit.
The low current switch
- This UPS adopts a low current switch to extend the service life which is longer than a conventional battery and a high current switch in AC current path.
Automatic charging
- There are two charging modes, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
With a bypass output
- Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
Specifications
Rated working Voltage: 100~240Vac/50-60Hz
Output Power(Max.): 18W

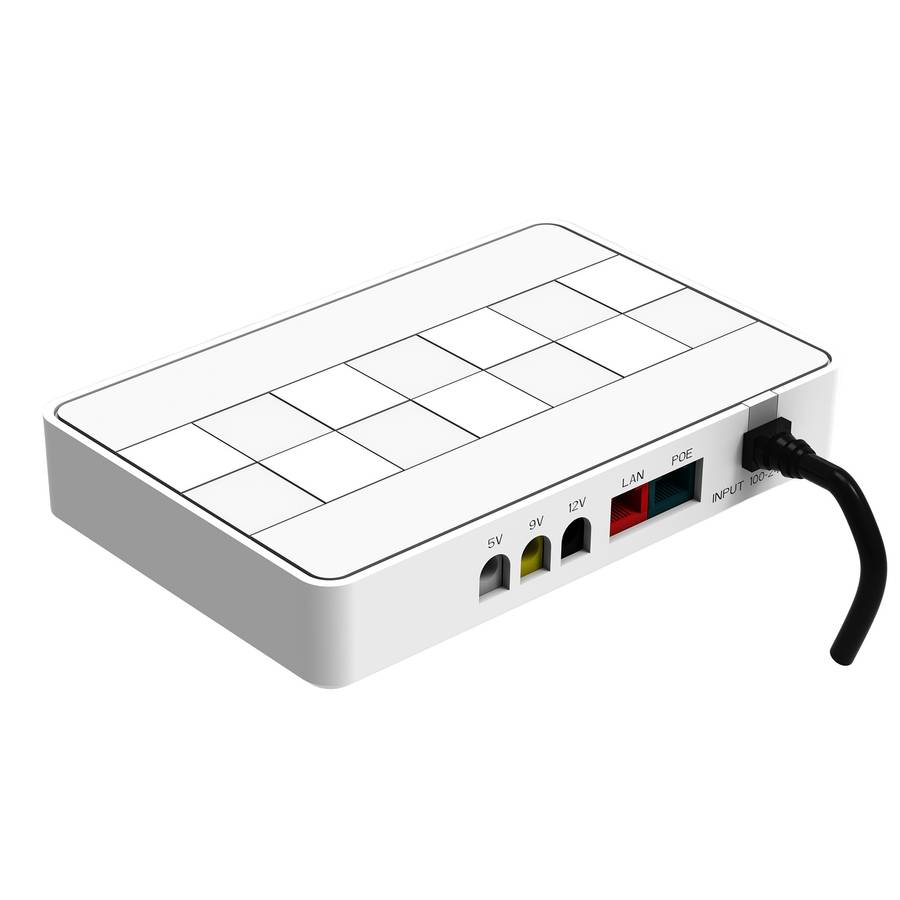

Interface(Ports): USB, DC 5V / 9V / 12V, LAN, POE
Output Voltage(Selectable): 5vDC / 9vDC /12Vdc, POE: 24Vdc
Output Power & Capacity of Battery: 2.0A/10W, 1.0A/9W, 1.0A/12W, POE (0.5A/24V)12W
| Model | GW 32700 |
| Input voltage | 100-240Vac/50Hz ~60Hz |
| Output Voltage | 18W |
| Output Voltage (selectable) | USB interface | DC interface | | POE interface |
| 5Vdc | 9Vdc | 12Vdc | 15Vdc/24Vdc |
| Output Polarity | Standard |  | +4, 5pins, -7, 8pins |
| Output power & current (in common) | 2.0A/10W | 1.0A/9W | 1.0A/12W | (0.5A/24V)0.5A/)12W |
| QTY & Capacity of battery | LifePO4 12000mAh (38.40Wh) |
| Charging Period | Typical: 2~3 Hours |
| Physical | |
| Unit Dimension (mm) | 160 x 105 x 28mm |
| Net Weight (kg) | 0.5 |
| Environment of performance | Temperature 0~40 degrees, Humidity 20%~90% |
| Noise Level | Less than 40dB |
