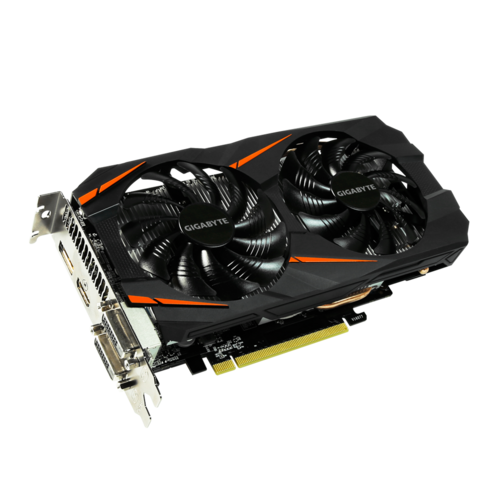

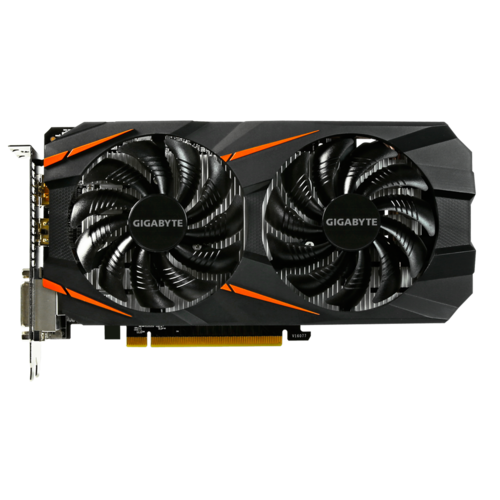

GeForce® GTX 1060 WINDFORCE OC 3G

Features

Powered by GeForce® GTX 1060

Integrated with 3GB GDDR5 192bit memory

WINDFORCE 2X with Blade Fan Design

Support up to 8K display @60Hz

Built with 4+1 power phases

Core Clock

Boost: 1797MHz/ Base: 1582MHz in OC Mode

Boost: 1771MHz/ Base: 1556MHz in Gaming Mode

Graphics Processing

GeForce® GTX 1060

Core Clock

Boost: 1797 MHz / Base: 1582 MHz in OC mode

Boost: 1771 MHz / Base: 1556 MHz in Gaming mode

CUDA® Cores

1152

Process Technology

16 nm

Memory Clock

8008 MHz

Memory Size

3 GB

Memory Type

GDDR5

Memory Bus

192 bit

Card Bus

PCI-E 3.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

H=39 L=223 W=121 mm

PCB Form

ATX

DirectX

12

OpenGL

4.5

Recommended PSU

400W

Power Connectors

6 pin*1

Output

Dual-link DVI-D *2

HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)

Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)
