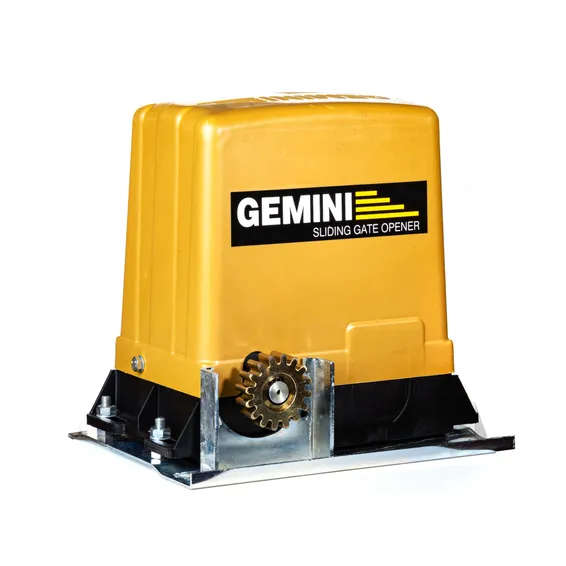

Gemini 7AH Sliding Gate Motor Excluding Rack S00122

Specifications
Brand: Gemini
Model: Gemini Slider 7AH
Input voltage: 220V
Motor voltage: 12V DC
Motor size: 120 Watt
Electrical consumption: 220-260 V / 150 Milli amps
Backup power: Securi-Prod 12V 7.2AH Battery
PCB Controller: Gemini DC Slider 12V SEL Controller PCB
Power Supply: Gemini DC Slider Power Supply SEL 12V
Compatible remotes: 1 Button and 3 Button
Compatible receiver: Single channel code hopping
Compatible anti theft bracket: Gemini DC Slider Anti Theft Bracket
Pull force: 15 Kgf
Gate speed: 22 meter/min
Maximum daily cycle: 30 cycles per day
Motor dimensions: 340mm(l) x 265mm(w) x 340mm(h)
Motor weight: 10.2Kg

Instructions for use
Refer to detailed installer manual.

Maintenance and care
Ensure that the track is kept clear from stones, dirt or any obstruction. Gate brushes can be installed to assist in clearing the obstructions.
Ensure that the Gate wheels V profile, Gate wheels U profile or GateshoX run freely.
Manual override the motor and check that the gate runs freely without any obstruction.
Check that the rack is properly secured to the gate and that it does not press down on the operator pinion at any point while opening or closing.
Clean around the motor area to ensure that vegetation does not grow to close to the motor and pinion.
Check that the key still opens and closes the lock barrel and lubricate if necessary.
Inspect the inside of the motor by removing the cover and ensure that it is clear of any insects and dust.

Warnings and limitations
All installations must be done by a suitable qualified technician.
Under no circumstances may any of the components be modified.

What's in the box
1 x Gemini Slider DC Gate Motor 7Ah
1 x 12V 7.2Ah Securi-Prod Battery
2 x Gemini 3 Button 433Mhz code hopping remotes
1 x Base Plate and mounting accessories
1 x Learning Stoppers
1 x 50ml Gearbox oil
1 x Instruction Manual
