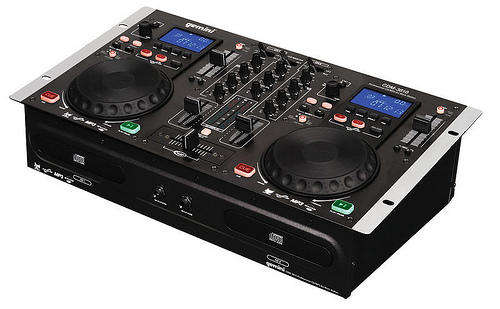

Gemini’s CDM-3610 is a dual MP3/CD mixing console that provides easy-to-use track search and playback across two MP3/CD decks. Ideal for mobile DJ rigs or club installations and loaded with song-shaping tools such as Reverse, Scratch and Brake effects, Loop section, pitch bend (+/- 16%), and variable pitch control (+/- 4, 8, 16%) as well as powerful playback tools such as instant-start and cue with preview, single and continuous play modes, and program function with repeat, the CDM-3610 brings unparalleled flexibility in an all-in-one unit.
Finally, the CDM-3610 boasts a mixer section with a 3-band EQ w/ Gain Control and an array of inputs/outputs for all your devices. The CDM-3610 provides powerful functionality and affordability to bring your DJ set to a whole new level.
Features:
* Audio CD, CD-R, & MP3 compatible
* Anti-shock using RAM buffer memory
* Large blue backlit LCD display with text for MP3
* 3 Selectable Jog modes Scratch Effect/Cue Search/Pitch Bend
* Instant-start & cue with preview
* Instant reverse for added effect
* Brake mode for vinyl-like stops
* Fader-Start capability
* High speed rotary track search
* Single & Continuous play mode
* One seamless loop per side with reloop
* Pitch bend via jog wheel or buttons +/- 16%
* Three mode time selection
* Frame accurate search
* Rubber jog wheels with finger grips
* Variable pitch control with three settings +/- 4, 8 & 16
* Fully programmable with repeat function
Mixer Section
* 3-band EQ w/ Gain Control
* 1/4” headphone output
* XLR and 1/4” mic input
* Auxiliary Inputs for Phono or Line devices
Specifications:
* General
o Type: Compact Disc Player
o Disc Type: Standard Compact discs (12 cm & 8 cm)
o Time Display: Track Elapsed, Track Remain
o Variable Pitch: ± 16% Slider with Resume Switch
o Pitch Bend: ± 16-% Maximum
o Maximum Instant Start: Within 0.03 seconds
o Installation: 19" each
o Dimensions: 482 x 110 x 260 mm
o Weight: 5.5 kg
* Audio Section
o Quantization: 1 Bit Linear/Channel, 3 Beam Laser
o Oversampling Rate: 8 Times
o Sampling Frequency: 44.1 kHz
o Frequency Response: 20 Hz to 20 kHz
o Total Harmonic Distortion: Less Than 0.05%
o Signal to Noise Ratio: 85 dB
o Dynamic Range: 85 dB
o Channel Separation: 85 dB (1 KHz)
o Power Supply: AC 100/240V, 60/50 Hz
o Inputs
+ Phono: 3mV,47 KOhm
+ Line: 150 mV, 27 KOhm
+ Mic: 1.5 mV, 1 KOhm balanced
o Outputs
+ Max: 20V Peak-to Peak
+ Rec: 225 mV, 5 KOhm
