The GEMINI Slider 7AH 500 Sliding Gate Operator Kit is a comprehensive, self-contained residential gate automation system engineered to handle sliding gates weighing up to 500 kg. Constructed around a robust, oil-filled worm drive unit, it delivers dependable pulling force and a high daily duty cycle for domestic properties. This complete bundle simplifies installation by supplying the foundational mechanical and tracking components in a single package. For homeowners or security installers seeking an all-in-one, battery-backed automation system that bypasses complex external charging layouts while delivering exceptional physical durability, this kit provides a hardened, field-tested security boundary solution.
Continuous Operation During Power Failures: Powered by an integrated 12V DC system backed by a 7Ah sealed lead-acid battery, ensuring your property perimeter remains fully automated and secure through extended load-shedding cycles or unexpected grid dropouts.
Oil-Bath Worm Drive Mechanical Layout: Employs an internal 20W50 oil-filled gearbox featuring a 33:1 reduction ratio. This setup provides continuous fluid lubrication to internal gears, substantially minimising heat buildup and mechanical friction compared to dry grease alternatives.
Adaptive Obstruction Sensing Safety: Programmed with precise electronic collision detection across both opening and closing cycles. The motor monitors current draw variations and instantly stops and reverses the gate panel upon encountering physical resistance, protecting pedestrians and vehicles.
Pre-Assembled 4-Meter Tracking Profile: Supplied with 4 meters of robust steel angle-drive rack. This rigid gear profile ensures direct torque transmission from the motor's drive pinion without the flex or structural warping often found in nylon alternatives over long spans.
Intelligent Soft-Start & Soft-Stop Logic: Electronic motor acceleration control mitigates mechanical inertia jolts at the start and end of every cycle, protecting track end-stops, wheels, and the internal motor pinion from structural impact wear.
Selectable High-Traffic Multi-User Settings: Features an integrated townhouse logic program that ignores intermediate open/close commands during an opening cycle, avoiding vehicle trapping or accidental mid-cycle reversals in shared entrances.
The integrated electronic control card features a flexible terminal array that acts as an access control hub. It is natively compatible with Gemlink Smart Ecosystems and GSM Intercom Modules for remote cellular logging, SMS triggering, and remote diagnostic checks. The terminal block features dedicated, dry-contact normally open/normally closed inputs for immediate integration of:
Safety infrared active beams (highly recommended for auto-close safety)
Wired or wireless external access control keypads
Pedestrian key switches or push buttons
220V AC auxiliary courtesy light relays
The onboard code-hopping radio receiver natively supports up to 30 individual remote transmitter buttons, using rolling-code encryption to block signal-cloning attacks.

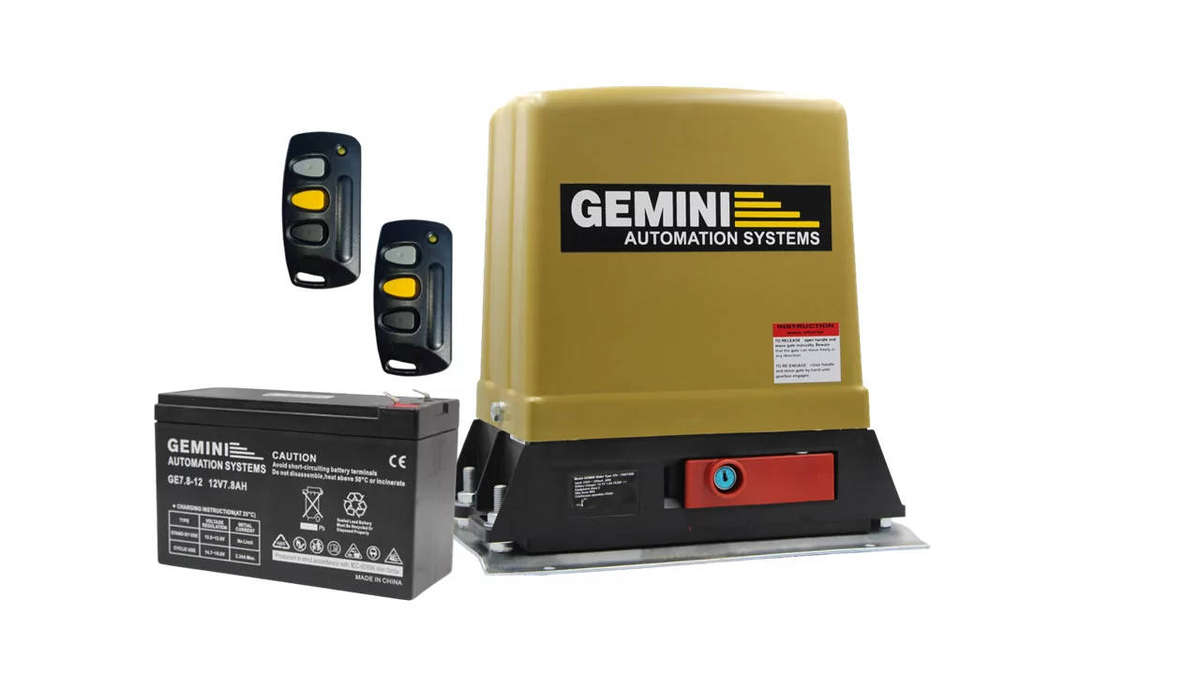

1 x GEMINI 7Ah DC Slider Motor (120 Watt / 12V DC Unit)
1 x Integrated Electronic Control Card (PCB) with Onboard Receiver
1 x Heavy-Duty Rust-Treated Baseplate (Includes Mounting Washers, Anchor Nuts, and Bolts)
1 x Internal Power Supply Charger (220V260V AC Input / 150mA Output)
1 x 12V 7Ah Sealed Lead-Acid Backup Battery
4 x 1-Meter Strips of Heavy-Duty Steel Drive Rack
2 x GEMINI Tx3 3-Button Remote Transmitters (Code-Hopping)
2 x Manual Override Release Keys (For mechanical disengagement)
1 x Weather-Resistant Outer Protective Cover
1 x Internal PCB Plastic Protective Cover (Includes 3 x Replacement Fuses)
1 x Red Gearbox Breather Pin Clip
1 x 50ml Lubrication Bottle (20W50 Grade Oil for initial gearbox initialization)

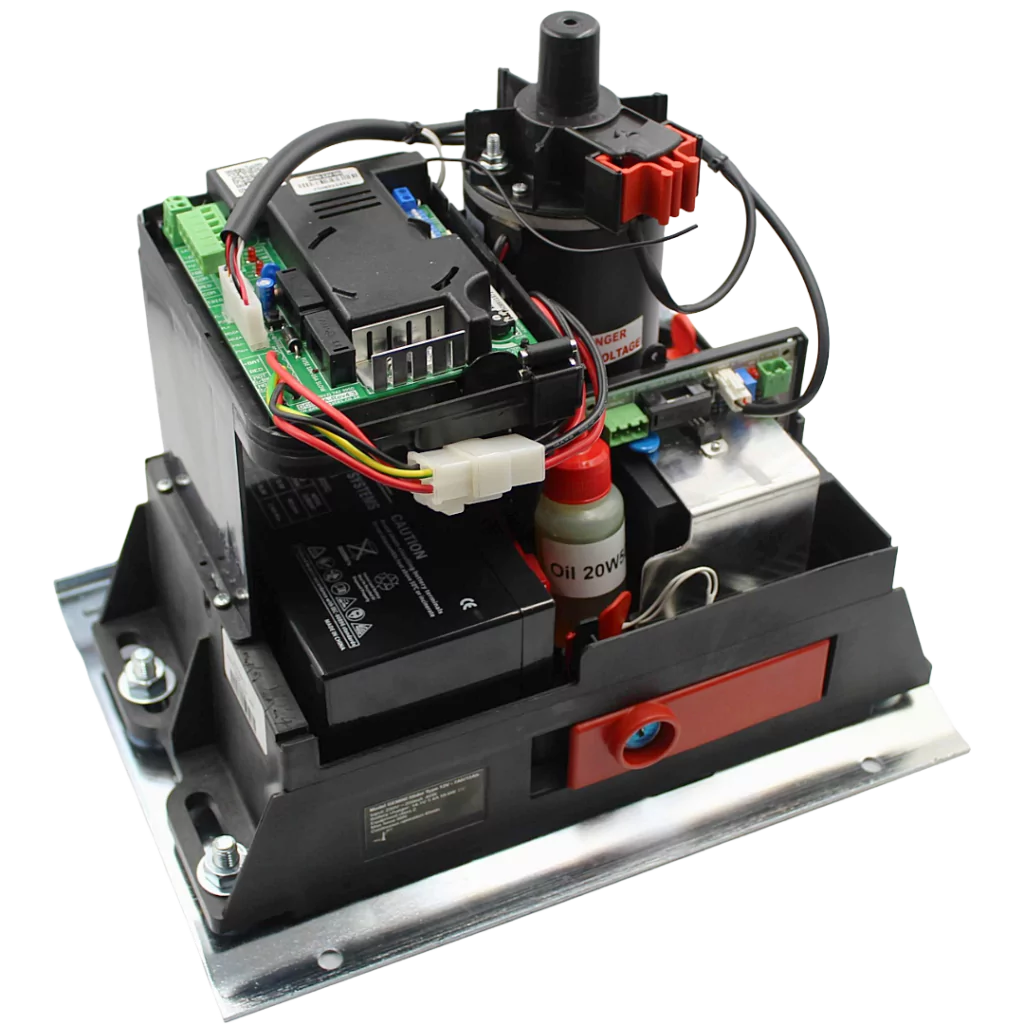

Initial Oil Filling Requirement This motor features a precision-milled worm drive assembly that runs inside a sealed oil-bath crankcase. It is shipped dry to prevent fluid leakage during distribution. Crucial Step: You must pour the supplied 50ml bottle of 20W50 lubrication oil into the gearbox port and insert the red breather pin before turning on the power or cycling the motor. Running the drive gear assembly dry will cause immediate, irreversible thermal galling of the internal gears and void the mechanical warranty.
Steel Drive Rack Installation Mechanics The included 4 meters of steel drive rack must be welded or bolted securely to the lower gate framework. When setting up the motor pinion clearance, ensure a uniform 2mm vertical gap exists between the top teeth of the motor pinion gear and the valleys of the steel drive rack across the entire travel span. Never allow the weight of the gate to rest directly onto the motors drive shaft pinion, as this causes rapid dual-bearing failure and shaft deflection.
Auto-Close Safety Requirement While the control card allows you to enable the convenient "Auto-Close" function via onboard dip-switch toggles, this feature must never be activated without installing functional safety infrared beams. If the auto-close timer counts down while a vehicle or pedestrian is stopped in the gate path, the motor will close on the obstruction. Safety beams act as a failsafe interlock that overrides the timer whenever the optical path is broken.
