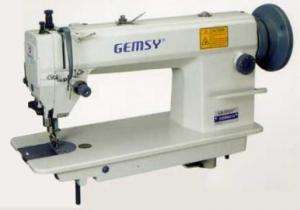

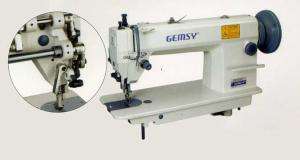

Gemsy 0303 - Industrial Walking Foot Machine

The Gemsy 0303 is a flat-bed style waking foot machine for use on medium & heavy weight materials.

Good for leather, vinyl and heavy work when straight stitching.

It features a top feed walking foot and bottom feed system, with an alternating foot lift mechanism that is suitable to sew medium & medium-heavy weight materials such as leather, synthetics, canvas, plastics, webbing, upholstery, tarpaulin plus heavier than normal standard fabrics.

This Machine is also Suitable to stitch Sandles & Belts

The balanced sewing machine head benefits from automatic lubrication to reduce wear & tear, resulting in improved durability, lower noise levels, smoother running and minimal maintenance costs.

The fitting of a large hook & base as standard, reduces the number of bobbin changes and helps when using the thicker threads associated with heavier than normal materials.

Thick sewing needles are used from size 110 up-to the extra thick size 180.

It comes complete with sewing machine table and motor. (Assembly is required)

• Large Hook & base
• Auto hook lubrication
• Auto head lubrication
• Reverse stitch lever

• Large stitch feature up-to 8mm

Specifications:

• Max sewing speed: 2000rpm
• Stitch length: 0-8mm
• Needle bar stroke: 35mm
• Presser foot lift by hand: 1/4" (6mm)
• Presser foot lift by foot: 1/2" (13mm)
• Height of presser foot :6/13mm
• Needle size: DPx17 #18-24
• Measurements :575x255x530mm
• Motor :clutch motor
• Net weight :25.5/30 kg
• Flat-bed style machine.
• Can sew very heavy materials .
• Low noise.

• Comes with standard Clutch Motor

• Additional Charge for Servo Motors

• 6 Months Warranty
