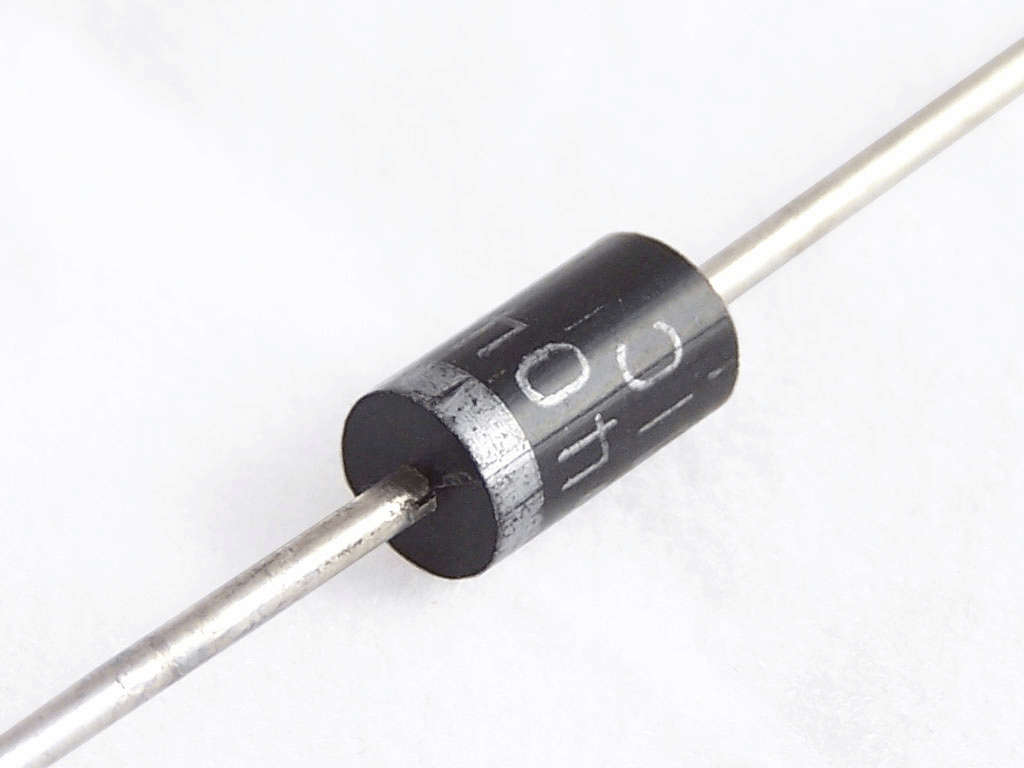

General Purpose Diode (pack of 10)

New 10 were available
R42.20
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
639233
Bob Shop ID
593184057

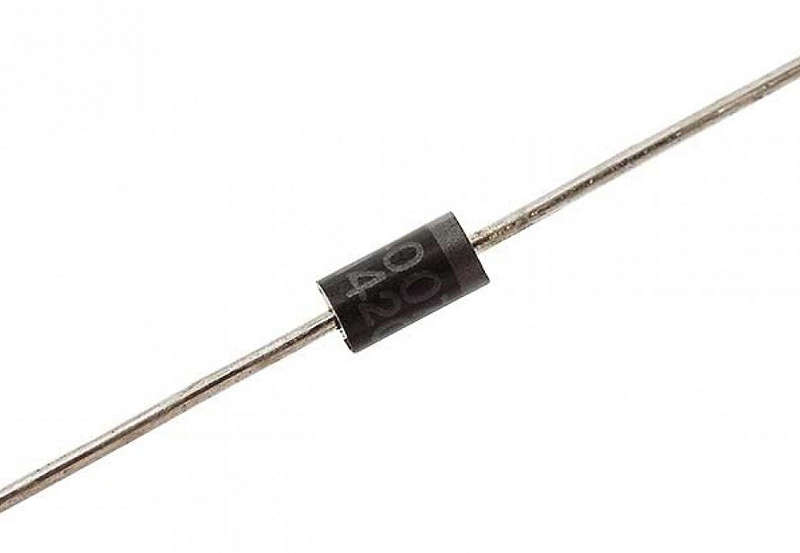

Diode 1N4001 (pack of 10)

These are widely used general-purpose diodes. It is normally built to use as a rectifier in the power supplies section of electronic appliances for converting AC voltage to DC with other filter capacitors. It is a diode of the 1N400x series in which there are other similar diodes from 1N4001 to 1N4007, and the only difference between them is the max repetitive reverse voltage.

 Moreover, it can also be used in any general-purpose application where there is a need for a general diode. The 1N400x series diode is built for working with high voltages and can easily handle voltage below 1000V. The 1000mA or 1A average current, 3W power dissipation with small size, and lost cost also make it ideal for various applications.

Features

  • Forward Current: 1A
  • Surge Current: 30A
  • Forward Voltage: 1.1V
  • Reverse Voltage: 50V
AttributeValue
Mounting TypeThrough Hole
Package TypeDO-41
Maximum Continuous Forward Current1A
Peak Reverse Repetitive Voltage1000V
Series1N4001 - 1N4007
Diode ConfigurationSingle
Rectifier TypeGeneral Purpose
Diode TypeRectifier
Pin Count2
Maximum Forward Voltage Drop1V
Number of Elements per Chip1
Diode TechnologySilicon Junction
Diameter2.7mm
Peak Non-Repetitive Forward Surge Current30A

Datasheet
