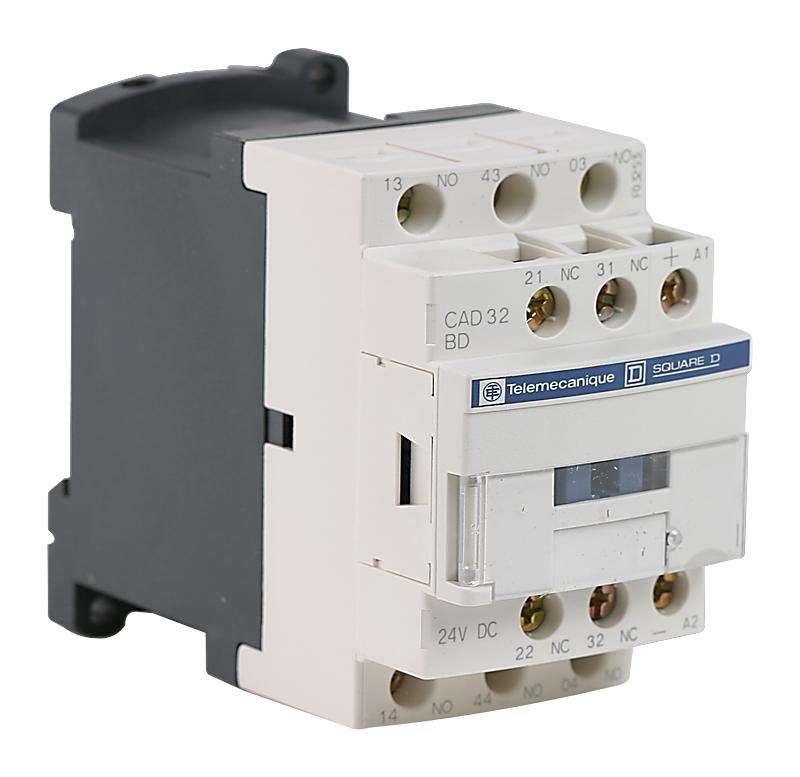

The CAD32BD from Schneider is a TeSys D control relay. The IEC type industrialcontrol relay for connection by screw clamp terminals. Conforming IEC 60947-5-1,NF C 63-140, VDE 0660, BS 4794, EN 60947-5 standards and UL, CSA certified.3NO + 2NC contact configurationDC control circuitControl circuit voltage is 24VDCConventional free air thermal current is 10AInrush power is 5.4WRated operational voltage is 690VDCDimension is 99mm x 45mm x 95mm (H x W x D)Standard coil
