GEPRC ELRS DUAL 2.4G Dual-Antenna Long Range Low Latency Open Source True Diversity Receiver for FPV

GEPRC ELRS DUAL 2.4G Dual-Antenna Long Range Low Latency Open Source True Diversity Receiver for FPV RC Racer Drone

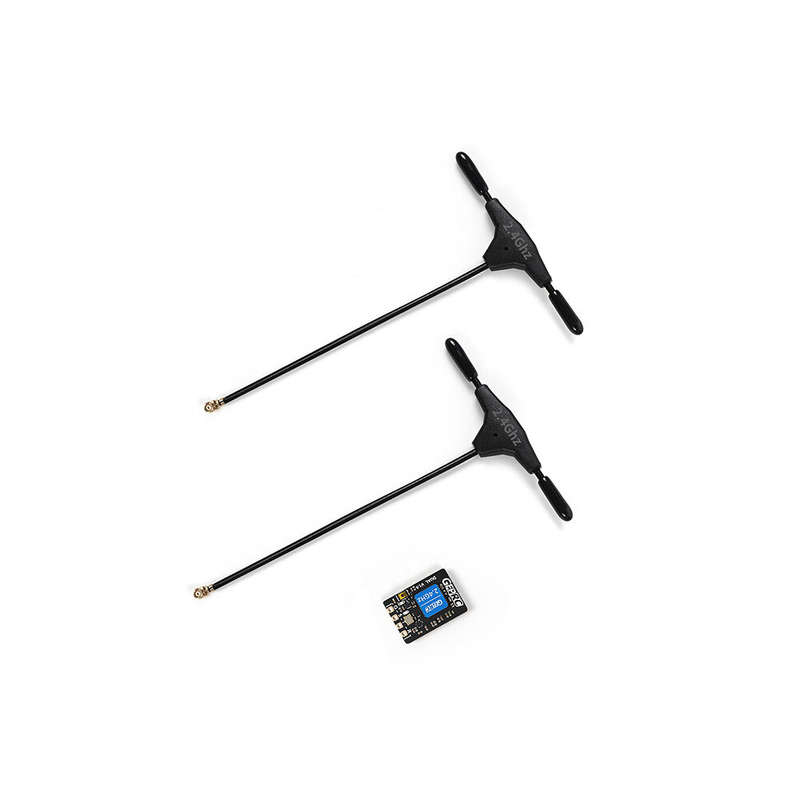

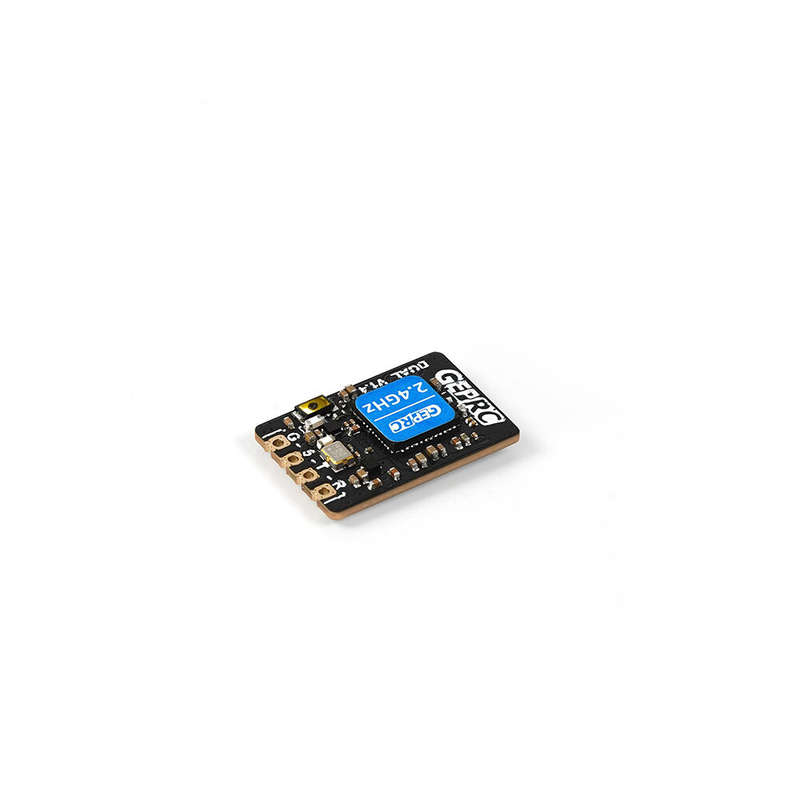

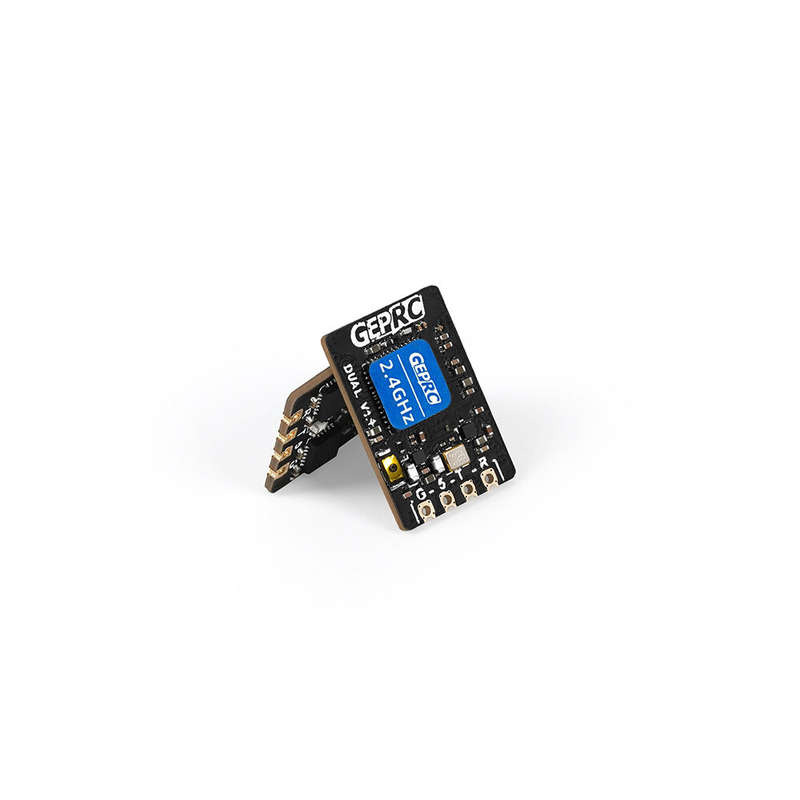

SummaryGEPRC ELRS DUAL 2.4G Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.The ELRS DUAL 2.4G Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shift caused by temperature changes and the telemetry power is up to 100mW.

Description:

Brand: GEPRC

Item: ELRS DUAL 2.4G Receiver

Chips: ESP32-PICO-D4, SX1281Crystal Oscillator: TCXOFrequency Band: 2.4GHz ISMRefres
