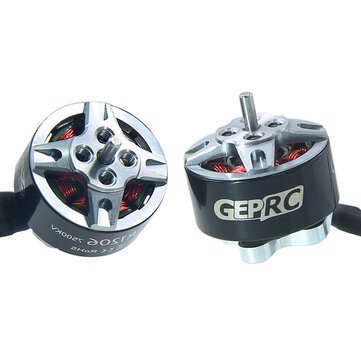

GEPRC GR1206 3600KV 4500KV 6000KV 7500KV 2-4S Brushless Motor for RC Drone FPV Racing (KV: 3600KV)

New

12 were available

R614.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3865

92.71 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

609832736

SELECTED OPTION:
KV: 3600KV

GEPRC GR1206 4500KV 6000KV 7500KV 2-4S Brushless Motor for RC Drone FPV Racing

Description():

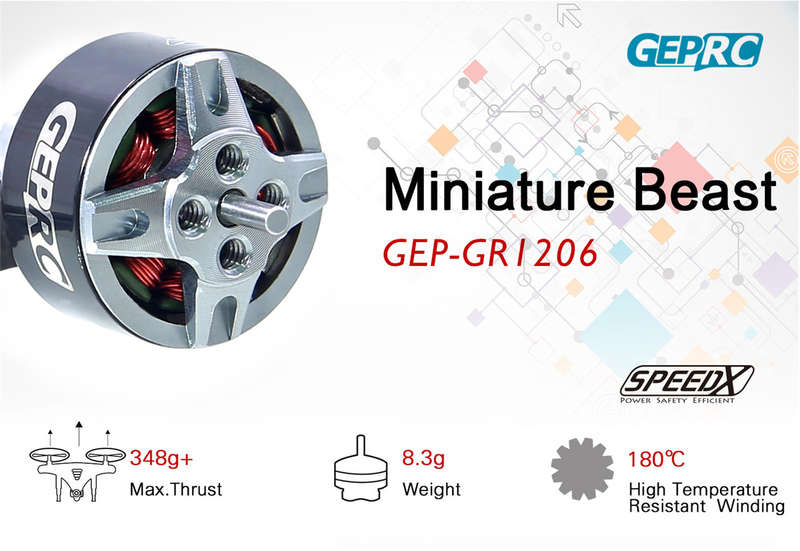

? ?The?Micro-FPV quads?gives players a lot of fun, but the power is also being upgraded. The new GEP-GR1206 will be a stronger power output.
GR1206 will have 3 KV options to meet players` needs for different situations.The 4500KV is recommended with 3-inch propeller and 3~4S battery.
The 6000KV is recommended with 2.5~3 inch propeller and 3S batteries.The 7500KV is recommended with 2.5 inch propeller and 3S battery.

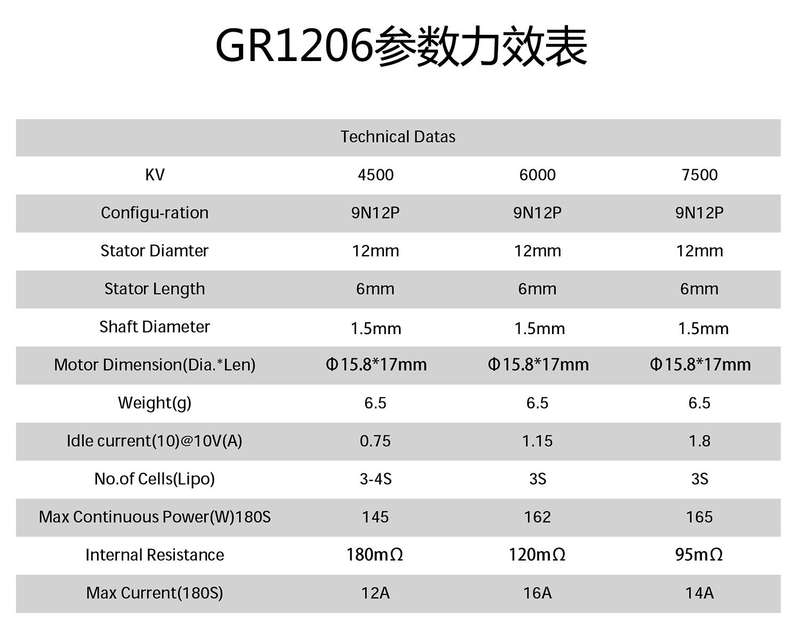

Specification:
-?Item name: GEP-GR1206
-?KV: 4500KV/6000KV/7500KV
-?Configuration: 9N12P
-?Stator Diamter: 12mm
-?Stator Length: 6mm
-?Shaft Diameter: 1.5mm

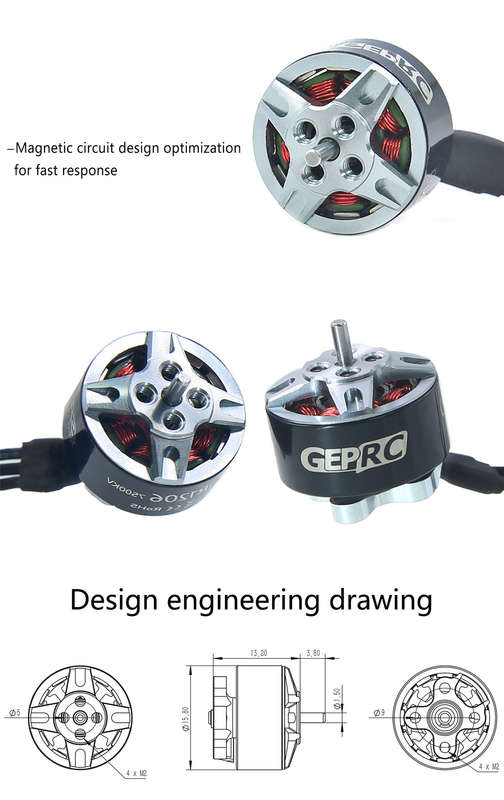

-?Motor (Dimension(Dia.*Len)): ?|?15.8*17mm
-?No.of Cells(Lipo): 2~4S
-?Internal Resistance: 180m??/120m??/95m??
-?Max Current(180S): 15A
-?Rotor: N52H arc magnets
-?Bearings: NMB 520
-?Base casing: Al 7075
-?Wire AWG: 28AWG

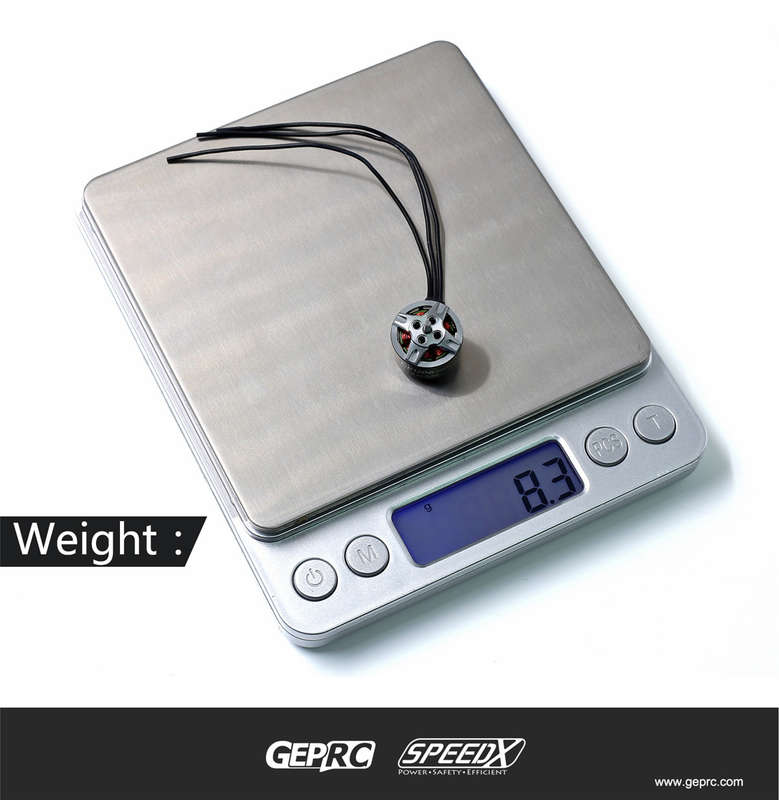

-?Weight(g): 8.3g

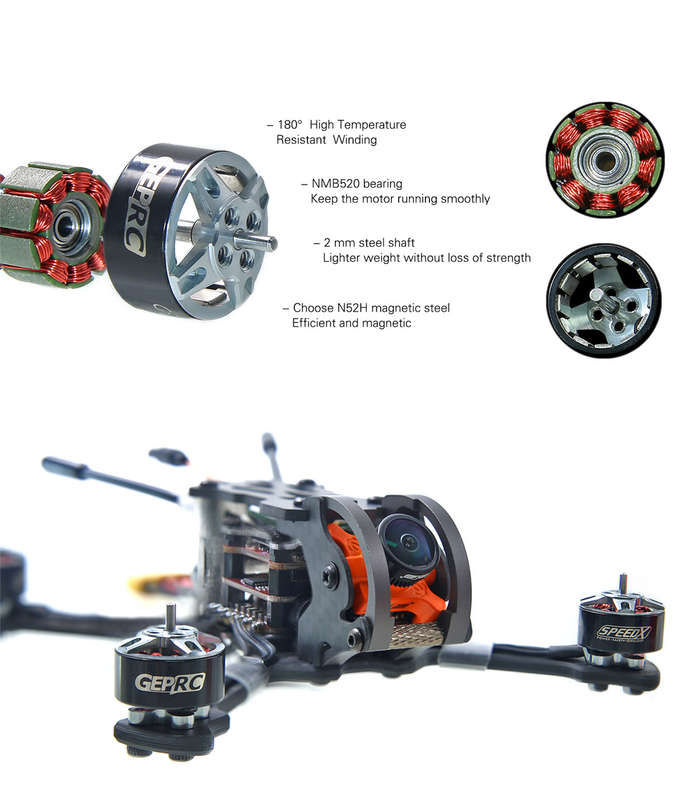

Features:??
1.?The new 1206 brushless motor has a stronger power output
2.?Lightweight base design, no change in weight reduction intensity

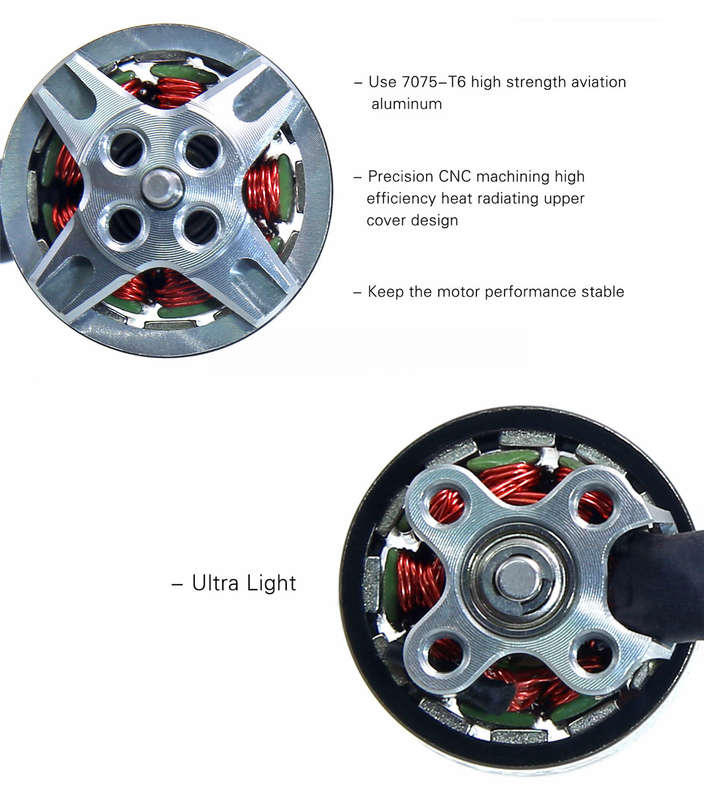

3.?The upper cover is specially designed for efficient heat dissipation and strong structure
4.?Precision CNC processing, aviation aluminum 7075 aluminum, high precision, high strength
5.?N52H magnet is adopted to ensure torque and high temperature resistance without losing magnetism
6.?NMB520 bearing of Japan ensures low vibration and low noise when the motor runs at high speed
7.?Excellent heat dissipation structure design and 20% reduction of temperature of the same type of motor
8.?180 a?? high temperature resistant enameled wire
9.?Reliable magnetic circuit optimization, smoother start
10.?The weight is only 8.3g (including wire)

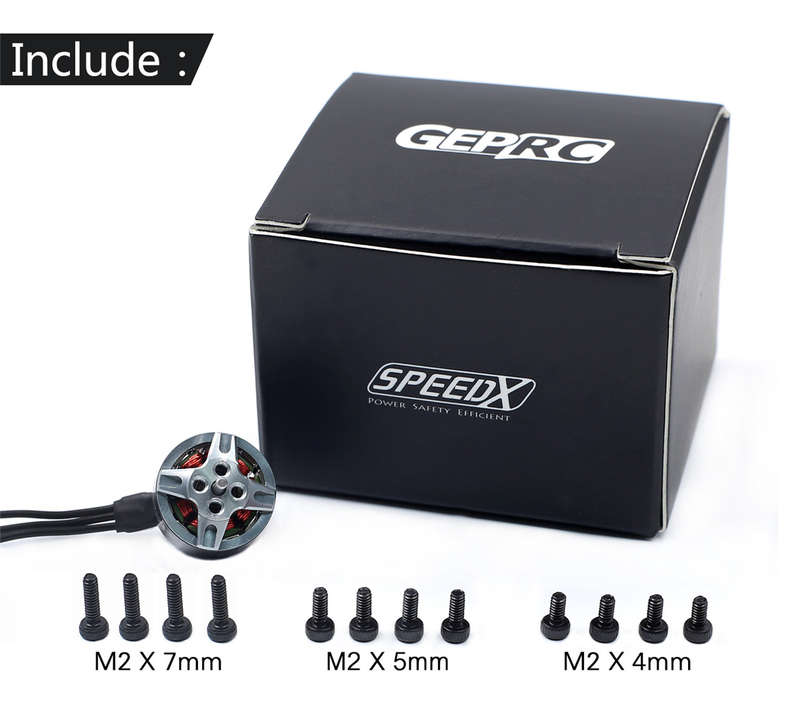

Package included:
1 x GR1206 motor
4 x M2*4?screws
4 x M2*5?screws
4 x M2*7?screws
