Overview:

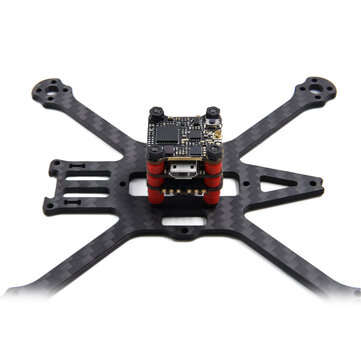

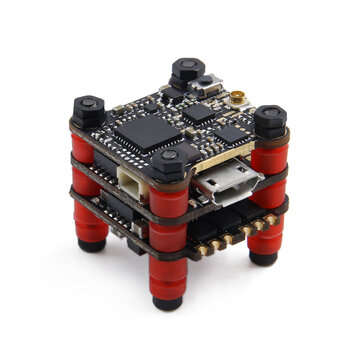

The GEPRC STABLE F411 micro tower electronic system is one of the best electronic system solution for micro quads on the market.
STABLE F411 is equipped with F411 FC, 4IN1 BLS 12A ESC and 5.8G PIT/25/100/200mW, ?It supports 2-4S batteries,?which could meet all kinds of demand environment. With the three-layer structure design and completely optimized pad structure, wiring is simpler and more reasonable.

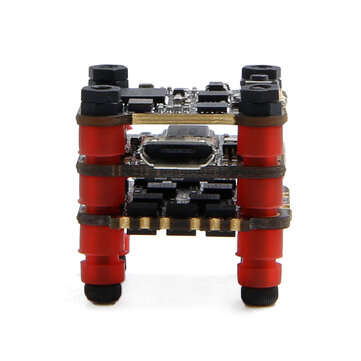

STABLE F411 adopts 16*16 mm mounting holes and pin-type modular design. Supporting IRC TRAMP protocol, you can directly adjust VTX frequency, frequency and flight control parameters in the OSD interface, which is very convenient and easy to use. With LED interface, you can program your LED strip with Betaflight Ground Station. You can clearly see aircraft?????s voltage, current, battery usage and other information with integrated OSD chip.
STABLE F411 is equipped with a 200 mW VTX, which can easily cope with various flight environments. While the build-in PIT mode (low power mode) is very convenient for competition use, and your VTX will not affect others when adjusting the frequency. A professional 5.8G rod antenna is equipped to achieve ideal transmission effect.
STABLE F411 supports a variety of receivers including Sbus, PPM, CRSF, DSMX, iBus protocols, which can be used with your remote control.
?
Main Feature:
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- Continuous current: 12A
- Input voltage : 2-4S LIPO
- Power : PIT/25/100/200mW
- Integrated LC Filter

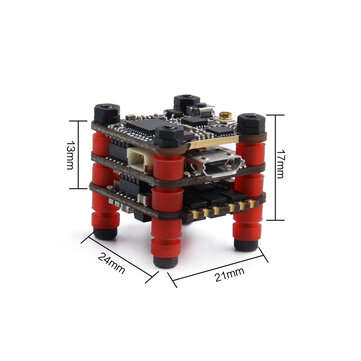

- Mounting holes: 16mm*16mm
- Support:Sbus,PPM,CRSF,DSMX,iBus

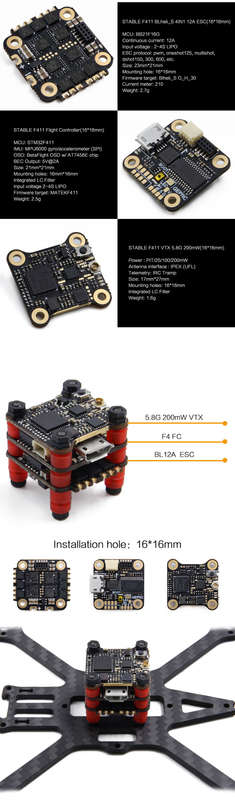

STABLE F411 Flight Controller(16*16mm)
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@2A
- Size: 21mm*21mm
- Mounting holes: 16mm*16mm
- Integrated LC Filter
- Input voltage 2-4S LIPO
- Firmware target: MATEKF411
- Weight: 2.5g
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
- MCU: BB21F16G
- Continuous current: 12A
- Input voltage : 2-4S LIPO
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mm*21mm
- Mounting hole: 16*16mm
- Firmware target: Blheli_S G_H_30
- Current meter: 210
- Weight: 2.7g
STABLE F411 VTX 5.8G 200mW(16*16mm)
- Power : PIT/25/100/200mW
- Antenna interface : IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mm*27mm
- Mounting holes: 16*16mm
- Integrated LC Filter
- Weight: 1.6g
User Manual, ?

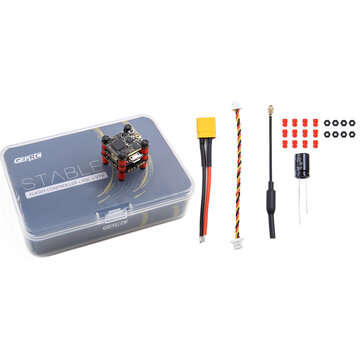

Package Included:
- 1 x STABLE F411 Flight controller
- 1 x STABLE F411 BLheli_S 4IN1 12A ESC
- 1 x STABLE F411 VTX 5.8G 200mW
- 1 x 5.8G Antenna
- 1 x XT30 Cable
