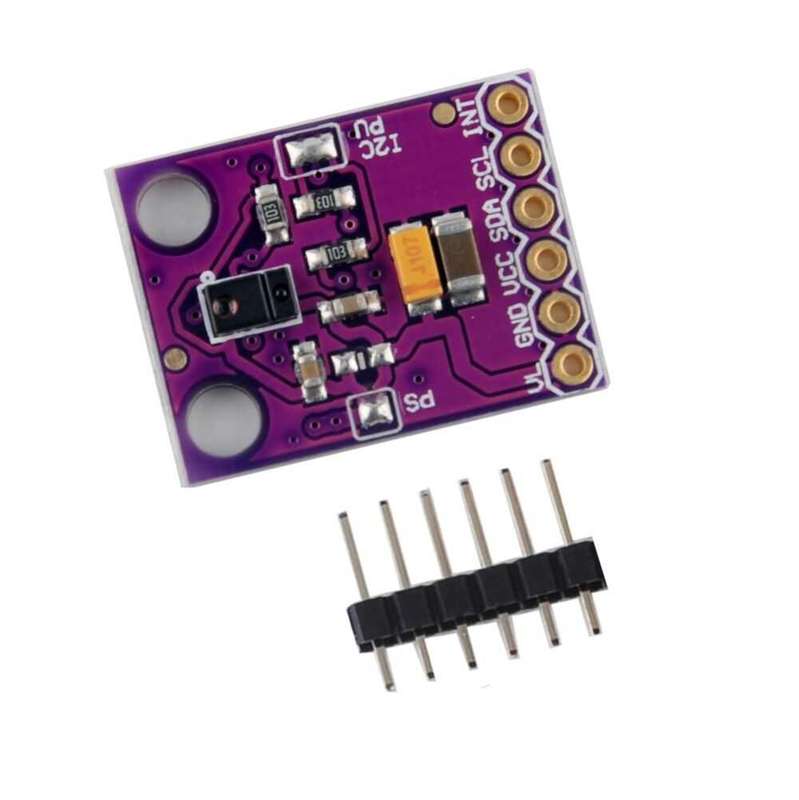

Gesture sensor GY-9960 APDS9960

Gesture sensor GY-9960 APDS9960

New 12 available
R102.93
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SEN-009
Bob Shop ID
614718039

This breakout has quite a few sensors!

  • Gesture sensing,
  • RGB colour sensing,
  • Proximity sensing,
  • Ambient light sensing

When connected to your microcontroller it can detect simple gestures (left to right, right to left, up to down, down to up are currently supported), return the amount of red, blue, green, and clear light, or return how close an object is to the front of the sensor. This device uses an I2C interface so it's easy to wire up and use.

Infrared gesture sensor module features:

  • Model: GY-APDS9960-3.3
  • Using the chip: APDS-9960
  • Power supply: 3.3v
  • Communication: IIC communication protocol
  • Size: 20mm * 15.3mm
  • Description: This is a small breakout board with a built-in APDS-9960 sensor that offers ambient light and colour measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price.
  • The APDS-9960 is a serious little piece of hardware with built-in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience, the following pins have been broken out: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm).

Colour sensing - Arduino library and code examples for the gesture sensor APDS9960:  https://github.com/adafruit/Adafruit_TCS34725

or this one, gesture sensing from Spark fun: https://github.com/sparkfun/SparkFun_APDS-9960_Sensor_Arduino_Library/
