Product details

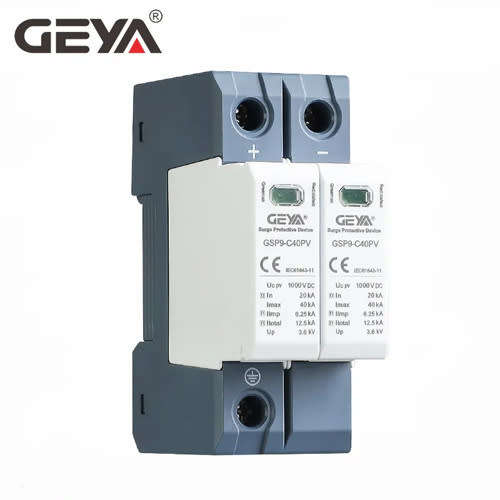

GEYA Solar PV DC Surge Protector 2P SPD 1000VDC 40KA GS-P9-C40PV
GSP9 DC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage.
Widely used in photovoltaic comber box, power inverter, DC distribution cabinet etc.
It has advantages of large discharge current, fast respond time, low residual voltage. Max. PV voltage up to UCPV 1000V dc.
Main features
1. High discharge capacity, quick response, module pluggable;
2. Fast response time, din rail installation;
3. Double thermal disconnection devices, provide more reliable protection;
4. Green window means normal, red means defect, need to change module;
5. Remote alarm terminal optional.
6. T1+T2 surge protection.

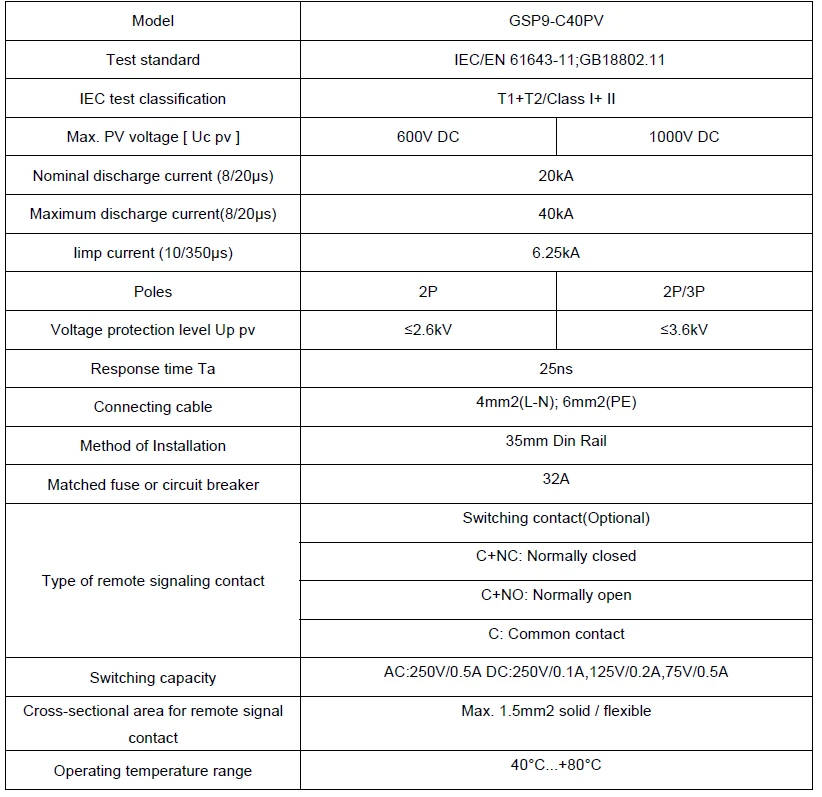

Technical Data
