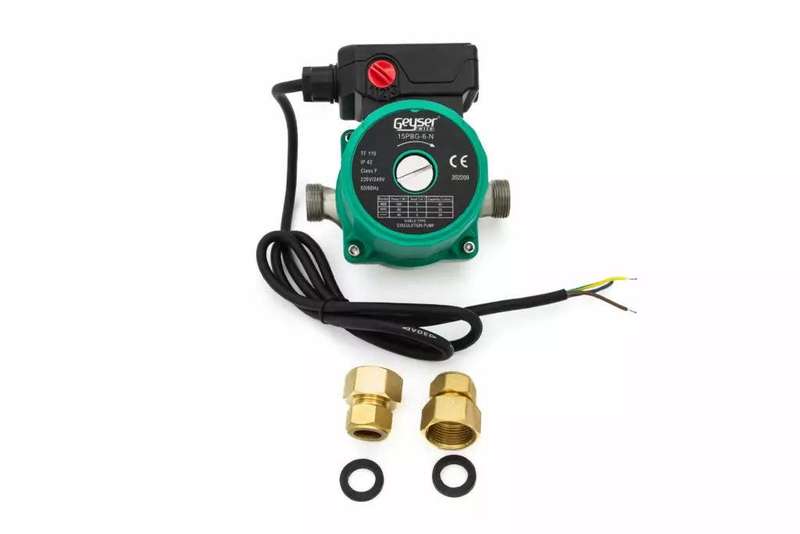

Geyserwise 220V Hot Water Circulation Pump

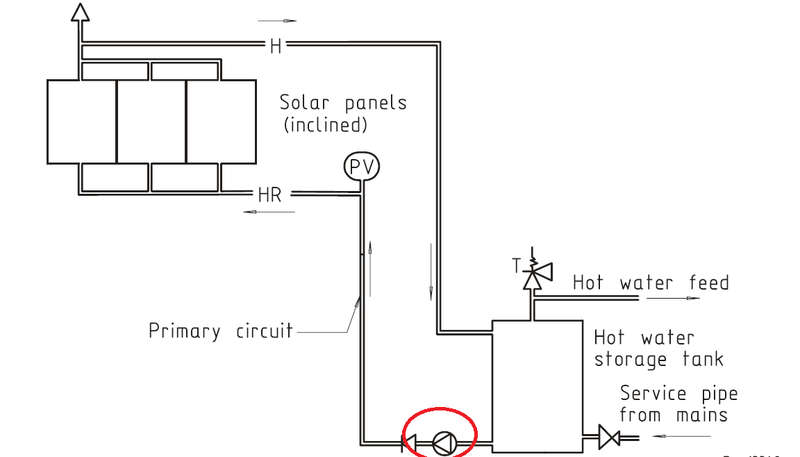

The 220V Solar Pump is a high-efficiency circulation pump specifically designed for use in pumped solar water heating systems. It plays a critical role in circulating liquids, particularly water, through piped systems, ensuring efficient heat distribution and system performance. Its robust design and technical specifications make it ideal for integrating into various solar heating setups, providing reliable and effective operation.Installation Guidance:The pump should be installed at the lowest point of the system to prevent the pump from running dry, which is highlighted by the pump being circled in red in the installation diagram (pump-install). It is crucial to note that the pump cannot run dry without risking damage.Technical Specifications:

• Voltage: 230V +/- 10%, tailored to work efficiently with standard electrical systems and ensuring compatibility with most solar heating systems.
• Mains Frequency: 50Hz, optimized for regions with a standard 50Hz electrical supply, ensuring smooth and efficient pump operation.
• Motor Speed: 2200 revolutions per minute (r/min), providing ample circulation power for a wide range of system sizes and configurations.
• Protection Category: IP42, offering protection against objects larger than 1mm and splashing water, ensuring durability in various environmental conditions.
• Flow Rate: 40 liters per minute (L/min), capable of handling significant flow requirements, making it suitable for systems both large and small.
• Ambient Temperature: Up to 40 degrees Celsius, ensuring reliable operation in warm environments typical of solar heating system installations.
• Operating Temperature Range: -10 to 110 degrees Celsius, offering versatility for use in a wide range of climate conditions and system temperatures.
• Maximum Operating Pressure: 10 Bar, robust enough to withstand high pressure, ensuring long-term reliability and performance in pressurized systems.

The 220V Solar Pump is an essential component for any pumped solar water heating system, designed for durability, efficiency, and reliable performance. Its careful design ensures it meets the needs of your solar heating system, providing consistent and effective circulation of water to maximize the system's heating efficiency.
