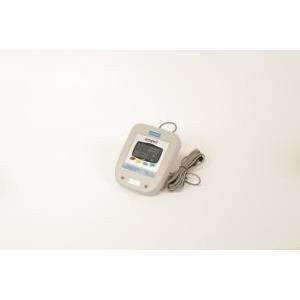

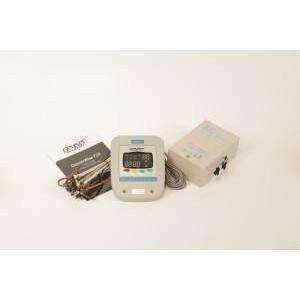

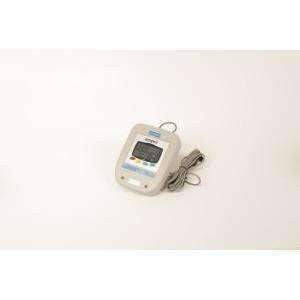

Geyserwise Tse

For use in in Thermosyphon Solar Systems and Normal Geysers

Description

Use as a geyser timer

• Clear display of water temperature, time, day, heating mode and malfunction conditions.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 - 65C) factory default is 55C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5.
• Electronic thermostat with mechanical thermal cut-out at 90C.

Use as timer on a thermosyphon solar system

• Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 - 65C) factory default is 55C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5.
• Electronic thermostat with mechanical thermal cut-out at 90C. Please note the cut-out temperature for solar systems expected to reach temperatures above this temperature.

Technical Parameters

• Operating voltage 230VAC / 50HZ.
• Main relay contact rating 30AMP (Max 4KW).
• Operating voltage range 160V - 250V AC.
• Temperature display range 0 - 99C (-5 when below -5C EA when above 99C).
• High temperature warning above 84C.
• Temperature setting ranges 30 - 65C (heating water electrically).
• Heat failure - when increase at a rate of less than 4C per hour.
• Mechanical thermal cut-out at 90C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
• Dry heat detection - empty cylinder.
• Temperature tolerance 2%.
• Temperature differential setting 1C.
• Switching differential 6C.
• Temperature probe failure detection for tank
• Temperature probe range for geyser is -30 to + 130C.
