Description:

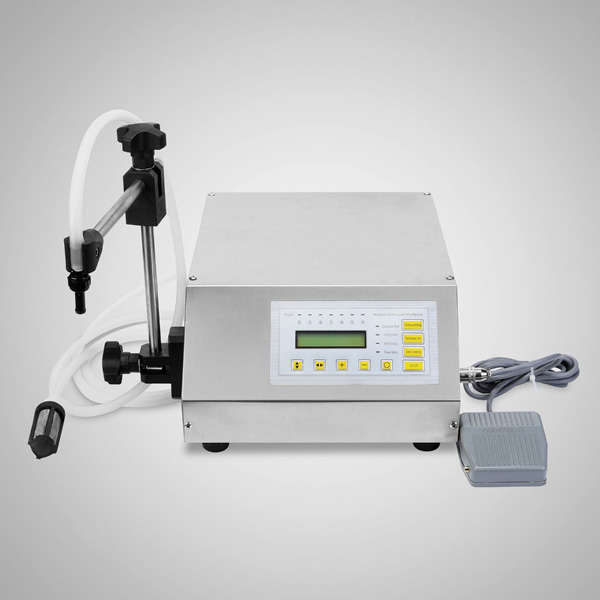

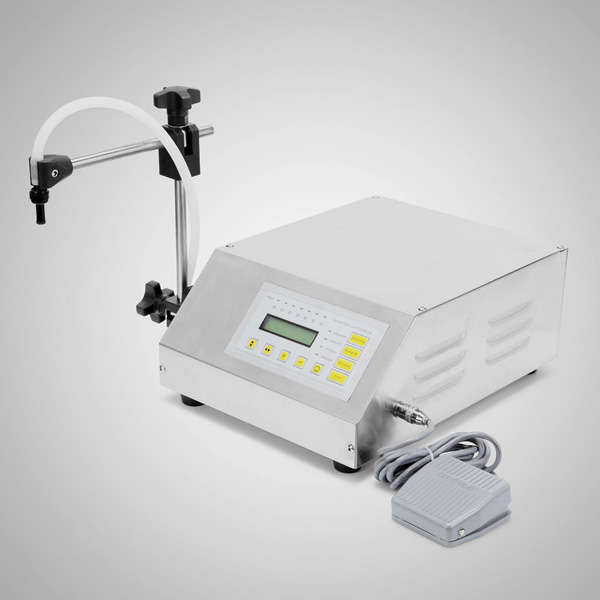

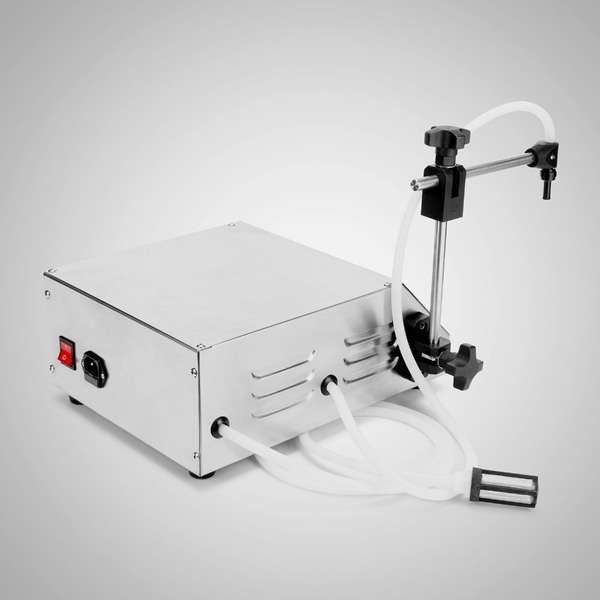

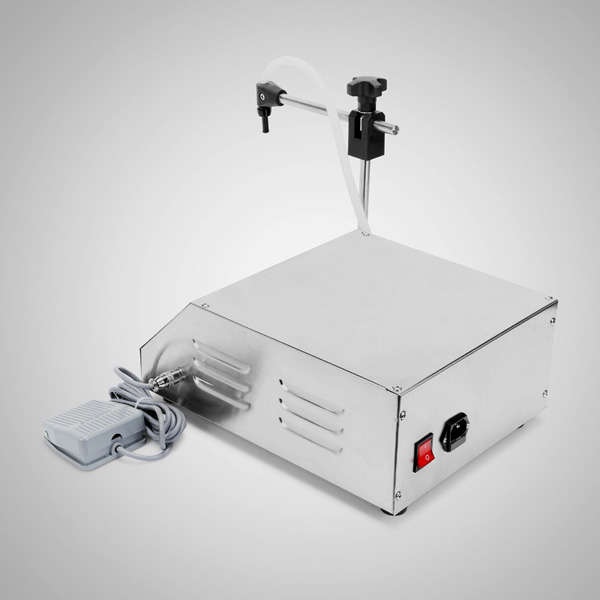

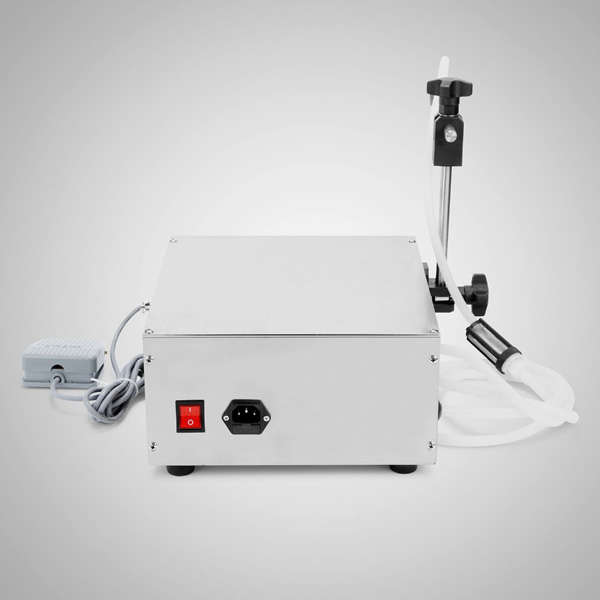

GFK-160 Electrical Liquids Filling Machine Bottled Filler Foods Oils Bottling Equipment Tools
GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so tthat the machine can fill the liquid fluently and at high accuracy.
It is widely used in medical,chemistry,food,bervage,oil and cosmetics,etc.It is suitable for filling low-viscous liquid without pellets.
Features:
1. Imported single-chip control,high efficiency,low power consumption
2. Automatic counting,control the filling quantity effectively.
3. LCD display,touch screen panel is easy to operate.
4. Filling Accuracy is high,precise volume.
5. Wide voltage use range.
6. Product working performance is stable,long use life.
7. Self-suck function,don't need to pour.
8. Pump can stand the acid and alkali.
9. Anti-dripping design
10. Reasonable construction design,stanless steel shelf,meed GMP requirement.
Specification:
| Voltage | AC 180V-260V,110V can be customized |
| Power | 30W |
| Filling Range | 2ml-3500ml |
| Max Flow Rate | 3.2L/min |

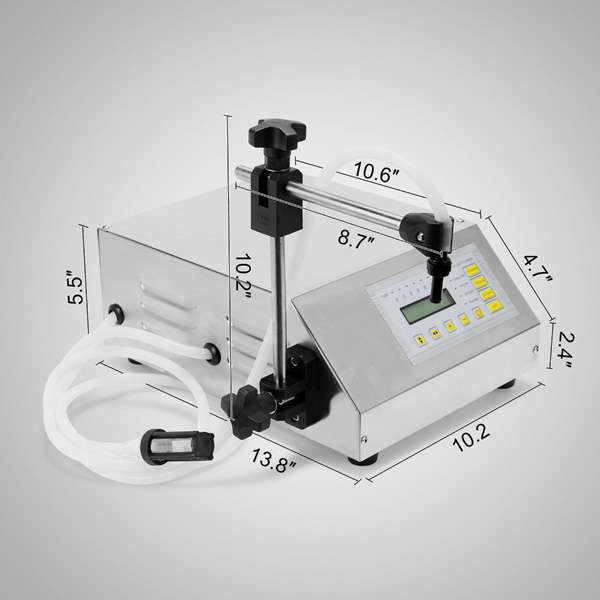

| Package Size | 400X380X200 (mm) |
| Volume Weight | 8.5kg |
| Max Suck Distance | 2m |
| Repeat Error | <0.5% |
| Anti-dripping Function | Available |
| Memory Function without Electricity | Available |
How to use:

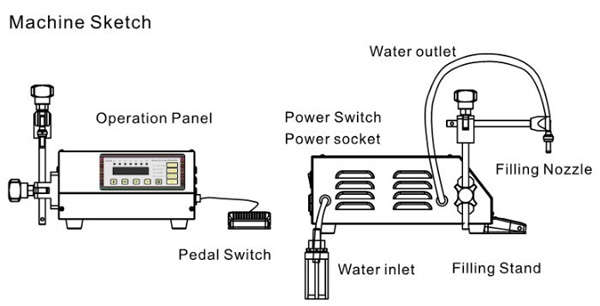

1. Installation

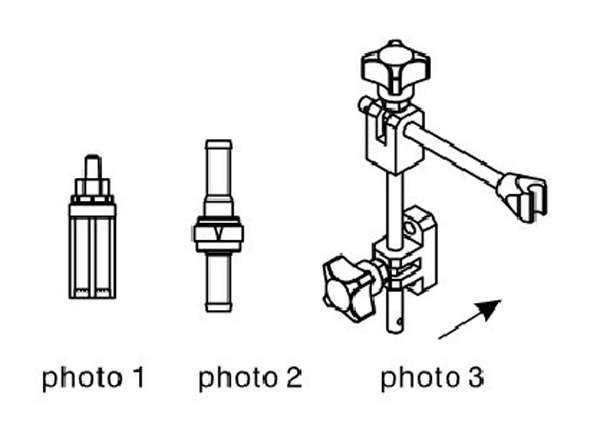

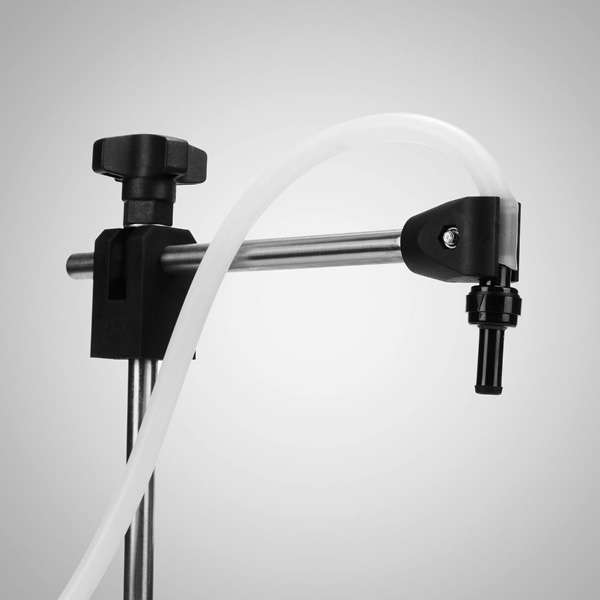

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines as photo3 shows. Put the filling head in the clip and tighten it by socket wrench.
Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.
2. Turn on

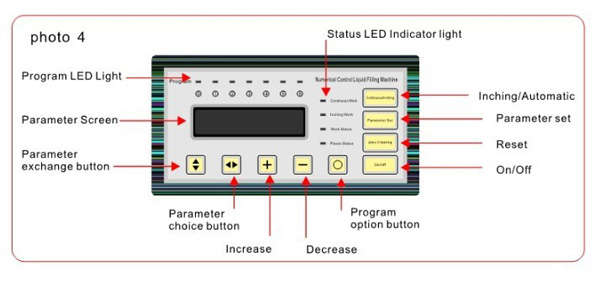

Switch on the machine, the LCD screen will show welcome words and the machine will be under standby status after 3 seconds. As photo4 shows, the screen shows filling quantity at the top left corner, filling speed at bottom left corner, once filling time at the top right corner, interval time at bottom right corner.
3. Adjustment
When the machine is under working status, other buttons can't work. You can adjust the parameter after press the on/off button to let the machine under pause status.
4. Measurement Proofreading
This procedure is to check out if there is water coming out from the nozzle. By adjusting the filling time and speed to meet the requirement. The normal work can be carried out after the measurement proofreading is done.
Kindly note: The manufacturer will not be responsible for any damage due to improper operation. This kind of risk should be taken by the users. Strictly abiding by the manual book is a part of operation requirement.
Package includes:
1 x Power Cord
1 x Pedal Switch
1 x Filling Stand
1 x Filter
1 x Filling Nozzle
1 x Screwdriver
1 x Inner hexagonal wrench
1 x User Manual
