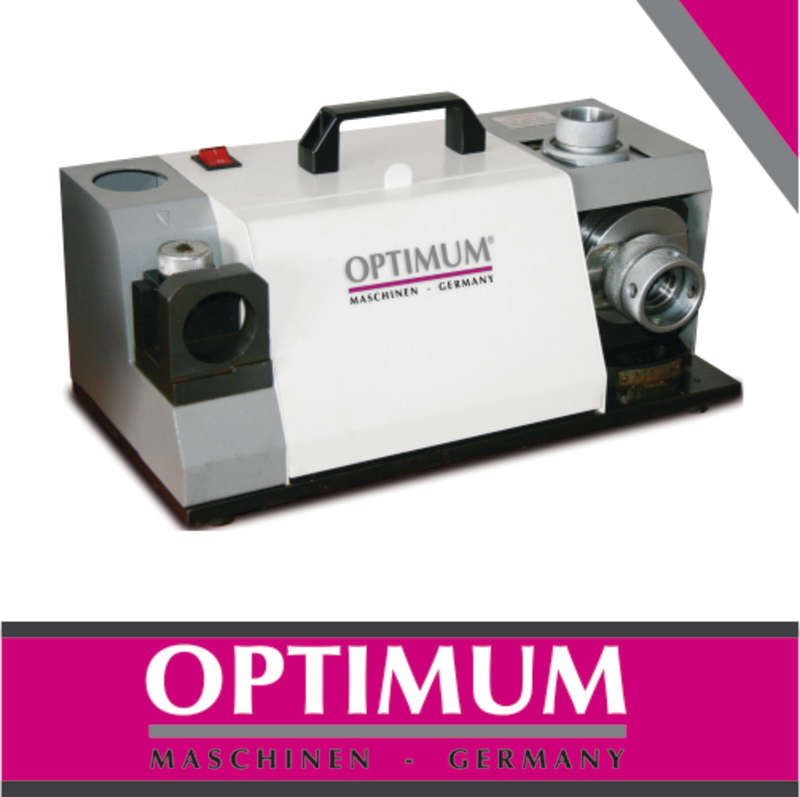

GH15T DRILL GRINDER 3-30mm

OPTI DRILL GRINDER 3MM 30MM

Drill grinder

The handy drill grinder perfect to grind spiral drills made of HSS or hard metal
Easy operation for precise and cost-efficient grinding of two-edged spiral drills
Drill bit grinding without previous knowledge neatly, rapidly and well
Easy to transport
Diamond grinding stone with long durability for perfect grinding
Complete equipment with ER collet chucks in the interior of the machine
The edges of the drill bit are fixed in the collet holder by means of the adjustment aid in a defined position and inserted in the grinding openings in a predetermined sequence in order to grind the edges
with short rotating movements of the collet holder

Technical Specifications
Electric tension 230 V
Phase 1 Ph
Type of current ~
mains frequency 50 Hz
Motor power 450 W
Speed infinitely variable 5000 min-1
Angle of the tip sharpening 90 to 145 degree
Grinding capacity drill
Dimensions L x W x H 450 x 240 x 270 mm
Net weight 33 kg

Delivery Information

6 pcs. Collets ER 20 Sizes Ø 3 8 mm
22 pcs. Collets ER 40 Sizes Ø 8 30 mm
