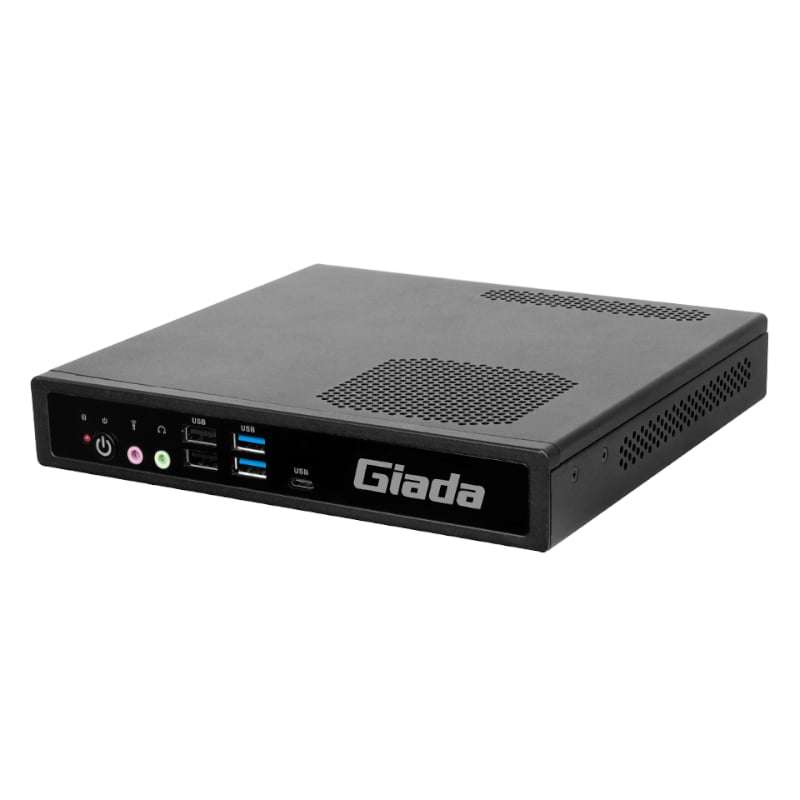

Giada BQ612 with H610 Barebone W/O CPU RAM and SSD

The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel® LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling multitasking and demanding tasks. The barebone has one HDMI port that supports 4K resolution for amazing images.

With 2 x RJ45 Gigabit LAN connections and 1 x E-Key M.2 (2230) slot for WiFi/BT, you'll be able to stay connected in any setting. The GIADA BQ612 is distinguished by its lengthy life cycle, which ensures long-term performance and reliability for your computing demands. This barebone is ready to go, whether for business or play.

Note: CPU is not included.

FEATURES:

• 1 x HDMI supporting 4K
• Intel® LGA1700 Socket 12th/13th Gen. processors
• 2x DDR4-3200 MHz Memory
• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
• Long life cycle

SPECIFICATIONS:

• Processor:
• CPU: Intel® LGA1700 Socket 12th/13th Gen. processors
• Turbo Frequency: by CPU
• Chipset: H610/B660
• Processing Units: by CPU
• TDP: 65 W
• Memory:
• Type: 2 x SO-DIMM DDR4-3200 MHz
• Size: Up to 64 GB
• Storage:
• Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD
• Socket 2: 1 x 2.5" SATAIII (7+15 pin)
• Graphics:
• GPU: Intel® UHD Graphics 730/770
• Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 3.0,
• VGA: 1 x VGA (Max. 2048 x 1536 @60 Hz)
• HDMI: 1 x HDMI (Max. 4096 x 2160 @60 Hz)
• Network:
• Controller: Realtek RTL 8111H Gigabit Ethernet
• Interface: 2 x RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
• Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
• I/O:
• USB: 1 x USB Type-C3.2 Gen1 (H610), 2 x USB3.2 Gen1, 6 x USB2.0 (H610)
• Serial Port: 2 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Antenna: 2 x Connector for Wi-Fi/BT
• Button: 1 x Power on, 1 x CLR-CMOS
• System:
• TPM: Optional: TPM2.0
• Watchdog Timer: Yes
• Auto Power on: Yes
• RTC: Set up independently every day
• Remo on: Yes
• Operation System:
• Windows: Windows 10 (64Bit), Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type: DC-IN
• Input Voltage: 19V/4.74A
• Environment:
• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
• Relative Humidity: 95% @ 45°C (non-condensing)
• Certification: CE, FCC Class B
• Construction: Metal
• Colour: Black
• Dimensions: 20 x 18.5 x 3.5 cm

WHAT'S IN THE BOX:

• Giada BQ612 with H610 barebones embedded PC  Black x1
• WiFi Antenna x2
• AC Power Adapter x1
• Power Cable x1
• User Manual x1
