Giada D612 i3-1215U 2x DDR4 3200Mhz

Giada D612 i3-1215U 2x DDR4 3200Mhz

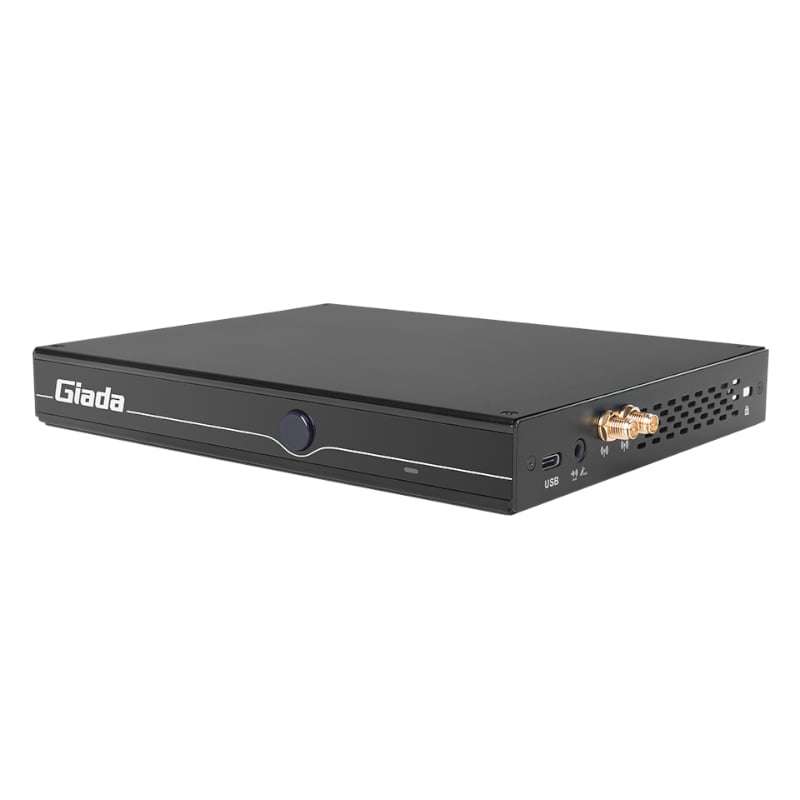

The Giada D612 Intel Core i3 High-end Digital Signage Player is an embedded computer that is excellent for jobs in hospitality, retail, commercial, service, and advertising. Its small and powerful design provides enterprises with the performance and efficiency of the Intel? Core? i3-1215U processor, as well as 2 HDMI connections and 1 DisplayPort connector that supports up to 4K resolution. Its HDMI, USB connections, gigabit Ethernet, Wi-Fi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards make it extremely adaptable. It may also be installed in a variety of ways and simply hidden behind a monitor or big format display thanks to its VESA mount capability.

FEATURES:

• Intel? Core? i3-1215U processor
• 2 x HDMI, Supporting 4K Display
• 1 x DisplayPort
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-key M.2 (2242/2280) for SSD
• Supporting RJ45, Wi-Fi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:
• CPU: Intel? Core? i3-1215U processor
• Frequency: 3.30GHz (Up to 4.40GHz )
• Cores: 6
• BIOS: AMI EFI 64 Mbit
• Memory:
• Type: DDR4-3200MHz
• Socket: 2?x?SO-DIMM
• Max Size: 64GB
• Graphics:
• GPU: Intel? UHD Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• HDMI: 2 x HDMI (Max.4096 x 2304 @60 Hz)
• DisplayPort: 1 x DP (Max.7680 x 4320 @60 Hz)
• Network:
• Controller: 1 x Intel? i219LM Gigabit Ethernet
• Interface: 1 x RJ45
• Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
• Wi-Fi/BT:?1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• I/O:
• USB:?1?x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial Port: 1 x RS232
• Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
• Button: 1 x Power on, 1 x CLR-CMOS
• Storage:
• M.2: 1 x M-key M.2 (2242/2280) for NVMe
• JAHC Tech:
• WatchDog Timer: 0~255 Second Time Out Support
• Auto Power On: Power Activated Automatically Start
• Operation System:
• Windows: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type: DC-IN
• Input Voltage: 12V/19V
• Environment:
• Operating Temperature: 0??~?40??(?32???~?104???)?at?0.7m/s?Air?Flow
• Relative Humidity: 95%@40??(non-condensing)
• Certification: CE,?FCC?Class?B,?CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT?S IN THE BOX:

• Giada D612 Intel Core i3 High-end Digital Signage Player ? Black x1
• Wi-Fi Antenna x2
• User Manual x1
