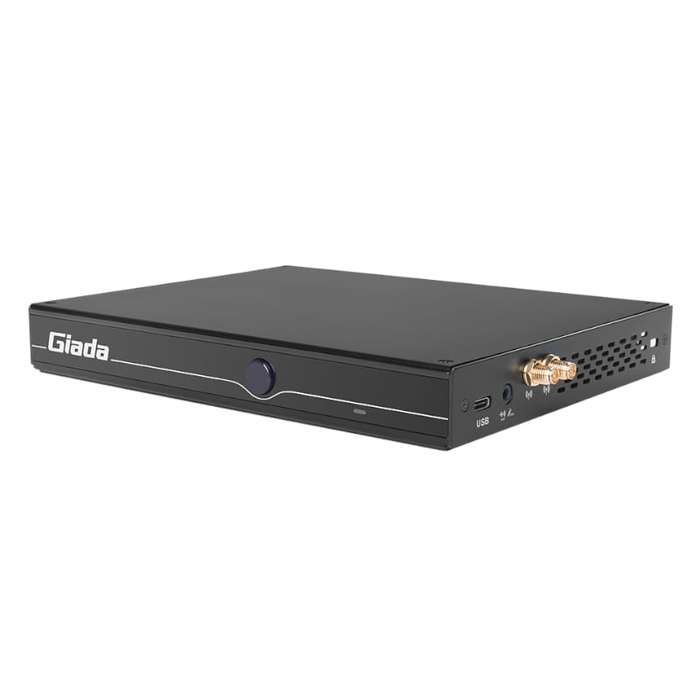

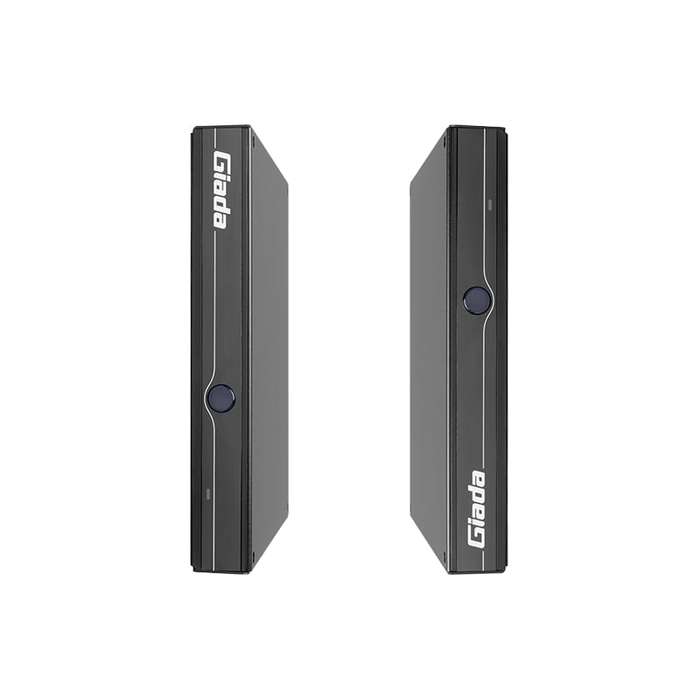

The Giada D612 Intel Core i5 High-end Digital Signage Player is an embeddedcomputer that is excellent for jobs in hospitality, retail, commercial, service,and advertising. Its small and powerful design provides enterprises with theperformance and efficiency of the Intel® Core i5-1235U processor, as well asfour HDMI connections that support up to 4K resolution. Its HDMI, USBconnections, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe3G, 4G, and 5G cards make it extremely adaptable. It may also be installed in avariety of ways and simply hidden behind a monitor or big format display thanksto its VESA mount capability.FEATURES: * Intel® Core i5-1235U processor * 4 x HDMI, Supporting 4K Display * 2 x SO-DIMM DDR4 Memory, Up to 64GB * 1 x M-key M.2 (2242/2280) for SSD * Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet AccessSPECIFICATIONS: * Processor: * CPU: Intel® Core i5-1235U processor * Frequency: 3.30 GHz (Up to 4.40 GHz ) * Cores: 10 * BIOS: AMI EFI 64 Mbit * Memory: * Type: DDR4-3200MHz * Socket: 2 x SO-DIMM * Max Size: 64GB * Graphics: * GPU: Intel® IRIS® Xe Graphics * Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC * HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz) * Network: * Controller: 1 x Intel® i219LM Gigabit Ethernet * Interface: 1 x RJ45 * Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot * Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) * I/O: * USB: 1 x USB3.2 Gen2, 2 x USB2.0 * USB Type-C: 1 x USB Type-C3.2 Gen2 * Serial Port: 1 x RS232 * Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) * Button: 1 x Power on, 1 x CLR-CMOS * Storage: * M.2: 1 x M-key M.2 (2242/2280) for NVMe * JAHC Tech: * WatchDog Timer: 0~255 Second Time Out Support * Auto Power On: Power Activated Automatically Start * Operation System: * Windows: Windows 11 (64bit) * Linux: Linux Ubuntu (64bit) * Power: * Power Type: DC-IN * Input Voltage: 12V/19V * Environment: * Operating Temperature: 0 ~ 40 ( 32 ~ 104 ) at 0.7m/s Air Flow * Relative Humidity: 95%@40 (non-condensing) * Certification: CE, FCC Class B, CCC * Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183) * Construction: Metal * Colour: Black * Dimensions: 18.9 x 14.8 x 2.6 cmWHAT'S IN THE BOX: * Giada D612 Intel Core i5 High-end Digital Signage Player Black x1 * WiFi Antenna x2 * User Manual x1
