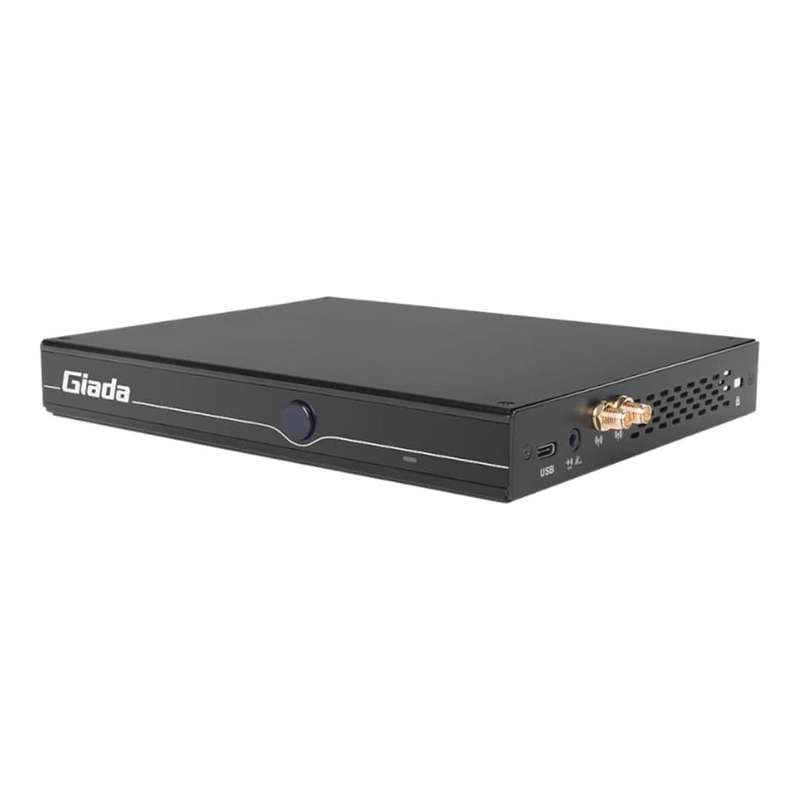

Giada D612 Intel Core i3-1215U High-end Digital Signage Player
The Giada D612 Intel Core i3 High-end Digital Signage Player is an embedded computer that is excellent for jobs in hospitality, retail, commercial, service, and advertising. Its small and powerful design provides enterprises with the performance and efficiency of the Intel® Core™ i3-1215U processor, as well as 2 HDMI connections and 1 DisplayPort connector that supports up to 4K resolution. Its HDMI, USB connections, gigabit Ethernet, Wi-Fi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards make it extremely adaptable. It may also be installed in a variety of ways and simply hidden behind a monitor or big format display thanks to its VESA mount capability.
FEATURES:
- Intel® Core™ i3-1215U processor
- 2 x HDMI, Supporting 4K Display
- 1 x DisplayPort
- 2 x SO-DIMM DDR4 Memory, Up to 64GB
- 1 x M-key M.2 (2242/2280) for SSD
- Supporting RJ45, Wi-Fi 6(CNVi), 3G/4G/5G Ethernet Access
SPECIFICATIONS:
Processor:
CPU: Intel® Core™ i3-1215U processor
Frequency: 3.30GHz (Up to 4.40GHz )
Cores: 6
BIOS: AMI EFI 64 Mbit
Memory:
Type: DDR4-3200MHz
Socket: 2 x SO-DIMM
Max Size: 64GB
Graphics:
GPU: Intel® UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
HDMI: 2 x HDMI (Max.4096 x 2304 -60 Hz)
DisplayPort: 1 x DP (Max.7680 x 4320 -60 Hz)
Network:
Controller: 1 x Intel® i219LM Gigabit Ethernet
Interface: 1 x RJ45
Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

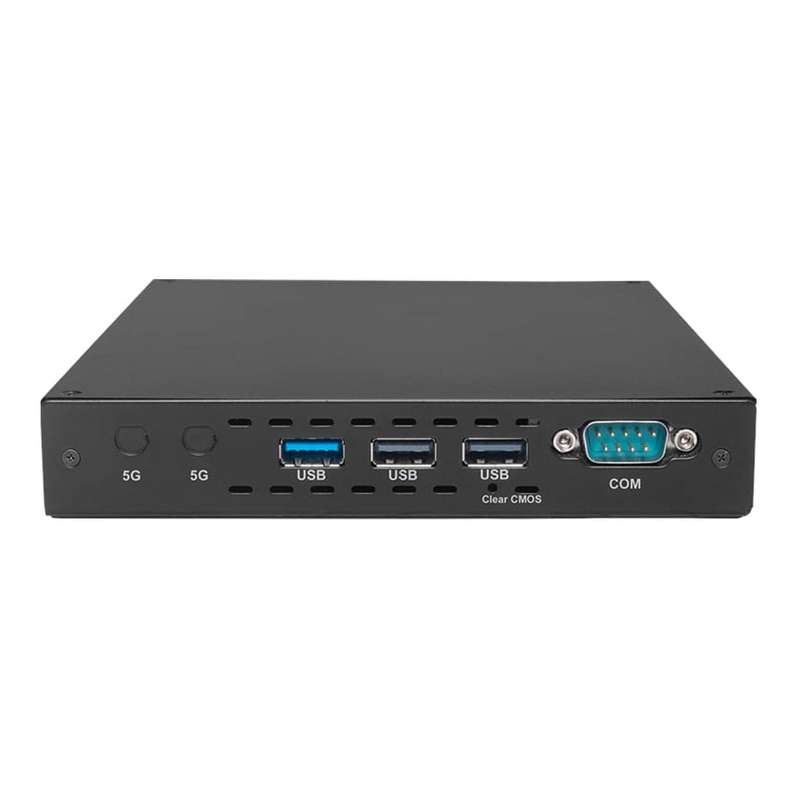

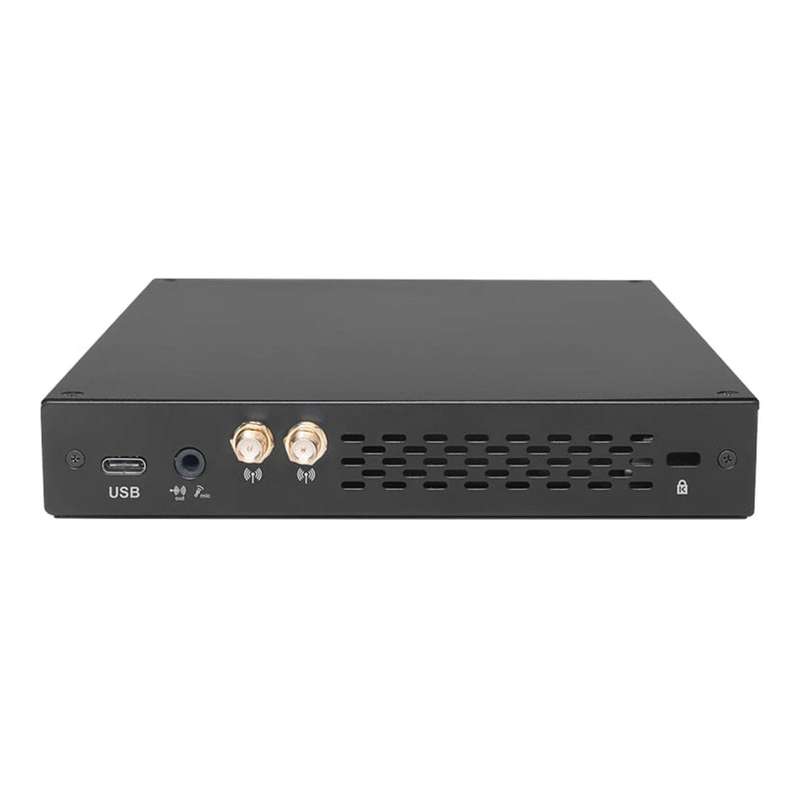

I/O:
USB: 1 x USB3.2 Gen2, 2 x USB2.0
USB Type-C: 1 x USB Type-C3.2 Gen2
Serial Port: 1 x RS232
Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Button: 1 x Power on, 1 x CLR-CMOS
Storage: M.2: 1 x M-key M.2 (2242/2280) for NVMe
JAHC Tech:
WatchDog Timer: 0~255 Second Time Out Support
Auto Power On: Power Activated Automatically Start
Operation System:
Windows: Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: 12V/19V
Environment:
Operating Temperature: 0⃠~ 40⃠( 32 â ~ 104 â ) at 0.7m/s Air Flow
Relative Humidity: 95%-40⃠(non-condensing)
Certification: CE, FCC Class B, CCC
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction: Metal
Colour: Black
Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT'S IN THE BOX:
- Giada D612 Intel Core i3 High-end Digital Signage Player — Black x1
- Wi-Fi Antenna x2
- User Manual x1
