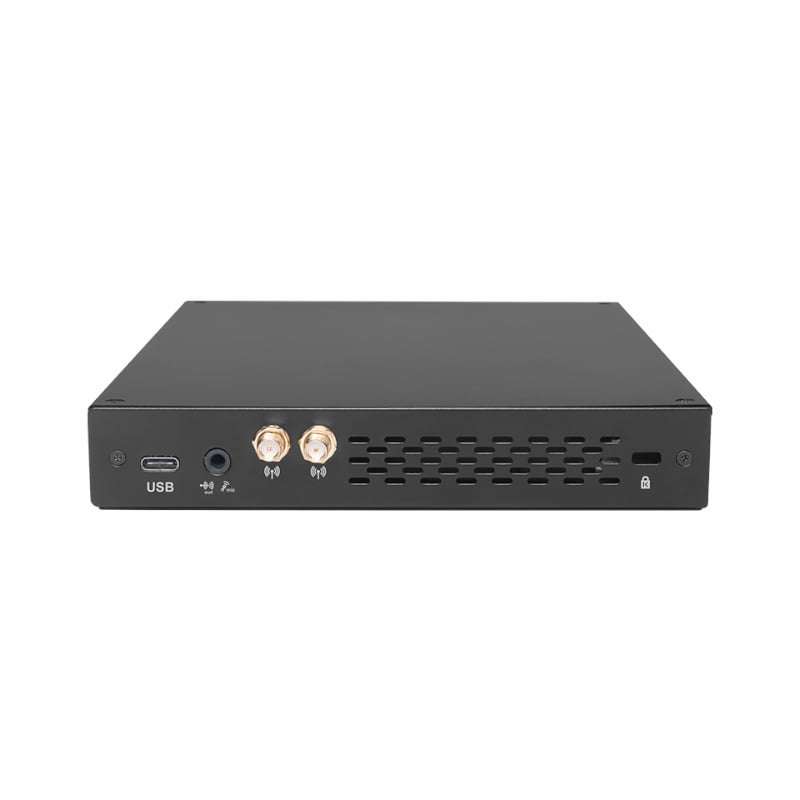

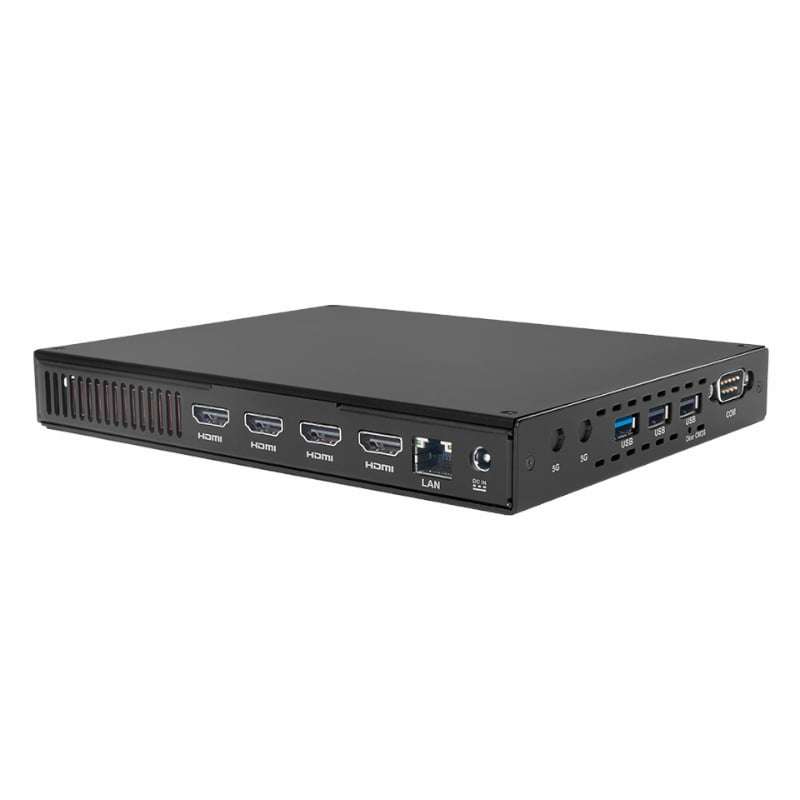

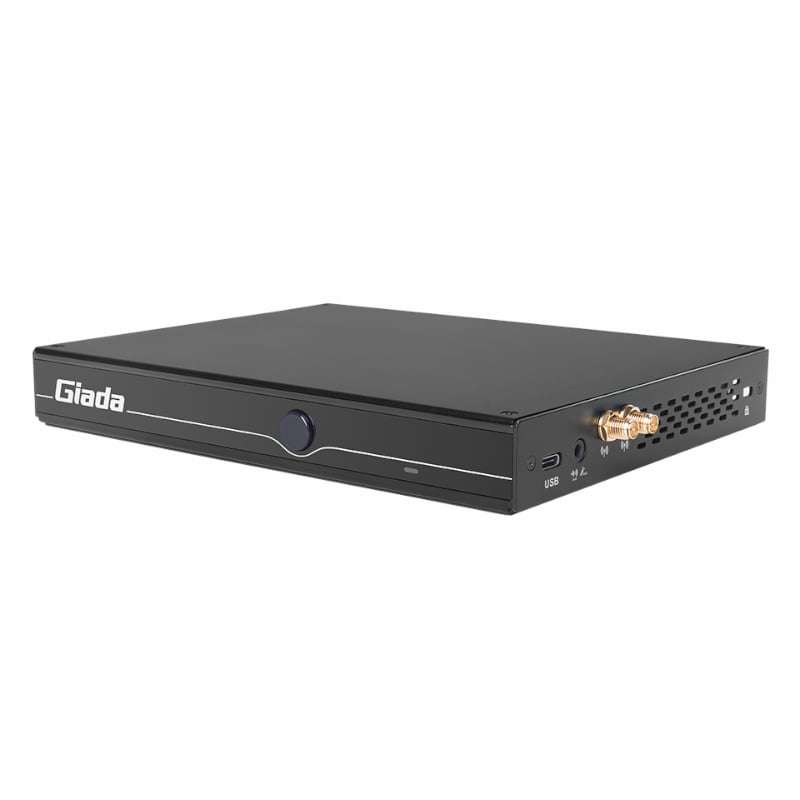

Giada D613 i5-1335U 2x DDR4 3200Mhz

The Giada D613, armed with an Intel Raptor Lake Core i5-1335U processor, introduces a new era of performance and efficiency. The processors feature a combination of high-performance and efficient cores, working in harmony to optimise power consumption without compromising processing power. With support for 4 simultaneous 4K60 displays and hardware-accelerated video encoding and decoding, Giada D613 delivers stunning visuals and an immersive multimedia experience. Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection. 5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency, and massive capacity. The Quectel®-RM50XQ 5G module was certified to be compatible with D613.

FEATURES:

• Intel® Core i5-1335U processor
• 4 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-key M.2 (2242/2280) for SSD
• Supporting RJ45, Wi-Fi 6 (CNVi), and 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:
• CPU: Intel® Core i5-1335U processor
• Frequency: 3.40GHz (Up to 4.60GHz )
• Cores: 6
• BIOS: AMI EFI 64 Mbit
• Memory:
• Type: DDR4-3200MHz
• Socket: 2 x SO-DIMM
• Max Size: 64GB
• Graphics:
• GPU: Intel® IRIS® Xe Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)
• Network:
• Controller: 1 x Intel® i219LM Gigabit Ethernet
• Interface: 1 x RJ45
• Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• I/O:
• USB: 1 x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial Port: 1 x RS232
• Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-Fi/BT, 2 x Connector for 5G (Reserved)
• Storage:
• M.2: 1 x M-key M.2 (2242/2280) for NVMe
• JAHC Tech:
• WatchDog Timer: 0~255 Second Time Out Support
• Auto Power On: Power Activated Automatically Start
• Operation System:
• Windows: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Chrome: Chrome OS
• Power:
• Power Type: DC-IN
• Input Voltage: 19 V/4.74 A
• Environment:
• Operating Temperature: 0 ~ 40 ( 32  ~ 104  ) at 0.7m/s Air Flow
• Relative Humidity: 95%@40 (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT'S IN THE BOX:

• Giada D613 Intel Core i5 High-end Digital Signage Player Black x1
• Wi-Fi Antenna x2
• User Manual x1
