| Brand | Giada |
|---|---|

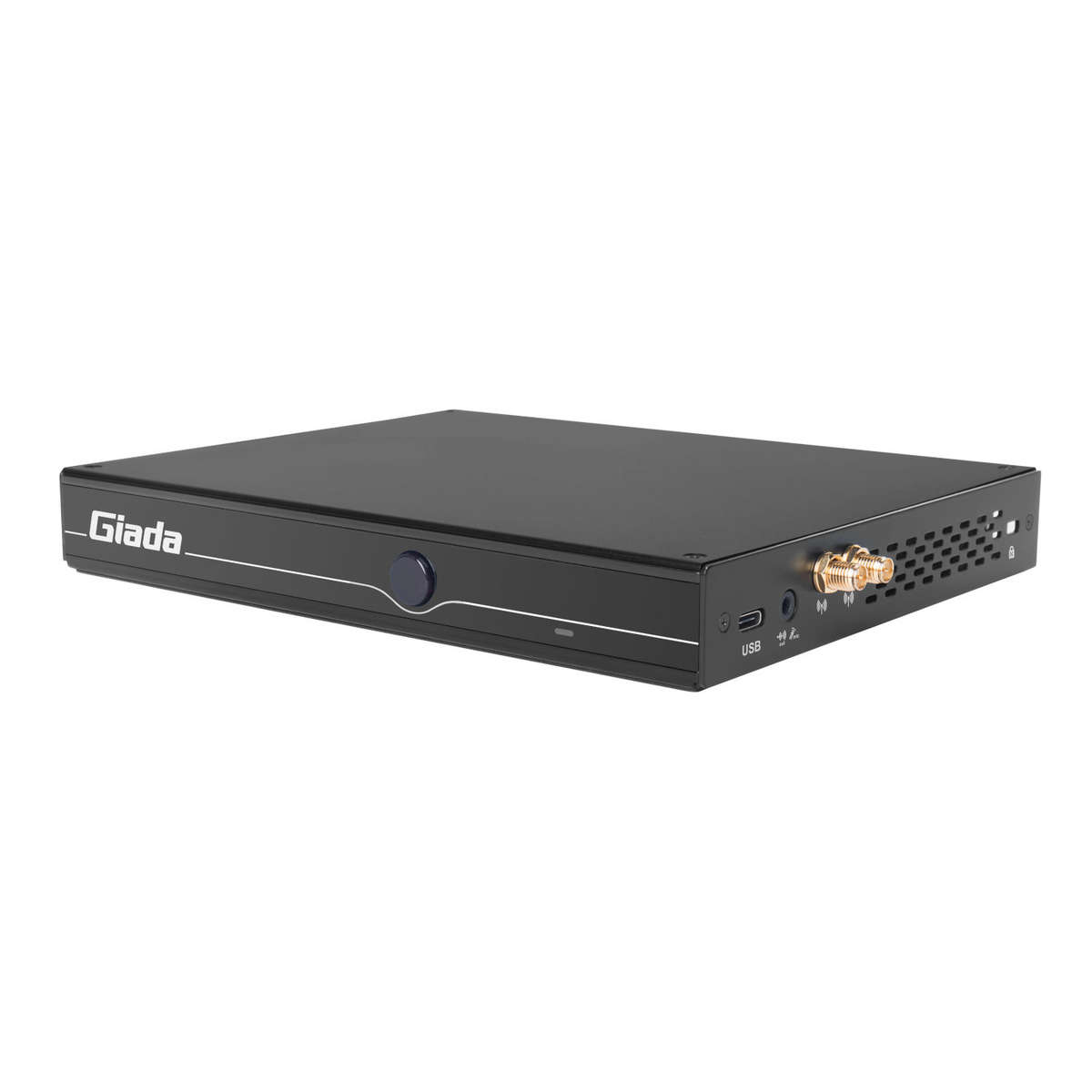

| Model | Giada D613-U1 Intel Core i3-1315U Book-size Barebone Signage Player |
| CPU | Intel® Core i3-1315U processor |
| Chipset | SoC |
| Total Cores | 6 Cores |
| Threads | 8 |
| Base Power | 15 W |
| GPU | Intel® UHD Graphics (Core i3) |
| Graphic Engine | DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC |
| Display Interface | 4 x HDMI (Max.4096 x 2304 @60 Hz) |
| Optional Display Interface | 2 x HDMI (Max.4096 x 2304 @60 Hz) | 1 x DP1.4 (Max.7680 x 4320 @60 Hz) |
| System Memory | Up to 96 GB, 2 x SO-DIMM DDR5-5200 MHz |
| Storage | 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD |
| TPM Optional | TPM2.0 |
| Watchdog Timer | Yes |
| Auto Power On | Yes |
| RTC | Set up independently every day, a week as a cycle |
| Power Requirement | DC-IN, 19 V/4.74 A |
| Construction | Metal, Black |
| Operating System | Windows 11 (64bit) /Linux Ubuntu (64bit) / ChromeOS Flex |
| USB | 1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen2, 2 x USB2.0 |
| Serial Port | 1 x RS232 |
| Audio | 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Antenna | 2 x Connector for Wi-Fi/BT, 2 x Connector for 5G (Reserved) |
| Network Controller | 1 x Intel I226-LM controller |
| Ethernet Interface | 1 x 2.5 GbE RJ45 |
| Wi-Fi/BT | 1 x E-Key M.2(2230) for Wi-Fi/BT | Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) |
| Mobile Network | 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot |
| Operating Temperature | 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
| Humidity | 10 ~ 90% @ 45°C (non-condensing) |
| Certifications | CE, FCC Class B, UKCA |
| Colour | Black |
| Product Dimensions | 18.9 x 14.8 x 2.6 cm |
| Warranty | 24 Months |
| EAN | 6949495707466 |
| What's in the Box | Giada D613-U1 Intel Core i3-1315U Book-size Barebone Signage Player - Black x1 |
| Condition | New |
