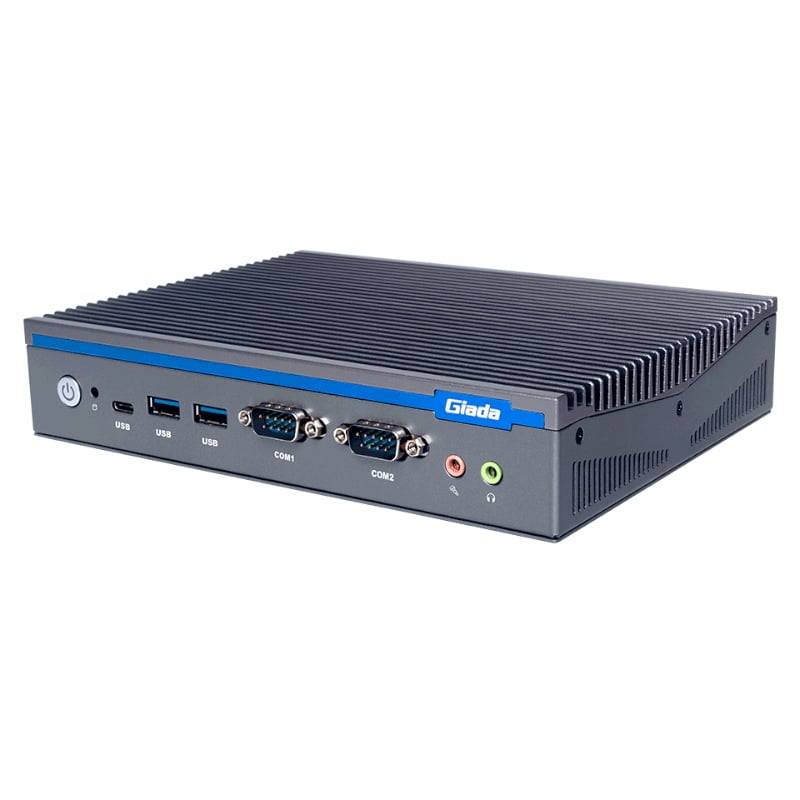

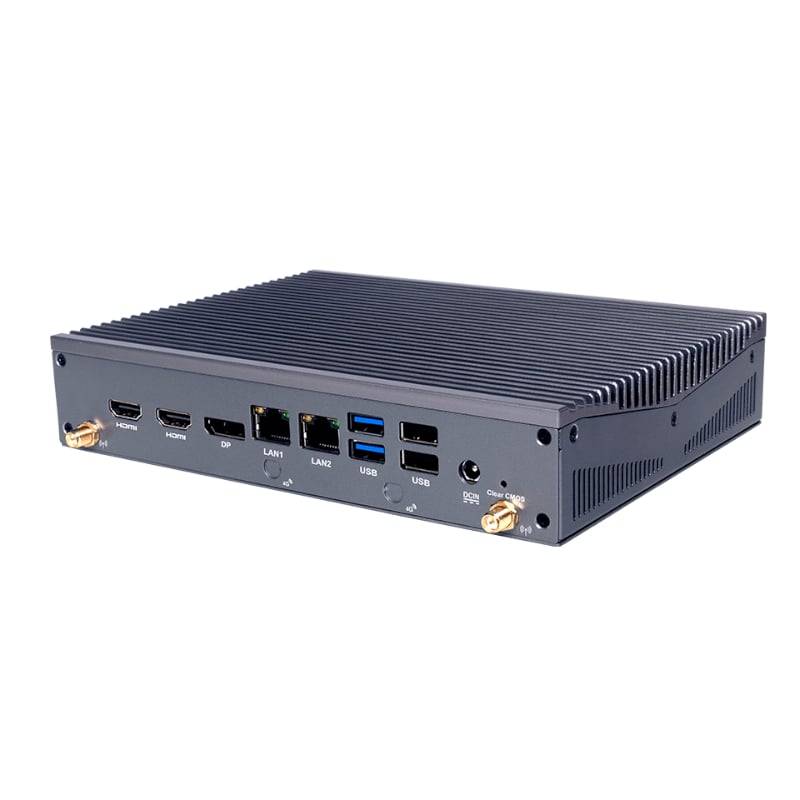

Giada DF612 i3-1215U 2x DDR4 3200Mhz

The Giada DF612 Intel Core i3 is a high-end digital signage player that is ideal for work in hospitality, retail, commercial, service, and advertising. Its small and powerful design gives businesses the performance and efficiency of the Intel®CoreTM i3-1215U CPU, as well as two HDMI connectors that enable up to 4K resolution and one DisplayPort connection that supports up to 8K resolution. It is incredibly customizable because of its HDMI, USB ports, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards. Because of its VESA mount flexibility, it may also be mounted in a variety of ways and simply hidden behind a monitor or large format panel.

FEATURES:

• Intel®Core i3-1215U processor
• 1 x DisplayPort, Supporting 8K, 2 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-Key M.2 (2242/2280) for PCIe SSD
• Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:
• CPU: Intel® Core i3-1215U processor
• Frequency: 3.30 GHz (Up to 4.40 GHz )
• Cores: 6
• BIOS: AMI EFI 64 Mbit
• Memory:
• Type: DDR4-3200MHz
• Socket: 2 x SO-DIMM
• Max Size_ 64GB
• Graphics:
• GPU: Intel® UHD Graphics
• Graphic Engine_ DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4_2:0 HEVC/VP9/SCC
• HDMI: 2 x HDMI (Max.4096 x 2304 @60 Hz)
• DisplayPort: 1 x DP (Max.7680 x 4320 @60 Hz)
• Network:
• Controller: 1 x Intel® i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet
• Interface: 2 x RJ45
• Mobile Network_ 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• I/O:
• USB: 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2 (10 Gbps),
• Serial Port_ 1 x RS232, 1 x RS232/422/485
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-Fi/BT, 2 x Connector for 3G/4G (Reserved)
• Storage:
• M.2: 1 x M-Key M.2 (2242/2280) for PCIe SSD
• JAHC Tech_
• WatchDog Timer_ 0~255 Second Time Out Support
• Auto Power On_ Power Activated Automatically Start
• Operation System_
• Windows: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type_ DC-IN
• Input Voltage_ 12V/19V
• Environment:
• Operating Temperature_ 0 ~ 40 ( 32  ~ 104  ) at 0.7m/s Air Flow
• Relative Humidity_ 95%@40 (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 20 x 15 x 4 cm

WHAT'S IN THE BOX_

• Giada DF612 Intel Core i3 High-end Digital Signage Player Black x1
• WiFi Antenna x2
• User Manual x1

Lenght: 33
Width: 9.5
Height: 23
Colour: Aluminium Grey
Warranty: 24 Months
