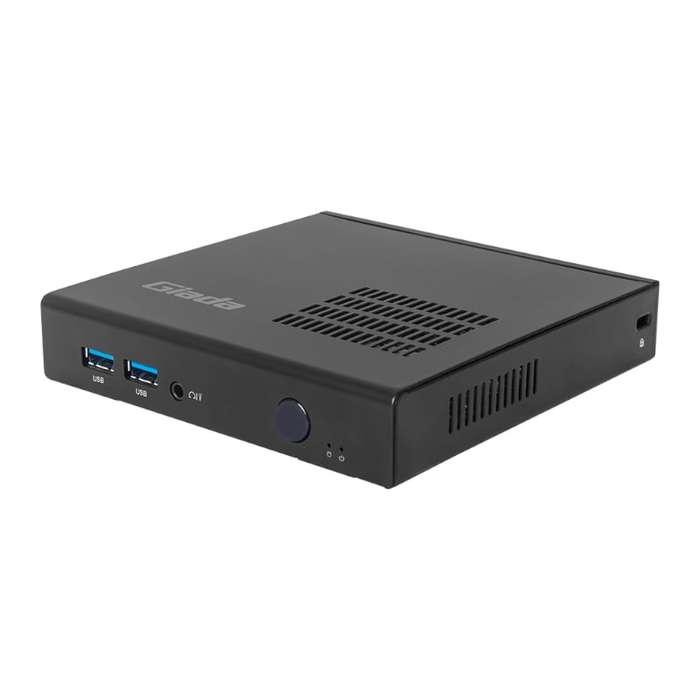

The ultra-slim Giada DK310 Intel Celeron J6412 Signage Player is equipped with Elkhart Lake embedded processors, including the low TDP (10W) Celeron J6412. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation. The player adopts Intel UHD Graphics for 10th Gen Intel Processors and has up to 2X performance improvement in graphics over previous generations. It supports vivid dual 1080p or dual UHD video playback via HDMI 2.0a (4096 x 2160@60Hz) and DisplayPort 1.2 (4096 x 2160@60Hz) ports.
FEATURES:
Elkhart Lake processor
4GB memory
Intel UHD onboard graphics
Up to 4k resolution support
Support for Wi-Fi/Bluetooth module
Small form factor design
SPECIFICATIONS:
CPU: Intel Celeron J6412 processor
CPU Frequency: 2.60GHz
Chipset: SoC
CPU Processing Units: 4 Cores
CPU TDP: 10W
System Memory: 4 GB, Onboard LPDDR4-2666MHz
Storage: 1 x Full-size Mini-PCIe for MSATA
GPU: Intel UHD Graphics
Graphic Engine: DirectX, OpenGL, OpenCL, Intel Quick Sync Video
Multi-media: 4kp60 8-bit H.264 decode, 4kp60 8-bit and 10-bit H.265/HEVC decode, up to 4kp60 VC1, VP8, VP9 decode, 1080p60 MPEG2 decode
Display Interface: 1 x DP (Max.3840 x 2160 @60 Hz), 1 x HDMI (Max.3840 x 2160 @60 Hz)
Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface: 1 x RJ45
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
USB: 4 x USB3.2 Gen2 (10Gbps)
Serial Port: 1 x RS232
Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Button: 1 x Power on, 1 x CLR-CMOS
Antenna: 2 x Connector for Wi-Fi/BT
Watchdog Timer Yes
Auto Power On Yes
RTC Set up independently every day, a week as a cycle
Power Requirement: DC-IN, 19 V/2.37 A
Construction: Metal
Operating System Support: Windows 10 (64bit) / Windows 11 (64bit) / Linux Ubuntu (64bit)
Product Dimensions: 13 x 12.9 x 2.5 cm
What's in the box
1 x Giada DK310 Intel Celeron J6412 Signage Player - Black
