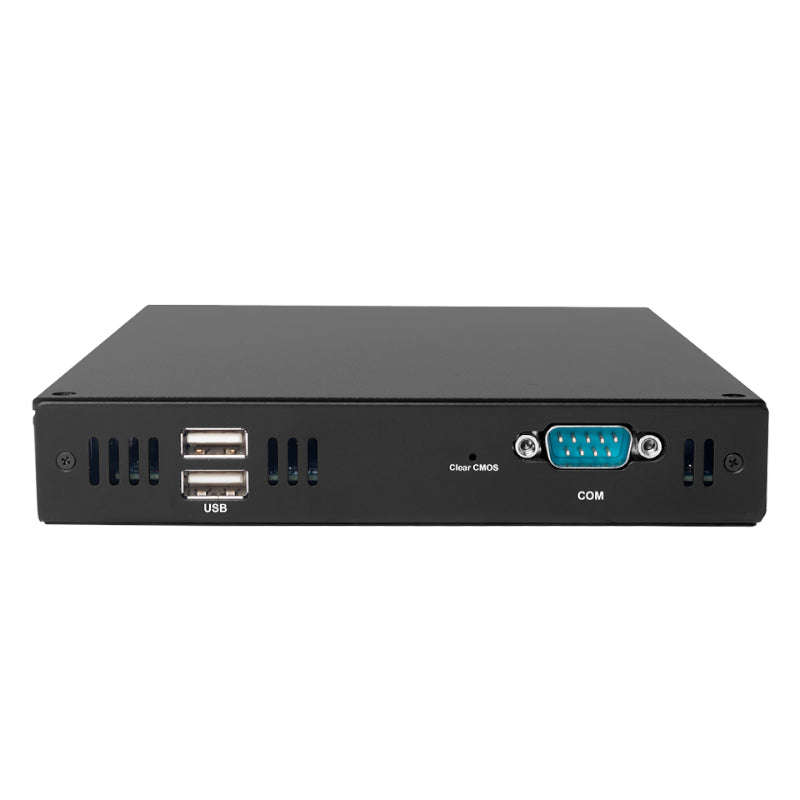

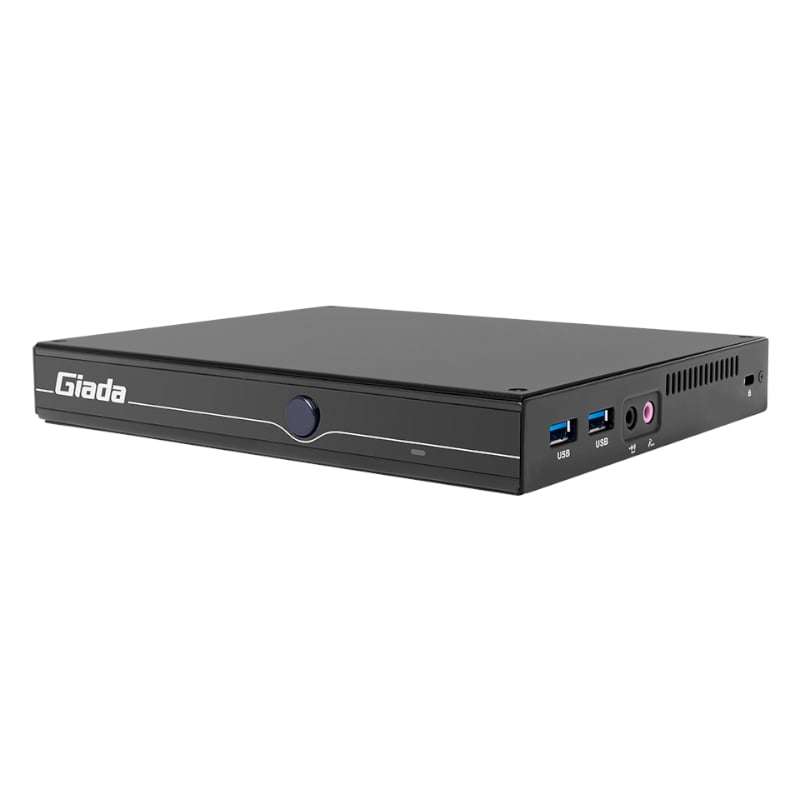

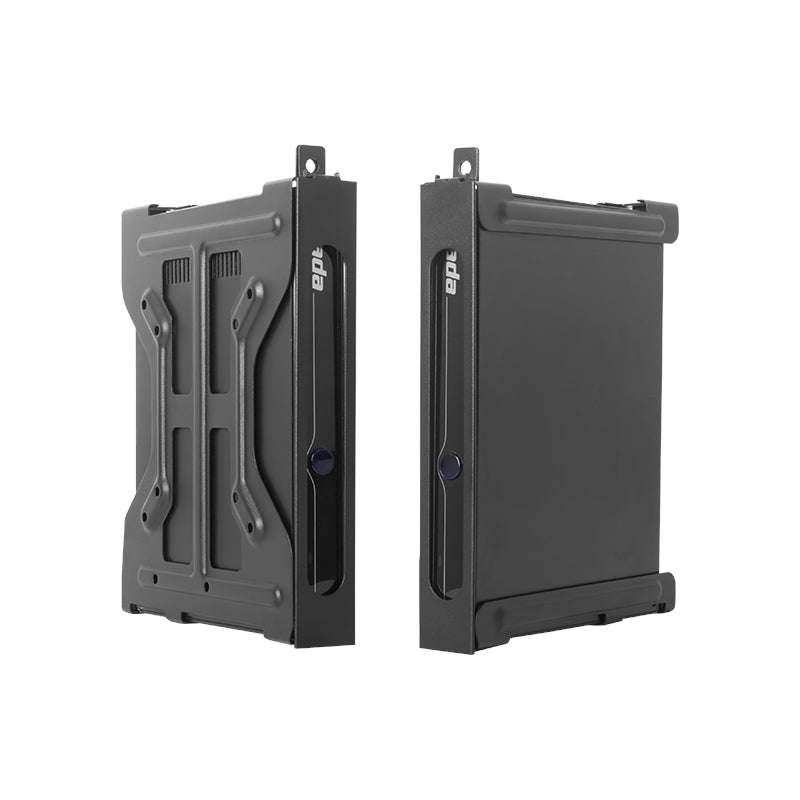

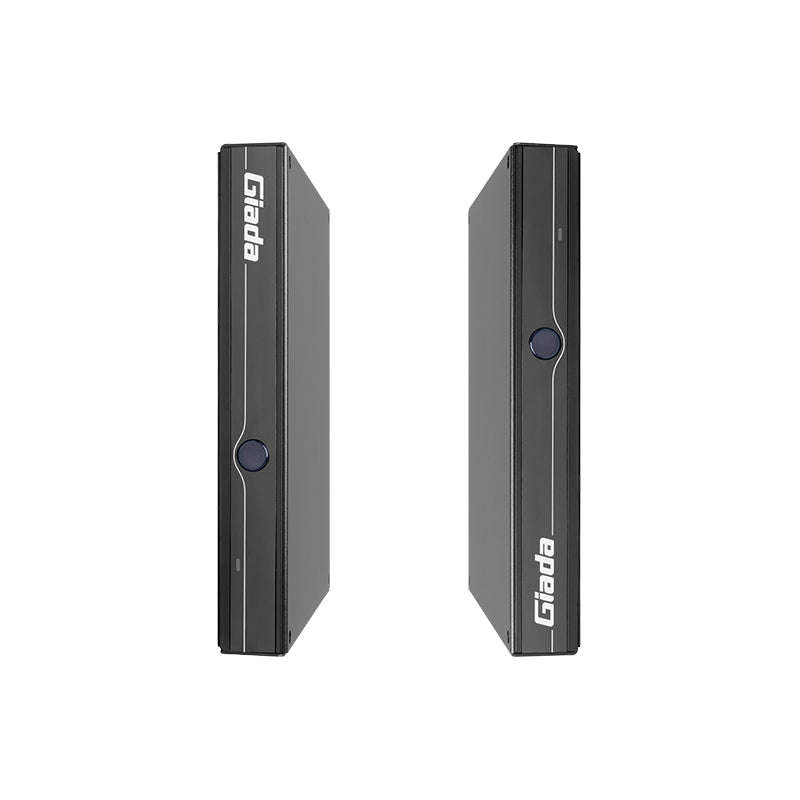

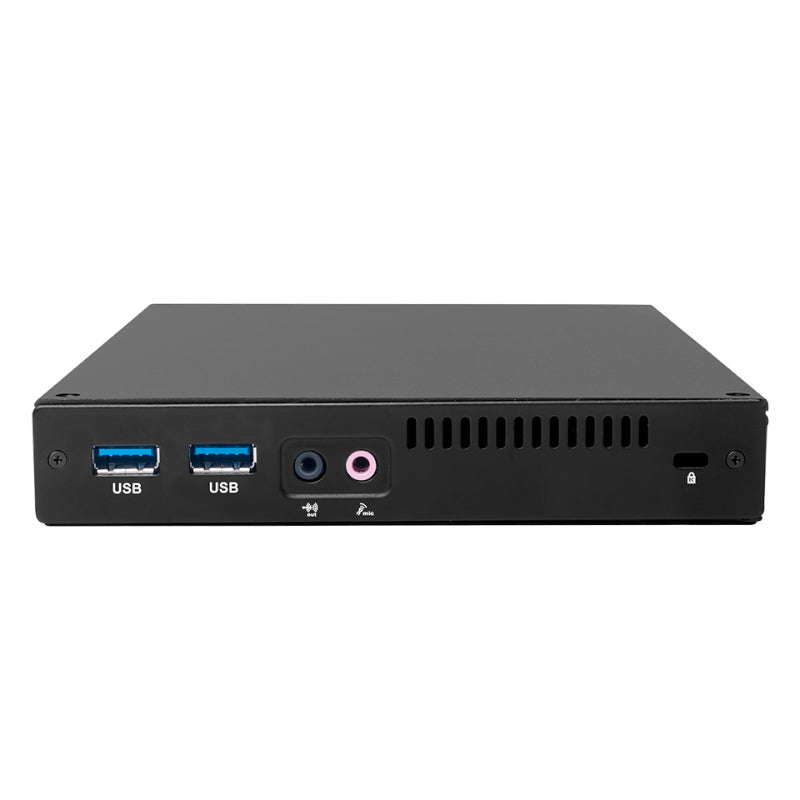

Giada F106D Celeron N5100 4GB eMMC

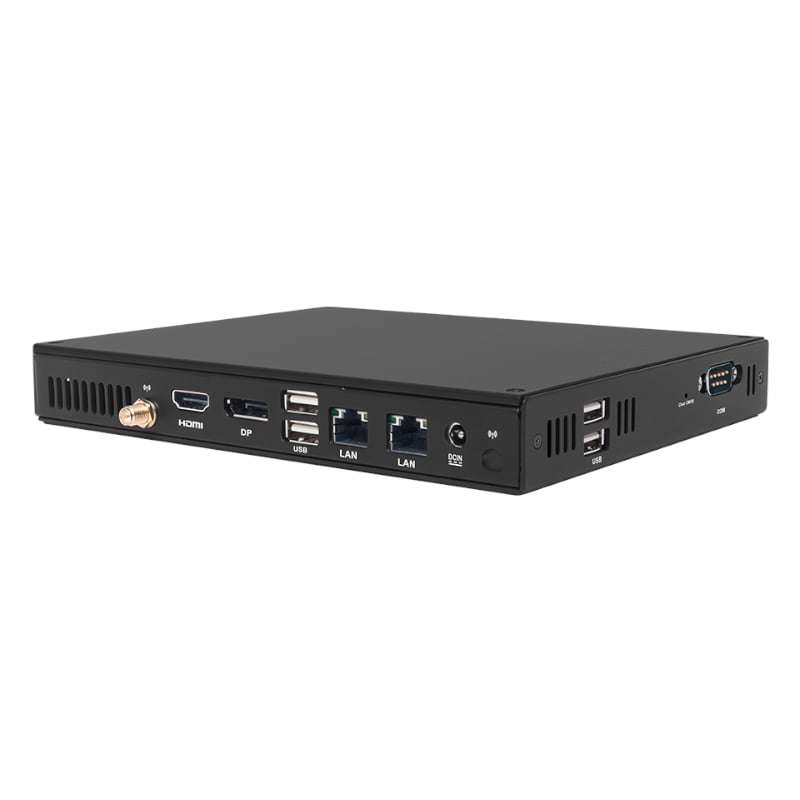

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron®N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics andis capable of delivering vibrant dual 1080p video playback. The device has HDMI2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions upto 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passivethermal cooling system, which features a fanless design. This design not onlyreduces the failure rate but also ensures that the device operates noise-freeand remains dustproof. The Giada F106D Mini PC is designed to be used inmission-critical applications.FEATURES: * Intel® Celeron® N5100 Processor * 1 x DP, 1 x HDMI, Supporting 4K Display * Onboard LPDDR4 4GB * 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT * Long life cycle * Fanless DesignSPECIFICATIONS: * Processor: * CPU: Intel® Celeron® N5100 processor (Fanless) * Turbo Frequency: 2.80 GHz/2.90 GHz * Chipset: SoC * Processing Units: 4 Cores/4 Cores * Memory: * Type: Onboard LPDDR4-2666 MHz * Size: 4GB * Storage Supported: * Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD) * Socket 2: 1 x Full-size Mini-PCIe for MSATA * Graphics: * GPU: Intel® UHD Graphics * Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2 * DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz) * HDMI: 1 x HDMI (Max.4096 x 2160@60Hz) * Network: * Controller: Realtek RTL 8111H Gigabit Ethernet * Interface: 2 x RJ45 * Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6 * Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot * I/O: * USB: 2 x USB3.2 Gen2, 4 x USB2.0 * Serial Port: 1 x RS232 * Audio: 1 x MIC-IN, 1 x AUDIO-OUT * Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved) * Button: 1 x Power on, 1 x CLR-CMOS * System: * TPM: TPM2.0 * Watchdog Timer: Yes * Auto Power on: Yes * RTC: Set up independently every day * Remo on: Yes * Fanless: Yes * Operation System: * Windows: Windows 10 (64Bit), Windows 11 (64bit) * Linux: Linux Ubuntu (64bit) * Power: * Power Type: DC-IN * Input Voltage: 19V/2.37A * Environment: * Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow * Relative Humidity: 95% @ 45°C (non-condensing) * Certification: CE, FCC Class B * Construction: Metal * Fanless: Yes * Colour: Black * Dimensions: 18.9 x 14.8 x 2.6 cmWHAT'S IN THE BOX: * Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB Black x1 * Wi-Fi Antenna x2 * AC Power Adapter x1 * Power Cable x1 * User Manual x1
