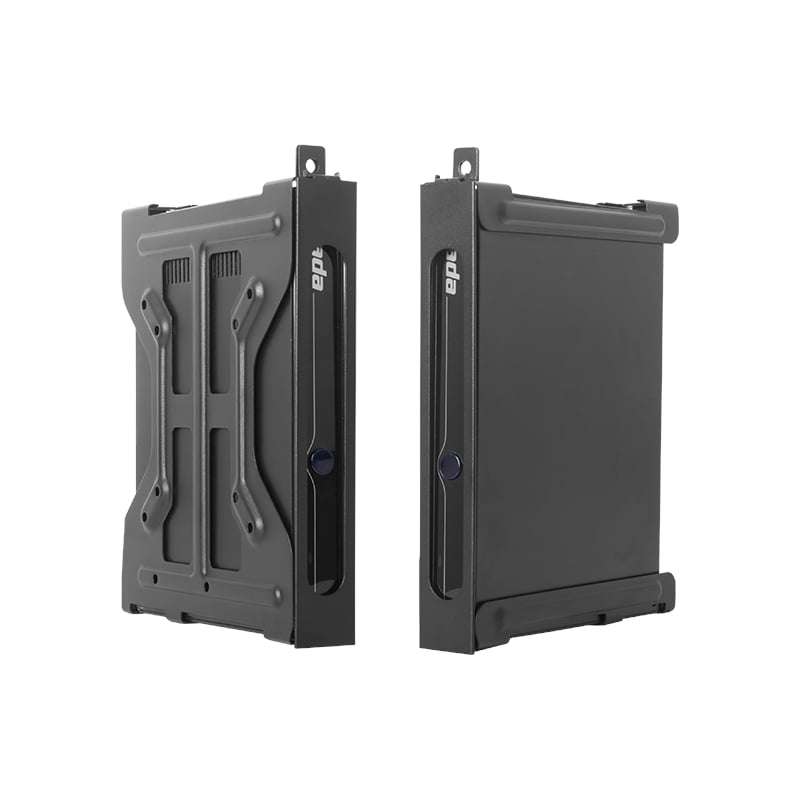

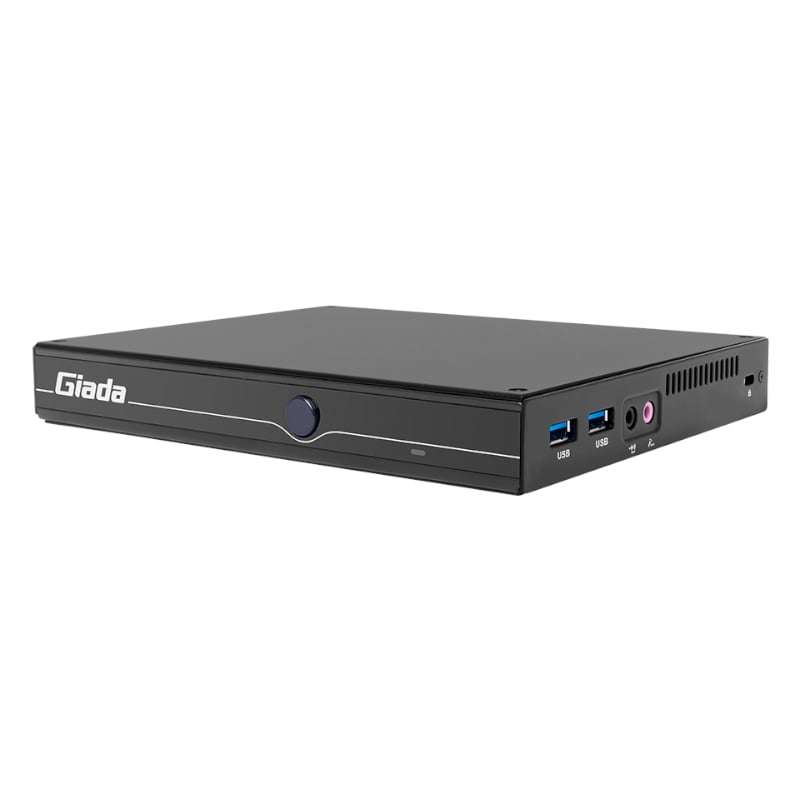

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.
FEATURES:
Intel® Celeron® N5100 Processor
1 x DP, 1 x HDMI, Supporting 4K Display
Onboard LPDDR4 4GB
2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
Long life cycle
Fanless Design
SPECIFICATIONS:
Processor:
CPU: Intel® Celeron® N5100 processor (Fanless)
Turbo Frequency: 2.80 GHz/2.90 GHz
Chipset: SoC
Processing Units: 4 Cores/4 Cores
Memory:
Type: Onboard LPDDR4-2666 MHz
Size: 4GB
Storage:
Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
Socket 2: 1 x Full-size Mini-PCIe for MSATA
Onboard: 32GB, Onboard eMMC5.1
Graphics:
GPU: Intel® UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
Network:
Controller: Realtek RTL 8111H Gigabit Ethernet
Interface: 2 x RJ45
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
I/O:
USB: 2 x USB3.2 Gen2, 4 x USB2.0
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
Button: 1 x Power on, 1 x CLR-CMOS
System:
TPM: TPM2.0
Watchdog Timer: Yes
Auto Power on: Yes
RTC: Set up independently every day
Remo on: Yes
Fanless: Yes
Operation System:
Windows: Windows 10 (64Bit), Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: 19V/2.37A
Environment:
Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Relative Humidity: 95% @ 45°C (non-condensing)
Certification: CE, FCC Class B
Construction: Metal
Fanless: Yes
Colour: Black
Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT'S IN THE BOX:
Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB Black x1
Wi-Fi Antenna x2
AC Power Adapter x1
Power Cable x1
User Manual x1
