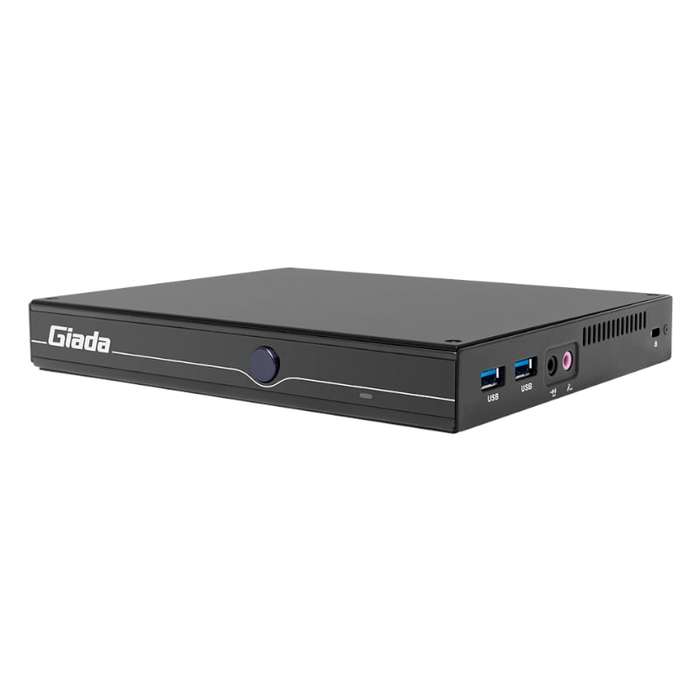

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.
FEATURES:
Intel Celeron N5100 Processor
1 x DP, 1 x HDMI, Supporting 4K Display
Onboard LPDDR4 4GB
2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
Long life cycle
Fanless Design
SPECIFICATIONS:
Processor:
CPU: Intel Celeron N5100 processor (Fanless)
Turbo Frequency: 2.80 GHz/2.90 GHz
Chipset: SoC
Processing Units: 4 Cores/4 Cores
Memory:
Type: Onboard LPDDR4-2666 MHz
Size: 4GB
Storage:
Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
Socket 2: 1 x Full-size Mini-PCIe for MSATA
Onboard: 32GB, Onboard eMMC5.1
Graphics:
GPU: Intel UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
Network:
Controller: Realtek RTL 8111H Gigabit Ethernet
Interface: 2 x RJ45
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
I/O:
USB: 2 x USB3.2 Gen2, 4 x USB2.0
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
Button: 1 x Power on, 1 x CLR-CMOS
System:
TPM: TPM2.0
Watchdog Timer: Yes
Auto Power on: Yes
RTC: Set up independently every day
Remo on: Yes
Fanless: Yes
Operation System:
Windows: Windows 10 (64Bit), Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: 19V/2.37A
Environment:
Operating Temperature: 0 C ~45 C (32 F~113 F) @0.7m/s Air Flow
Relative Humidity: 95% @ 45 C (non-condensing)
Certification: CE, FCC Class B
Construction: Metal
Fanless: Yes
Colour: Black
Dimensions: 18.9 x 14.8 x 2.6 cm
What's in the box
1 x Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB - Black
2 x Wi-Fi Antenna
1 x AC Power Adapter
1 x Power Cable
1 x User Manual
