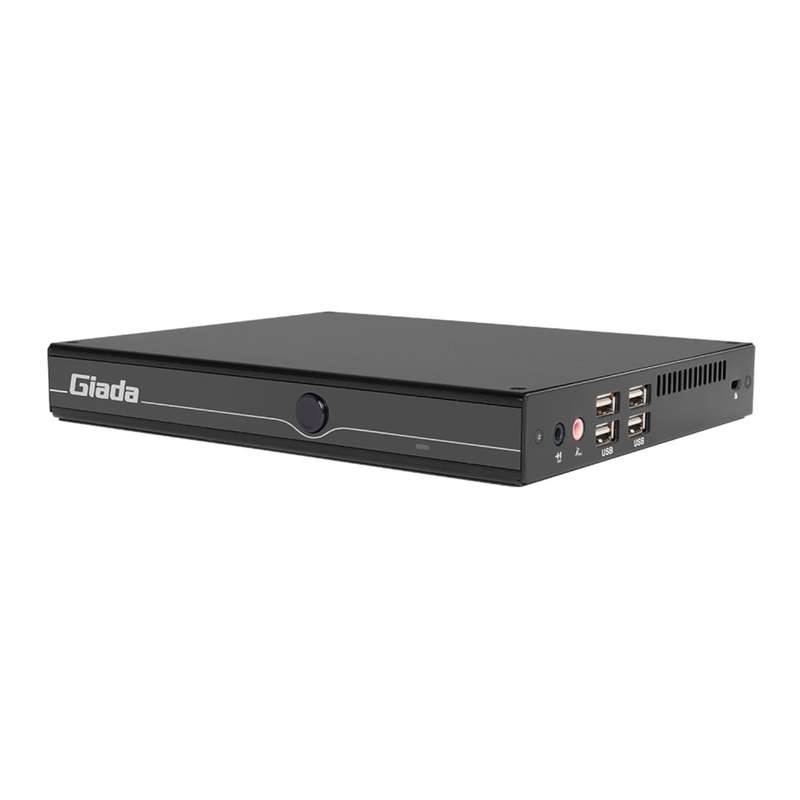

Giada F108D Alder Lake-N97 Book Size Signage Player

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the design reduces the failure rate and makes the device run noise-free and dustproof.

FEATURES:

• Intel® Processor N97
• DDR4 3200MHz memory support
• Intel UHD onboard graphics
• Up to 4k resolution support
• 1x DP and 2x HDMI output
• Support for Wi-Fi/Bluetooth module
• Small form factor design

SPECIFICATION:

• CPU: Intel® Processor N97
• Turbo Frequency_ 3.60GHz
• Chipset: SoC
• Processing Units_ 4 Cores
• TDP: 12W
• System Memory_ Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
• Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
• Watchdog Timer_ Yes
• Auto Power On_ Yes
• RTC: Set up independently every day, a week as a cycle
• Remo on_ No
• Power Requirement_ DC-IN, 19 V/2.37 A
• Construction: Metal
• Operating System_ Windows 11 (64bit) /Linux Ubuntu (64bit)
• Operating Temperature_ 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
• Certifications: CE, FCC Class B, UKCA
• Humidity: 95% @ 45°C (non-condensing
• Network Controller_ 2 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface_ 2 x RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
• Mobile Network_ 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
• GPU: Intel® UHD Graphics
• Graphic Engine_ DirectX 12.1, OpenGL 4.6, OpenCL 3.0
• Display Interface_ 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)
• USB: 2 x USB3.2 Gen2, 4 x USB2.0
• Serial Port_ 2 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-Fi/BT
• Product Dimensions_ 18.9 x 14.8 x 2.6 cm

WHAT'S IN THE BOX_

• Giada F108D Alder Lake-N97 Book Size Signage Player Black x1

Lenght: 28
Width: 7
Height: 24
Colour: Black
Warranty: 24 Months
