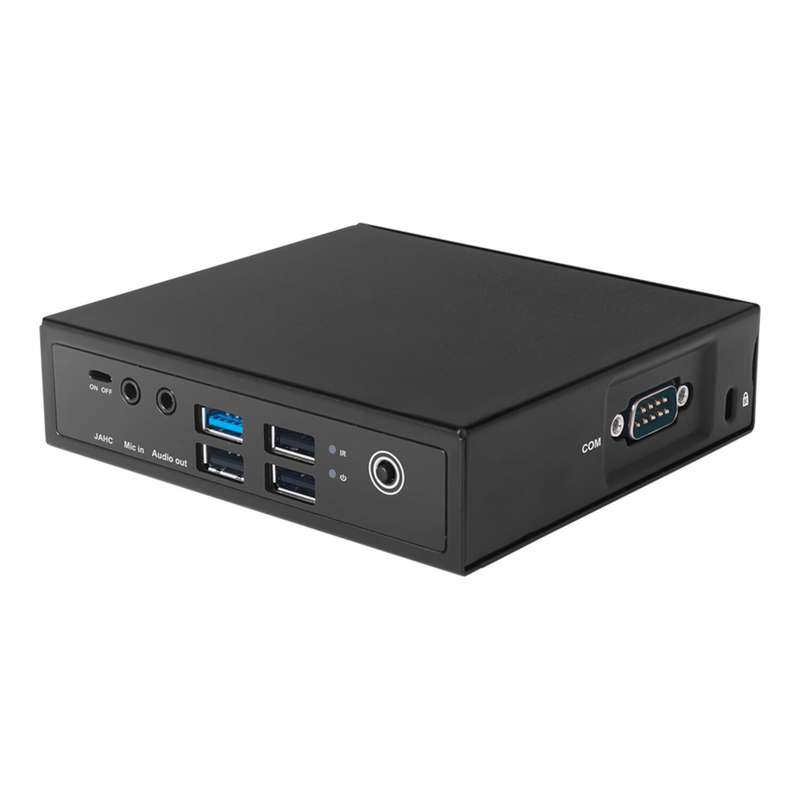

Giada F210U Cherry Trail Fanless Signage Player

The Giada F210U is an ultra-compact, fanless digital signage media player engineered for continuous, mission-critical operations. Powered by the Intel® Atom x5-Z8350 processor, it delivers reliable performance with minimal power consumption (TDP 4W). Its passive thermal cooling system ensures silent, dust-resistant operation, enhancing system stability and longevity.

Equipped with Intel® HD Graphics 400, the F210U supports dual 1080p video outputs via HDMI 1.4a and VGA interfaces, facilitating vibrant and seamless multimedia presentations. The device offers versatile connectivity options, including onboard Wi-Fi, Bluetooth 4.1, Gigabit Ethernet, and a full-size Mini-PCIe slot for 3G/4G modules, complemented by a SIM slot for mobile network integration.

The F210U's compact metal chassis (11.66 x 10.74  x 3 cm) allows for discreet installation in space-constrained environments. It supports multiple operating systems, including Windows 8/10 (64-bit) and Ubuntu 16.04 (64-bit), providing flexibility for various application requirements.

FEATURES:

• Ultra-Compact Design Space-saving form factor ideal for discreet deployments in digital signage, retail, and industrial environments.
  Fanless Thermal Design Passive cooling system ensures silent operation, enhanced reliability, and reduced maintenance in dusty or sensitive environments.
  Intel® Atom x5-Z8350 Processor Energy-efficient quad-core processor delivering stable performance with ultra-low power consumption (TDP 4W).
  Dual Display Support HDMI 1.4a and VGA outputs support dual 1080p video playback for dynamic multimedia presentations.
  Robust Connectivity Built-in Wi-Fi, Bluetooth 4.1, Gigabit Ethernet, and Mini-PCIe expansion slot with SIM card support for 3G/4G network integration.
  Multiple OS Compatibility Supports Windows 8/10 (64-bit) and Ubuntu 16.04 (64-bit) for deployment flexibility.
  Metal Chassis Construction Durable, industrial-grade casing designed to withstand demanding operational environments.
  Auto Power On Automatically restarts after power loss, ensuring continuous uptime in unattended installations.

SPECIFICATIONS:

• CPU
• CPU: Intel® Atom® x5-Z8350 processor
• Frequency: 1.92 GHz
• Chipset: SoC
• Processing Units: 4 Cores
• Scenario Design Power: 2 W
• System
• System Memory :2 GB/4 GB, Onboard DDR3L-1333 MHz
  Storage:
  • 32 GB/64 GB, Onboard eMMC
  • 1 x TF Card reader
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, for a week as a cycle
• Remo on: NA
• Power Requirement: DC-IN, 12 V/2.08 A
• Dimensions: 116.6 mm x 107.4 mm x 30 mm (4.59" x 4.23" x 1.18")
• Construction: Metal, Black
• Operating System: Windows 8 (64-bit) /Windows 10 (64-bit), Ubuntu 16.04 (64bit)
• Operating Temperature: 0°C ~40°C @0.7m/s Air Flow
• Certifications CE, FCC Class B
• Humidity 95% @ 40°C (non-condensing)
• Network
• Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 1 x RJ45
• Wi-Fi/BT: Onboard Wi-Fi/BT module
• Mobile Network:
  • 1 x Fulll-size Mini-PCIe for 3G/4G
  • 1 x SIM Slot
• Display
• GPU: Intel® HD Graphics 400
  Graphic Engine: DirectX 11, OpenGL 4.0, OpenCL 1.2
  Display Interface:
  • 1 x VGA (Max. 1920 x 1080 @60 Hz)
  • 1 x HDMI (Max. 1920 x 1080 @24 Hz)
• I/O Interface
• USB: 1 x USB3.2 Gen.1, 3 x USB2.0
• Serial Port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna
• 1 x Connector for Wi-Fi/BT
• 1 x Connector for 3G/4G (Reserved)

WHAT'S IN THE BOX:

• Giada F210U Cherry Trail Fanless Signage Player x1
