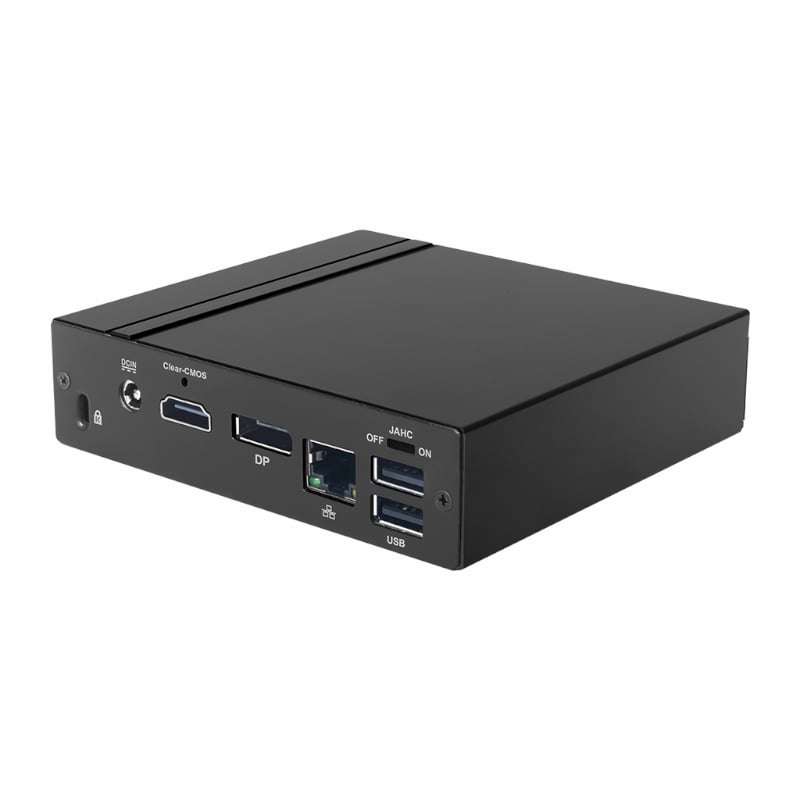

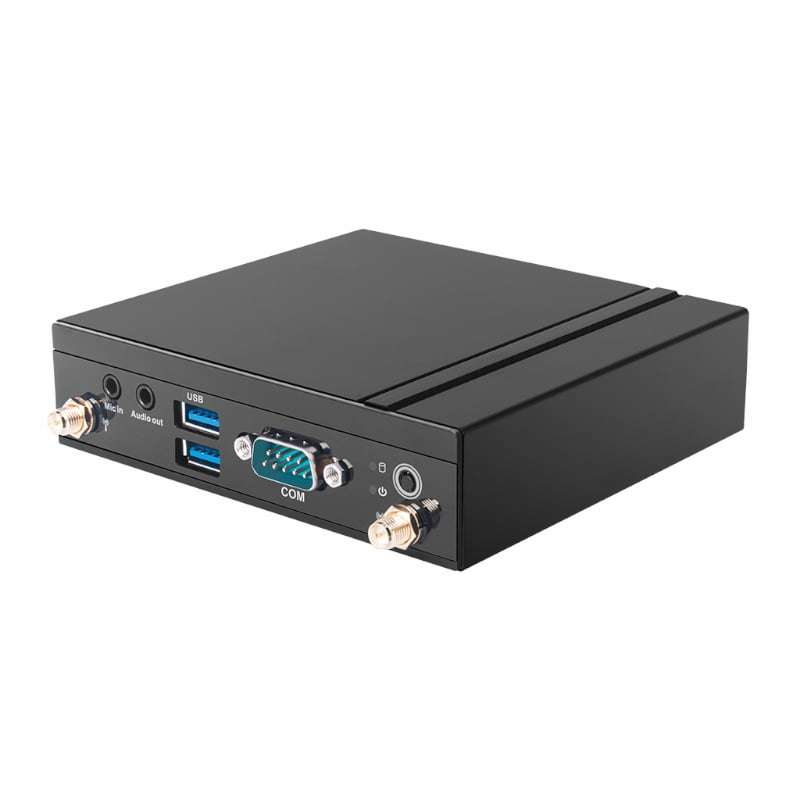

GIADA VM23 CEL N3350 4GB 64GB FANLESS

The Giada VM23 is equipped with the Apollo Lake Celeron® processor N3350 (TDP 6W). It's Giada's top selling model, with best price-performance ratio. It supports onboard LPDDR4 memory and eMMC5.1 storage. The player adopts Intel® HD Graphics 500. It supports vivid, dual 1080p video decoding. The HDMI 1.4a supports resolutions up to 4096 x 2160@24Hz, while DisplayPort 1.2 port supports 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

FEATURES:

• Intel® Celeron® N3350 processor
• 1 x DP, 1 x HDMI, Supporting 4K Display
• Onboard DDR4 4GB
• 1 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
• Long life cycle
• Fanless Design

SPECIFICATIONS:

• Processor:
  • CPU: Intel® Celeron® N3350 processor
  • Frequency: 2.40 GHz
  • Cores: 2
  • Chipset: SoC
• Memory:
  • Type: LPDDR4-2133 MHz
  • Socket: Onboard
  • Size: 4GB
• Storage:
  • Socket: 1 x Full-size Mini-PCIe for MSATA
  • Onboard: 64 GBGB, Onboard eMMC
•  Graphics:
  • GPU: Intel® UHD Graphics
  • Graphic Engine_ DirectX 12, OpenGL 4.2, OpenCL 2.0
  • DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
  • HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
• Network:
  • Controller: Realtek RTL 8111H Gigabit Ethernet
  • Interface: 1 x RJ45
  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
  • Mobile Network_ NA
• I/O:
  • USB: 2 x USB3.2 Gen1, 2 x USB2.0
  • Serial Port_ 1 x RS232
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Antenna: 1 x Connector for Wi-Fi/BT
  • Button: 1 x Power on, 1 x CLR-CMOS
• System:
  • Watchdog Timer_ Yes
  • Auto Power on_ Yes
  • RTC: Set up independently every day
  • Remo on_ Yes
  • Fanless: Yes
• Operation System_
  • Windows: Windows 10 (64Bit), Windows 11 (64bit)
  • Linux: Linux Ubuntu (64bit)
• Power:
  • Power Type_ DC-IN
  • Input Voltage_ 12V/2A
• Environment:
  • Operating Temperature_ 0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
  • Relative Humidity_ 95% @ 40°C (non-condensing)
• Certification: CE, FCC Class B
• Fanless: Yes
• Colour: Black
• Dimensions: 15.4 x 12.5 x 4 cm

WHAT'S IN THE BOX_

• Giada VM23 Intel Celeron compact Fanless Signage Player Black x1
• WiFi Antenna x1
• AC Power Adapter x1
• Power Cable x1
• User Manual x1

Lenght: 24
Width: 7
Height: 19
Colour: Black
Warranty: 24 Months
