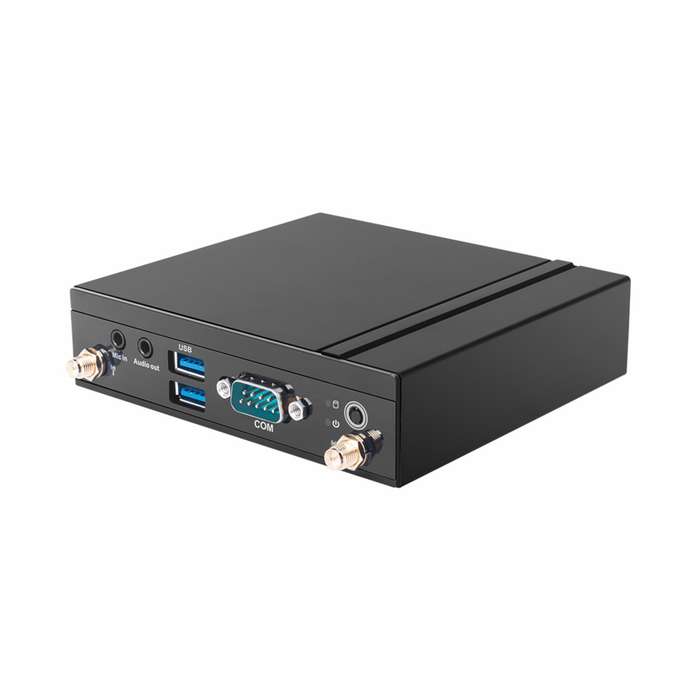

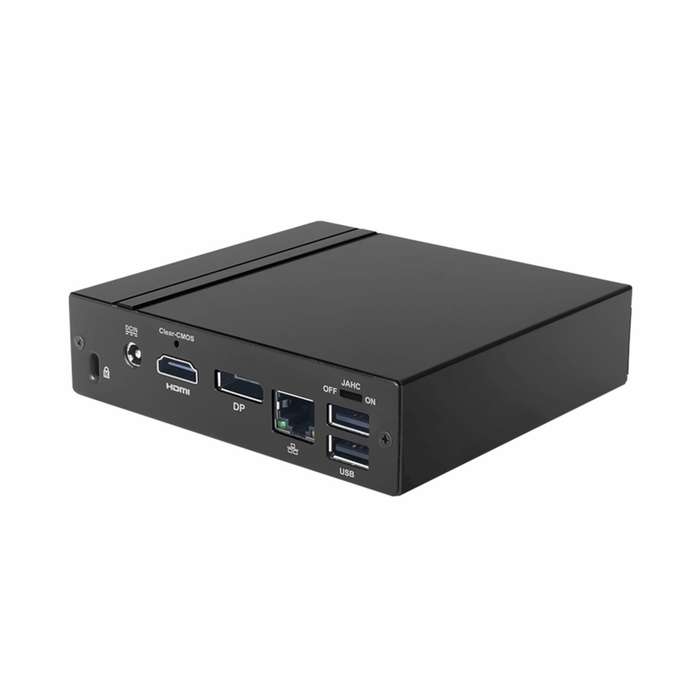

The Giada VM23 is a purpose-built compact digital signage media player engineered for high-reliability, energy-efficient performance in space-constrained environments. Powered by Intel® Apollo Lake Celeron® N3350/N3450 processors, this fanless player delivers consistent, low-power computing designed to meet the evolving needs of digital signage, kiosk, and thin client applications.
Designed for commercial deployments where silent operation and robust 24/7 performance are essential, the VM23 features a passive cooling system that enhances operational longevity and eliminates mechanical noise, making it ideal for use in retail, hospitality, education, and corporate display environments.
Despite its ultra-compact footprint, the VM23 supports dual independent displays via HDMI 1.4a and DisplayPort 1.2, enabling vivid 4K media playback and dynamic content delivery. Its support for up to 64GB of onboard eMMC storage and mSATA expansion through a full-size Mini-PCIe slot ensures deployment flexibility across diverse digital environments.
Engineered for seamless integration, this media player is compatible with both Windows 10 (64-bit) and Ubuntu Linux (64-bit), allowing for streamlined software deployment across platforms. Furthermore, its compliance with CE, FCC Class B, and UKCA certifications positions it as a trusted solution in mission-critical installations.
With its compact size, wide operating temperature range, and solid-state reliability, the Giada VM23 empowers integrators and solution providers to deliver cost-effective, scalable signage experiences with minimal maintenance.
FEATURES:
Fanless, ultra-compact design: Ideal for silent operation in space-constrained digital signage and embedded deployments
Dual display support: Simultaneously drives two independent 4K displays via HDMI 1.4a and DisplayPort 1.2
Energy-efficient Intel® Apollo Lake processors: Powered by Celeron® N3350 or N3450 with low 6W TDP for 24/7 stability
Flexible storage options: Integrated 32GB/64GB eMMC and Mini-PCIe slot supporting mSATA SSD expansion
Wide OS compatibility: Supports Windows 10 (64-bit) and Ubuntu Linux (64-bit) for flexible deployment
High reliability: Solid-state design with passive cooling ensures long-term durability and reduced failure risk
Industrial-grade construction: Robust housing and certified for CE, FCC Class B, and UKCA standards
Compact footprint: Measures only 116.6 mm x 107.4 mm x 30 mm for easy integration into kiosks, behind displays, or inside enclosures
High-performance graphics: Intel® HD Graphics 500 enables fluid 4K video playback and responsive content rendering
Low power consumption: Suitable for energy-conscious installations with minimal thermal output
SPECIFICATIONS:
CPU
Frequency: 2.40 GHz
Chipset: SoC
Processing Units: 2 Cores
TDP: 6W
Network
Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface: 1 x RJ45
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT
Mobile Network: NA
Display
GPU: Intel® HD Graphics 500
Graphic Engine: DirectX 12, OpenGL 4.3, OpenCL 2.0
Display Interface: 1 x DP (Max.4096 x 2304 @60 Hz), 1 x HDMI (Max.3840 x 2160 @30 Hz)
I/O interface
USB: 2 x USB3.2 Gen1, 2 x USB2.0
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Button: 1 x Power on, 1 x CLR-CMOS
Antenna: 2 x Connector for Wifi/BT
System
System Memory: 2 GB/4 GB, Onboard LPDDR4-2133 MHz
Storage: 32 GB/64 GB, Onboard eMMC, 1 x Full-size Mini-PCIe for MSATA
TPM: Optional: TPM2.0
Watchdog Timer: Yes
Auto Power On: Yes
RTC: Set up independently every day, a week as a cycle
Power Requirement: DC-IN, 12 V/2.0 A
Operating System: Windows 10 (64bit) /Linux Ubuntu (64bit)
Operating Temperature: 0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
Humidity 95% @ 40°C (non-condensing)
Construction: Metal, Black
Dimensions: 11.66 x 10.74 x 0.30 cm
Certifications: CE, FCC Class B, UKCA
WHAT'S IN THE BOX:
Giada VM23 4GB 64GB Media Player Fanless 4K Digital Signage Solution
